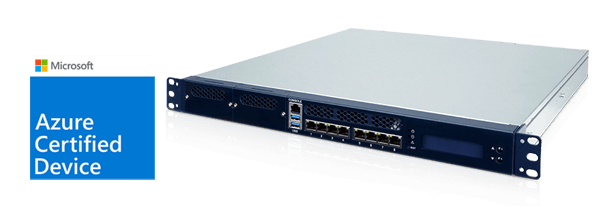

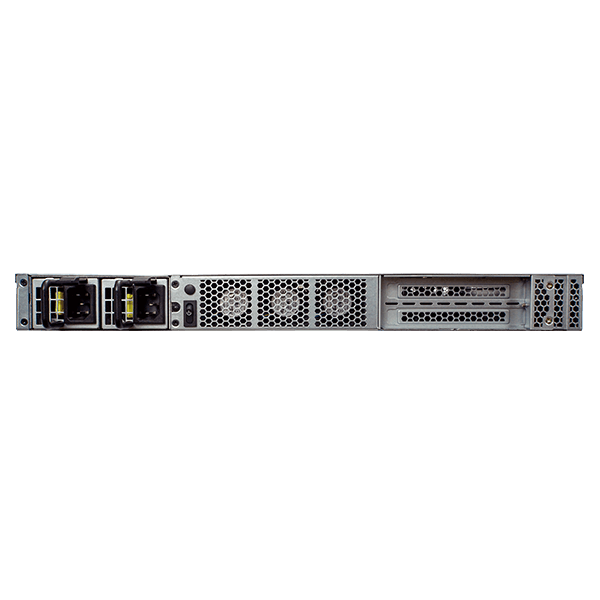

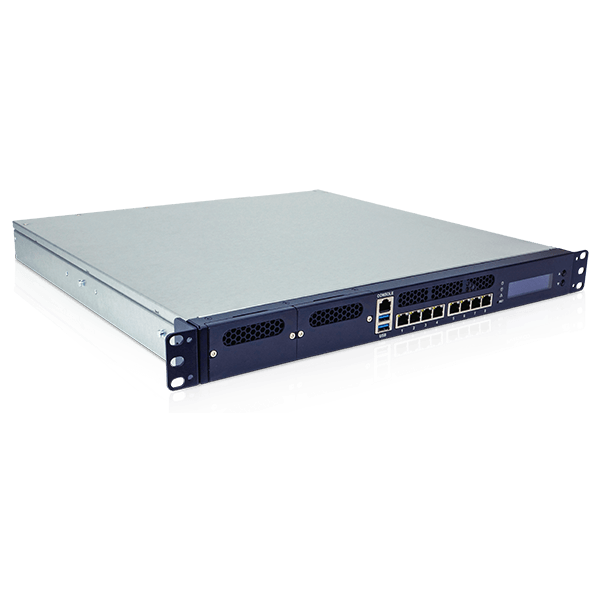

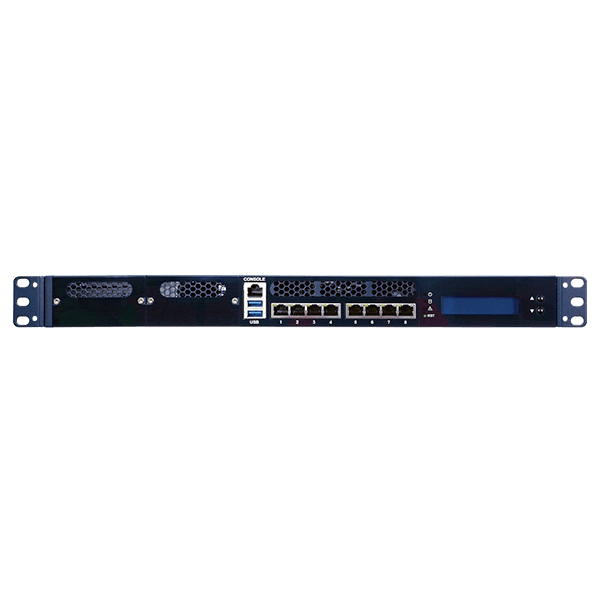

PUZZLE-IN001

1U 机架安装网络设备,采用 Intel® Xeon® E, 第八代 Intel® Core™/Pentium®/Celeron® 处理器, 最多 2 NMS 和 2 PCIe 插槽

  • Overview

    ● Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor
    ● Support 8 x GbE RJ45 via Intel® I211, and two IEI Network Module
    ● 2 x 288-pin Long DIMM, DDR4 2100MHz ECC & non ECC, up to 32GB
    ● 1 x RJ45 Console, 2 x USB 3.0, LCM
    ● 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.0), 1 x PCIe mini
    ● Support open source software, such as pfSense® and OPNsense®.
    ● Support PCIe x4 and PCIe x8 slot
    ● Redundant PSUs
  • Features

    puzzle network appliance banner

    Overview

    IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).

    puzzle network appliance uCPE

    PUZZLE Series Ecosystem

    PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.

    network ecosystem




    Smart NIC Option

    Smart NIC is not only increases the performance of system but also provides special functions like virtualization technology and packet processing. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.

    PulM-1G4T-I211

    PulM-1G4T-I211
    > NIC Brand: Intel®
    > Form Factor Interface: Quad ports 1GbE RJ-45 2 pairs bypass
    > Description: 4 x PCIe 3.0 x2

    PulM-10G4SF-XL710

    PulM-10G4SF-XL710
    > NIC Brand: Intel®
    > Form Factor Interface: Quad ports 10GbE SFP+
    > PCIe 3.0 x8

    PulM-25G2SF-MLX NIC

    PulM-25G2SF-MLX
    > NIC Brand: Mellanox®
    > 2 ports 25 GbE SFP28 connector
    > Description: PCIe 3.0 x8

    PulM-10G4SF-MLX network interface controller

    PulM-10G4SF-MLX
    > NIC Brand: Mellanox®
    > 4 ports 10 GbE SFP+ connector
    > 2 PCIe 3.0 x4

    PulM-10G4T-AQC107 NIC

    PulM-10G4T-AQC107
    > NIC Brand: Aquantia®
    > 4 ports 10G BASE-T connector
    > 4 x PCIe 2.0 x2

    PulM-1G8T-BCM5720 NIC

    PulM-1G8T-BCM5720
    > NIC Brand: Broadcom®
    > 8 ports RJ-45 connector
    > 4 x PCIe 2.0 x2

    PulM-10G4SF-XL710-BP NIC

    PulM-10G4SF-XL710-BP
    > NIC Brand: Intel®
    > Quad ports 10GbE SFP+
    > PCIe 3.0 x8

    PulM-1G4T-I211-BP NIC

    PulM-1G4T-I211-BP
    > Intel®
    > Quad ports 1GbE RJ-45
    > 4 x PCIe 3.0 x2


    Applications

    Next Generation Firewall (NGFW)

    Next Generation Firewall (NGFW)

    Wireless Gateway

    Wireless Gateway

    WAN Optimization

    WAN Optimization

    Next Generation Firewall (NGFW)

    Unified Threat Management (UTM)

    Wireless Gateway

    Intrusion Detection System (IDS)

    WAN Optimization

    Application Delivery Controller


    AI Ready Solution

    PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

    AI ready network appliance
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU Intel® Gen8 Xeon® E-2136 processor
      Intel® Gen8 Core™ i3-8100T processor
      Chipset Inte® C246
      Memory 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
      Memory Max. up to 32 GB
      Cooling method / System Fan 4 x Cooling Fans with Smart Fan
      Physical Characteristics
      Rack Height 1U
      Dimensions (LxWxH) (mm) 426x430x44.2
      Net Weight 7 kg
      Storage
      Storage 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
      1 x M.2(NGFF) 3042/2260 M.2 B key (SATA 3.0 / USB 3.2 Gen1)
      Support SATA SSD and 4G LTE module
      I/O Interface
      Ethernet 8 x LAN GbE RJ45 (Inteli211-AT)
      I/O Interface 1 x External RS-232 Console
      2 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 Pin header
      Expansion 1 x PCIe x8
      1 x PCIe x4
      1 x PCIe mini Card Slot PCIe 3.0 & SATA 3.0, USB 2.0
      Other Features
      TPM 1 x TPM 2.0 Pin header
      Power
      Power Supply 300W, 100V~240V (Redundant power)
      Environment
      Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
      Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
      Humidity 5% ~ 90% non-condensing
      Certifications
      Safety & EMC CE / FCC
      OS Support
      OS Support Linux Ubuntu 18.04.04
      CentOS 7/ Red Hat/Fedora EPEL
      Microsoft Windows 10
    • Ordering Info.

      Item No. Description
      PUZZLE-IN001-i3T/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-i3T/16G/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 16GB DDR4, two 256GB SSD, and eight 1GbE, two PulM slots, two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-XE/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-XE/16G/R-R11 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, 16GB DDR4, two 256GB SSD, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
      PUZZLE-IN001-R-R11
      * A CPU heatsink must be purchased separately
      1U Rackmount Network Appliance support Intel® Gen8 Xeon®E3,  Core™  i3, Pentium® or Celeron® processor, two DDR4 slots, and eight 1GbE , two PulM slots, two PCIe expansion, Redundant Power, RoHS
    • Package Contents

      • .2 x Power cord

      • .2 x Rack mounting ears

      • .6 x Screws for rack mounting ears

      • .USB to console cable (Option)

      • .RS-232 to console cable (Option)

      • .Slide rail (Option)

      • .CPU Heatsink (TDP:80W) (Option)

      • .CPU Heatsink (TDP:35W) (Option)

      • .HDMI cable (Option)
