PulM-1G4T-I211

Intel® Ethernet Controller I211 based Network Interface Card with 4 x GbE RJ-45 by 4 PCIe 2.0 x2 Interface *with by pass funtion (by sku).

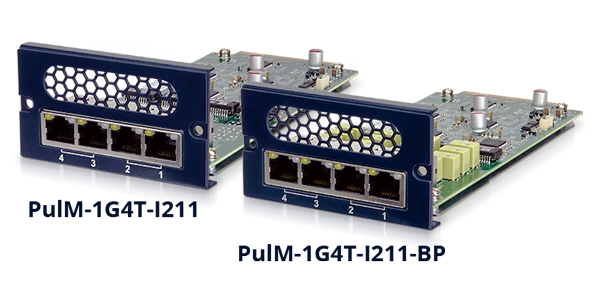

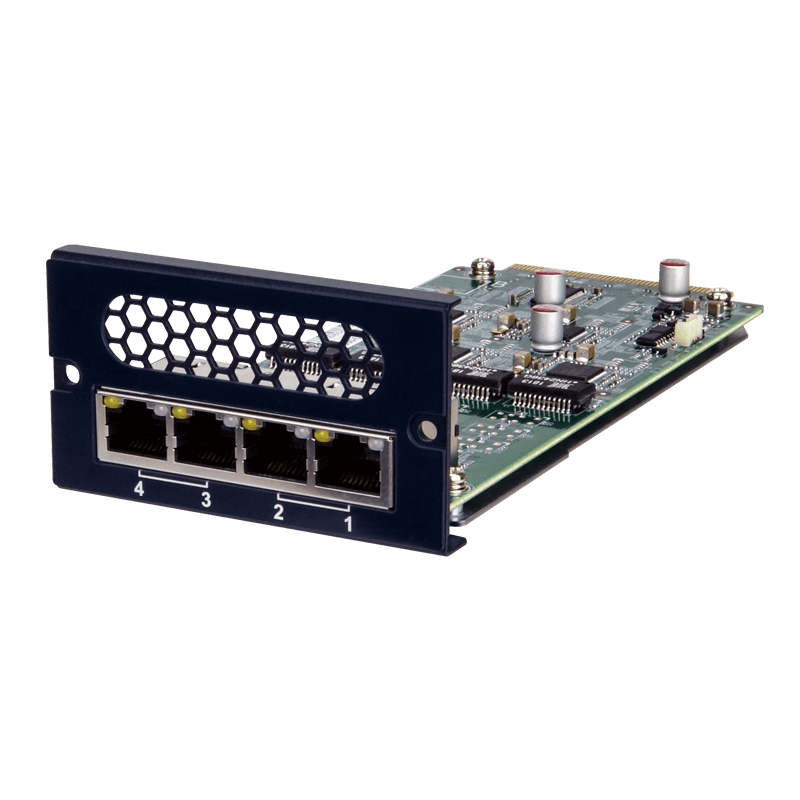

Pulm-1G4T-I211 network interface card

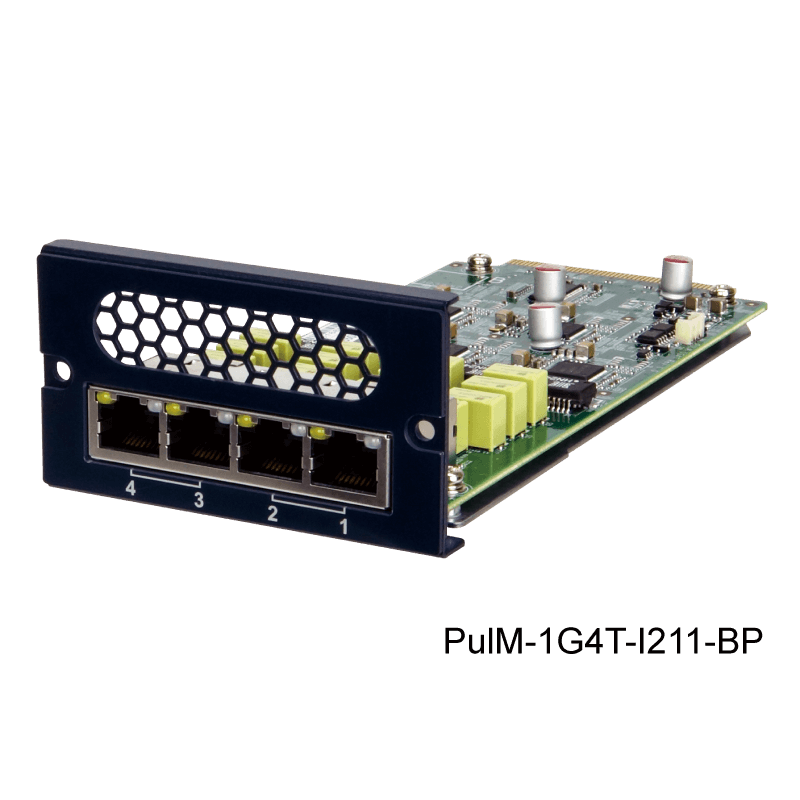

Pulm-1G4T-I211-BP network interface card
  • Pulm-1G4T-I211 network interface card
  • Pulm-1G4T-I211-BP network interface card
• 1 x Intel® Ethernet Controller I211-AT
• 4 ports RJ-45 connector
• LAN Bypass (by sku)
• 4 x PCIe 2.0 x 2
• RoHS compliant

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 4 x LAN (RJ-45)
Falt-tolerance
LAN Bypass Yes (by sku)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe 4 PCIe 2.0 x2
Card Features
Speed 1 GbE
Controller Chip Intel® Ethernet Controller I211-AT

Ordering Information

PulM-1G4T-I211-R10 Intel® Ethernet Controller I211 based Network Interface Card with 4 x 1GbE RJ-45 w/o by pass 4 PCIe 2.0 x 2 Interface.
PulM-1G4T-I211-BP-R10 Intel® Ethernet Controller I211 based Network Interface Card with 4 x 1GbE RJ-45 4 PCIe 2.0 x 2 Interface with by pass funtion.

Package Contents

Package Content
  • 1 x PulM-1G4T-I211 module

  • 1 x L-shaped T10 Plum Wrench

  • 1 x QIG
