PUZZLE-IN001A

1U Rackmount Network Appliance with Intel® Xeon® E and 8th & 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, two PulM module slots and two PCIe slots

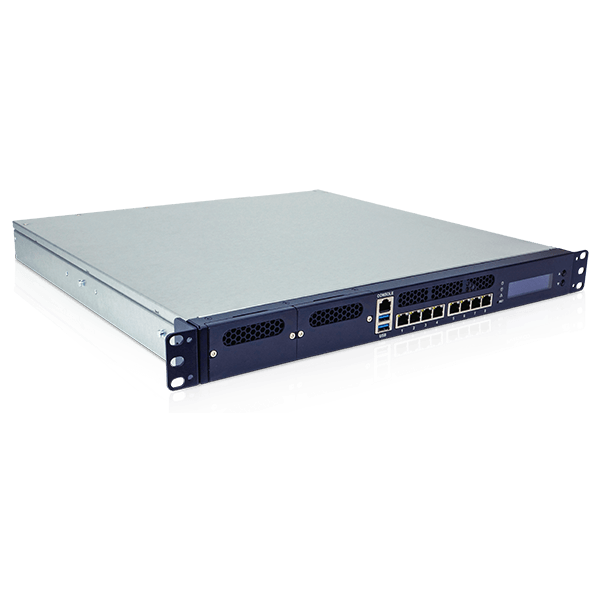

PUZZLE-IN001A Network Appliance

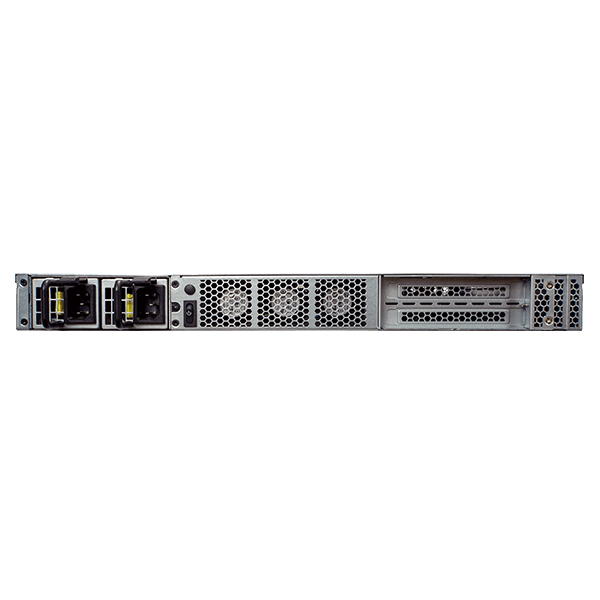

PUZZLE-IN001A Network Appliance

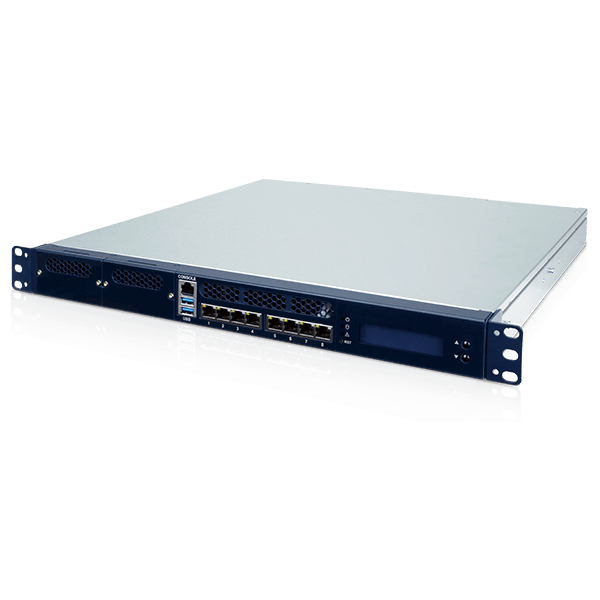

PUZZLE-IN001A Network Appliance

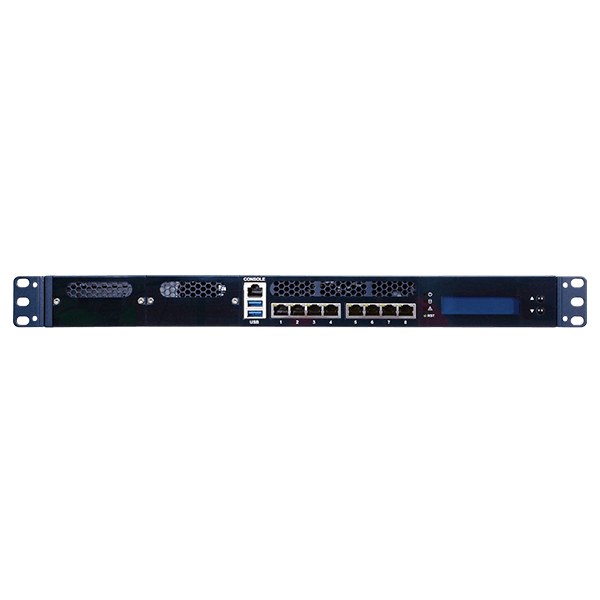

  • PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
  • PUZZLE-IN001A Network Appliance
» Intel® Xeon® E, 8th & 9th Generation Intel® Core™/Pentium®/Celeron® processor
» 8 x 5 GbE RJ-45 via AQC 111C
» 4 x 288-pin DIMM, DDR4 2400MHz ECC & non ECC, up to 64 GB
» 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s)
» 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini
» Support PCIe x4, PCIe x8 slot and two PulM module slots
» Redundant PSUs

Hardware Spec.

尺寸类型
尺寸类型 1U
系统
CPU Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
芯片组 Intel® C246
内存 4 x DDR4 2400MHz ECC/Non-ECC UDIMM
内存最大值 Up to 64GB
散热方案/系统风扇 4 x Cooling fans with smart fan
物理特性
尺寸 (LxWxH) (mm) 426x430x44.2
存储
存储 2 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
I/O 接口
网络 8 x LAN : 8 x 5GbE RJ-45 LAN ports (AQC111C)
I/O接口 2 x External USB 3.2 Gen1x1 : Gen 1 (5Gb/s)
4 x Internal USB 2.0 : USB 2.0 (pin header)
扩展 1 x PCIe x8
1 x PCIe x4
1 x PCIe mini Card Slot (PCIe 3.0 & SATA 3.0, USB 2.0)
1 x M.2(NGFF) B key 2260/2280 (SATA & USB 3.0)
电源
电源供电 300W, 100V~240V (Redundant power)
环境
操作温度 0°C ~ 40°C (32°F ~ 104°F)
存储温度 -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
认证
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN001A-i3T/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Core™ i3-8100T processor, two DDR4 slots, eight 5GbE , two PulM & two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001A-XE/R-R10 1U Rackmount Network Appliance with Intel® Gen 8 Xeon® E-2136 processor, two DDR4 slots, eight 5GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001A-R-R10 1U Rackmount Network Appliance support Intel® Gen 8 Xeon® E3, Core™ i3, Pentium® or Celeron® processor, two DDR4 slots, eight 5GbE , two PulM, two PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content
  • .2 x Power cord

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)

  • .Slide rail (Option)
