IDD-936160

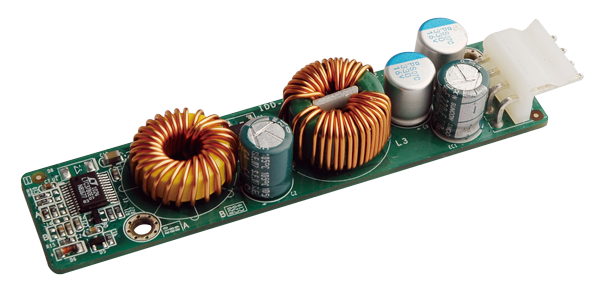

60 W DC/DC Converter Module

» Wide input range: 9-36 VDC
» 12 VDC output up to 5 Amp
» Compact size
» Efficiency up to 95%
» RoHS compliant

Specifications

Hardware Spec.

General
Dimensions 82 x 25
Efficiency 95%
Operating temperature -40ºC ~ 85ºC
Watt 60W
Input
Voltage 9 VDC to 36 VDC
Output
Voltage 12 V@5 A

Ordering Information

IDD-936160-R20 60W DC/DC 9~36V input 12V output
