FLEX-BX210-Q470

2U模块化电脑支持第10、11代 LGA1200 Intel® Core™ i7/i5/i3, Pentium® 处理器

FLEX-BX210-Q470 2U AI-powered Embedded System
FLEX-BX210-Q470 2U AI-powered Embedded System
  • FLEX-BX210-Q470 2U AI-powered Embedded System
  • FLEX-BX210-Q470 2U AI-powered Embedded System
» 支持CPUs:
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
» 四个支持 RAID 0/1/5/10 的热插拔 HDD/SSD 托架
» 配备 PCIe 3.0 x4 插槽和 PCIe 3.0 x8 插槽
» M.2 2280 PCIe Gen 3 x4 支持NVMe
» 支持IEI Mustang系列加速卡

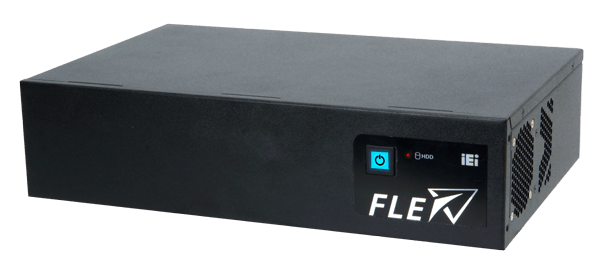

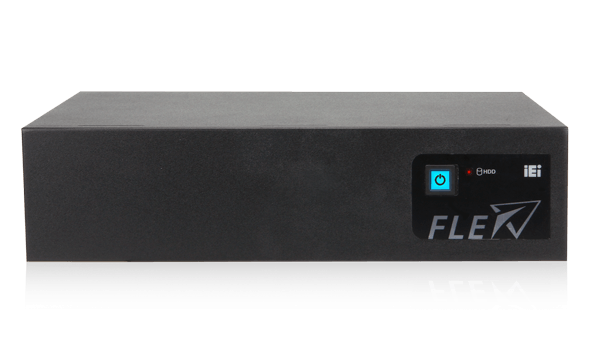

front view and rear view of FLEX-BX210 2U rackmount computer with blue background

FLEX-BX210-Q470

2U AI 边缘推理计算机,多达 4 个半高扩展槽

FLEX-BX210 是一款采用最新处理技术设计的 2U 机架式电脑,支持高达 10 内核、20 线核 i9 CPU 和 16GB 双通道 DDR4。FLEX-BX210 配置了多个高端插槽连接 AI 加速卡,NVMe 存储 M.2 插槽,可以处理海量复杂数据,实现人脸识、车辆识别以及交通分析等 AI 功能。此外,还配备了四个 SSD 托架,提供 RAID 0、1、5 和 10 功能,确保数据的安全性和处理 AI 计算和边缘计算的性能效率。

Flexible expansion capability

灵活扩展

Industrial grade

工业级

High volume RAID

大容量 RAID

Intel patner titanium

FLEX-BX210-Q470

2U AI 边缘推理计算机,多达 4 个半高扩展槽

FLEX-BX210 是一款采用最新处理技术设计的 2U 机架式电脑,支持高达 10 内核、20 线核 i9 CPU 和 16GB 双通道 DDR4。FLEX-BX210 配置了多个高端插槽连接 AI 加速卡,NVMe 存储 M.2 插槽,可以处理海量复杂数据,实现人脸识、车辆识别以及交通分析等 AI 功能。此外,还配备了四个 SSD 托架,提供 RAID 0、1、5 和 10 功能,确保数据的安全性和处理 AI 计算和边缘计算的性能效率。

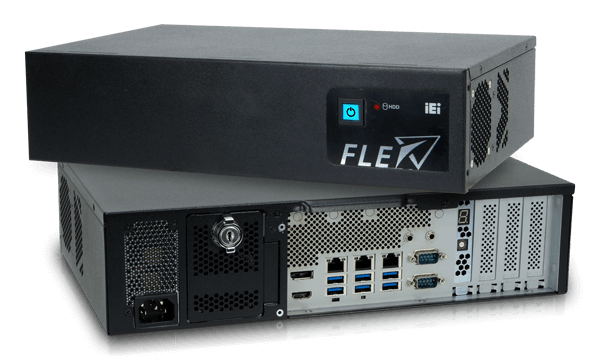

front view and rear view of FLEX-BX210 2U rackmount computer with blue background
FLEX-BX210 2U rackmount computer front view and rear view
Flexible expansion capability

Flexible expansion capability

Industrial grade

Industrial grade

High volume RAID

High volume RAID

Intel patner titanium

DDR4-2933 高达 10 个核心 4.5GHz

FLEX-BX210 搭载第 10 代 Intel® 酷睿处理器(4 核至 10 核),预装高达 16GB 的 DDR4-2933 双通道内存。与前代产品相比,FLEX-BX210 的整数多任务计算性能提高了 50%,能够提供快速整合各种工作负载所需的性能。

Intel Core i7 Core i9 Core i5 Core i3 processor logo

平均 CPU 分数

能够通过 4 个半高PCIe Gen3 扩展插槽进行扩展

FLEX 系列支持多个 PCI Express 插槽,包括两个 PCIe x8 插槽和两个 PCIe x4 插槽。FLEX 系列的四个扩展插槽均支持 PCIe Gen3,与 PCIe Gen2 相比,每通道的速度从 500MB/s 提高到 1GB/s。这些高速 PCIe Gen3 插槽与如下标准薄型外设卡兼容:

  • 网卡:10GbE 卡或光纤网卡
  • I/O 卡:串口卡、USB 卡或 LAN 卡
  • AI 加速卡:VPU 卡、FPGA 或 GPU 卡
  • 无线网卡:Wi-Fi 卡或移动无线网卡 card
  • 存储卡
4 PCIe Gen3 Expansion Slots installing into FLEX-BX210 with 2U height

注:适用于 FLEX 系列的加速卡最大尺寸为 167.65 mm(长)X 68.9 mm(高)。

AI 完备解决方案加速你的 AI 计划落地

FLEX-BX210 是一款 AI 硬件完备系统,是深度学习推理计算的理想选择,可帮助您更快、更深入地了解客户和业务。IEI FLEX-BX210 支持 Mustang 加速器和下那颗,并提供额外的计算能力和端到端解决方案,帮助您更高效地运行任务,更快部署解决方案。

RAID 存储安全可靠
为数据处理保驾护航

FLEX 系列配置四个 SATA 6Gb/s 托架,托架连接 SATA 6Gb/s 接口,可扩展存储容量并实现快速数据传输。搭载的英特尔 Q470 芯片组提供可靠的高性能硬件 RAID 保护,可以备份媒体和重要信息。可以通过不同的 RAID 级别(RAID 0、1、5 和 10)进行配置,提高性能和/或提供自动保护,防止因驱动器故障而导致数据丢失。

Four 2.5-inch SSD/HDD installing into FLEX-BX210 embedded system
Icon of RAID 0 drives configuration Disk 0 and Disk1
Icon of RAID 1 drives configuration Disk 0 and Disk2
Icon of RAID 5 drives configuration Disk 0, Disk1, Disk2, Disk3
Icon of RAID 10 drives configuration Disk 0, Disk1, Disk2, Disk3
特点 RAID 0 RAID 1 RAID 5 RAID 10
最低
# 驱动数
2 2 3 4
数据
保护
No 单驱动
故障
单驱动
故障
每个子阵列中最多有一个驱动发生故障
产能利用率
产能利用率
100% 50% 67%-94% 50%
典型
应用
高端工作站,数据记录,实时渲染,非常短暂的数据 操作系统,事务数据库 数据仓库、Web 服务、存档 快速数据库、应用服务器

M.2 M-key for PCIe Gen3 NVMe SSD

NVMe SSD 安装在系统能够确保安全,防止盗窃和因意外拔出存储而导致的操作系统崩溃。FLEX-BX210 配有一个 M.2 M-Key 插槽,可提供高传输速度和存储可靠性。兼容 PCIe x4 M.2 2280 NVMe SSD 与 32Gb/s 传输速率。

  • • NVMe 降低延迟
  • • 提供更高的每秒输入/输出(IOPS)
Bar graph of PCI Express 2.0 and 3.0 lane bandwidth comparison

设计坚固耐用,兼容各种工业应用

-10—50°C宽温工作范围和高效散热设计

工作负荷较大的 AI 系统会产生较高的热量和噪音。主要热源通常来自 CPU、PSU 和外设卡。FLEX-BX210 采用独特的通风设计,系统运行温度最低可达-10°C,最高可达 50°C。传统的 IPC 通常由于多个风扇(系统风扇/CPU 风扇/PSU 风扇)和电缆引起的湍流而导致气流不足。IEI FLEX 系列配有一个 CPU 风扇和三个系统冷却风扇,采用最佳散热方案设计,可为 CPU、PSU 和外设卡维持较低的内部机箱温度,从而提高系统可靠性。

FLEX-BX210 2 box computer with airflow lines showing how heat is dissipated through the three system fans

智能风扇运行

用户可以在 BIOS 中定义 CPU 风扇和系统风扇速度和温度配置文件。当系统处于空闲状态或运行要求不高的任务时,智能风扇能够降低旋转风扇产生的噪音。这一功能不仅使 FLEX 系列能够安静运行,还延长了风扇的使用寿命,增强了系统的耐用性。

FLEX 系列:

通过风扇速度和温度触发设置,FLEX 系列的风扇速度可以根据温度读数无缝更改

传统系统:

传统的系统风扇运行通过系统的开(风扇全速)和关状态来检测

verification mark of MIL-STD-810G vibration test

FLEX-BX210 已通过 MIL-STD-810G 军用振动标准。四个 SSD 插槽在内部牢固地固定在印刷电路板上,以防止数据丢失和磁盘崩溃。

运行随机振动模式
(MIL-STD-810G)

坐标轴: 3 轴/垂直/横向/纵向。

10-500 赫兹,60 分钟/轴。

坐标轴:3 轴/垂直/横向/纵向。

有线和无线网络功能简化 IoT 部署

5G/4G、WLAN 和蓝牙

为实现 IoT 边缘部署,Flex-BX210 设计有强大的无线网络功能。可选 M.2 A-Key 模块支持 802.11ac 无线 LAN 和蓝牙 V5.1;M.2 B-Key 模块支持 5G/4G 连接。后面板预留了 Wi-Fi、5G/4G 或 GPS 的 SMA 天线接口。使用 SMA 天线可以确保安全的无线通信,增强信号覆盖范围,防止信号意外丢失,符合大多数工业应用需求。

三个 2.5GbE,应对带宽密集型应用

FLEX-BX210 配备三个 2.5GbE RJ-45 端口,满足 AI 和数据中心等高带宽应用的要求。使用两个操作技术(OT)LAN 和一个信息技术(IT)LAN 连接工业自动化现场设备,实现工业 4.0。

Icon
Icon
Icon
Icon
Icon
Icon

高效350W
80-Plus 金牌电源

FLEX 系列采用了 80+ 金牌电源,在电源转换过程中减少了功率损耗并提高了效率。搭载金牌认证电源,计算机在交流转直流过程中能够维持高达 87% 的效率,且功率损耗低于 13%。电源高效传递不仅减少用户成本还降低热损耗。更是助力构建绿色环保的好帮手。

Mark of 80-plus gold power supply with yellow background
Mark of 80-plus gold power supply with yellow background
Bar graph of 80-plus gold silver bronze power supply comparison

安装灵活性高

FLEX-BX210 可安装在机架、墙壁或桌面上,在大多数工业环境中能够快速部署。

FLEX-BX210 2U computer mounted on rack of control cabinet

机架式

2U 高度,便于快速安装在控制柜中。

FLEX-BX210 box computer mounted on a wall using two side brackets

机架式

为墙壁安装提供双向方向,允许将 I/O 向上或向下定向。

FLEX-BX210 embedded system with two side brackets is placed on desktop

桌面式

可以将 FLEX 轻松放置在桌子或书桌上的任何位置,并将其固定。

应用

智能 NVR/VMS 解决方案

The FLEX-BX210 is perfectly suited for deployment at most edge sites, for example, a traffic junction, telecommunication cabinet or security room. The FLEX-BX210 provides a variety of mounting options that allow it to also fit into existing sites. It has four PCIe slots supporting half-height and half-length (HHHL) cards such as GPUs, FPGAs, and VPUs. End users could deploy AI into the existing NVR (Network Video Recorders) or VMS (Video Management System), and implement AI-enabled video analytics at the edge to take immediate actions to extract the most relevant information for making real-time business decisions

FLEX-BX210 as AI edge server in VMS solution for AV streaming or Live streaming of recorded data

生产线上的缺陷检测

During the manufacturing process, defects could be introduced and harmful to the quality. It is necessary to appropriately classify the defects detected by AOI machine especially killer defects. The higher accuracy in visual inspection, the less cost spent on review and repair station.

FLEX-BX210 as AI inference system used for defect detection in production line to help generate AI report

计算机视觉
在农业分级中的应用

依据农产品外观进行评估。颜色表示成熟度、缺陷等参数。不同的评级人员往往会给出不同的质量评价。面对这些问题,机器视觉给出了完美的解决方案。专为机器视觉市场设计的 FLEX 系列配置四个 PCIe Gen3 扩展槽,用于安装运动控制器卡、GP GPU 卡和 IEI 开发的 PoE 以太网卡。IEI PoE 卡配置符合 IEEE 802.3at 的高达 6 GbE 以太网供电(Poe)端口,可直接连接到闭路电视摄像头,无需单独供电。

FLEX-BX210 together with GPOE-4P PoE cards used in computer vision application for Grading in Agriculture

Intelligent
NVR/VMS Solutions

Defect Detection
in Production Line

Computer Vision for
Grading in Agriculture

The FLEX-BX210 is perfectly suited for deployment at most edge sites, for example, a traffic junction, telecommunication cabinet or security room. The FLEX-BX210 provides a variety of mounting options that allow it to also fit into existing sites. It has four PCIe slots supporting half-height and half-length (HHHL) cards such as GPUs, FPGAs, and VPUs. End users could deploy AI into the existing NVR (Network Video Recorders) or VMS (Video Management System), and implement AI-enabled video analytics at the edge to take immediate actions to extract the most relevant information for making real-time business decisions

FLEX-BX210 as AI edge server in VMS solution for AV streaming or Live streaming of recorded data

During the manufacturing process, defects could be introduced and harmful to the quality. It is necessary to appropriately classify the defects detected by AOI machine especially killer defects. The higher accuracy in visual inspection, the less cost spent on review and repair station.

FLEX-BX210 as AI inference system used for defect detection in production line to help generate AI report

Agricultural products are valued by their appearance. The color indicates parameters like ripeness, defects, etc. The quality decisions vary among the graders and often inconsistent. Machine vision technology offers the solution for all these problems. The FLEX series designed for machine vision market has four PCIe Gen3 expansion slots for installing motion controller cards, GP GPU cards and the IEI-developed PoE Ethernet card. IEI PoE cards provide up to 6 GbE Power over Ethernet (PoE) ports compliant with IEEE 802.3at for direct connection to CCTV cameras without needing separate power.

FLEX-BX210 together with GPOE-4P PoE cards used in computer vision application for Grading in Agriculture

系统概述

  • 01. 带电源指示灯的电源按钮
  • 02. HDD 状态指示灯
  • 03. 直流接口
  • 04. 4 x 2.5” HDD
  • 05. Antenna knockouts
  • 06. Antenna knockouts
  • 07. DisplayPort
  • 08. HDMI™
  • 09. 3 x GbE LAN
  • 10. Audio line-out
  • 11. Audio mic-in
  • 12. 6 x USB 3.2 Gen 1
  • 13. 2 x RS-232
  • 14. AT/ATX switch
  • 15. Reset button
  • 16. 2 x PCIe 3.0 x8 (x16 slot)
    2 x PCIe 3.0 x4 (x4 slot)

系统概述

  • 01. 带电源指示灯的电源按钮
  • 02. HDD 状态指示灯
  • 03. AC 直流接口
  • 04. 4 x 2.5” HDD
  • 05. Antenna knockouts
  • 06. Antenna knockouts
  • 07. DisplayPort
  • 08. HDMI™
  • 09. 3 x GbE LAN
  • 10. Audio line-out
  • 11. Audio mic-in
  • 12. 6 x USB 3.2 Gen 1
  • 13. 2 x RS-232
  • 14. AT/ATX switch
  • 15. 复位按钮
  • 16. 2 x PCIe 3.0 x8 (x16 slot)
    2 x PCIe 3.0 x4 (x4 slot)

Hardware Spec.

Form factor
SBC Form Factor CPU:
10/11 th Gen Intel® Core™ CPU 35/65W
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
芯片组:
Q470/Q470E
系统内存:
2 x 288-pin 2933/2666 MHz dual-channel DDR4 unbuffered DIMM (支持多达到64GB)
电源:
ATX 电源,交流输入
350W电源
I/O Interface
I/O Ports USB:
6 x USB 3.2 Gen 1
网络:
3 x 2.5GbE LAN
串口:
2 x RS-232
显示:
1 x HDMI™
1 x DP
声卡:
1 x Line out
1 x Mic in
TPM:
支持 Intel PTT
看门狗定时器:
可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots M.2:
1 x M.2 B-Key 3042/52插槽
(带SIM卡槽,支持 5G/LTE; 支持PCIe 3.0 x1 & USB 3.2 Gen 1)
1 x M.2 M-Key 2280插槽 (支持PCle 3.0 x4)
1 x M.2 A-Key 2230 (支持PCIe 3.0 x1 & USB 2.0)
扩展插槽:
2 x PCle 3.0 x8
2 x PCle 3.0 x4
System
Cooling method / System Fan 3 x 系统风扇, 1 x CPU风扇
Drive Bays 4个热插拔 2.5" HDD/SSD SATA 6Gb/s 托架 (支持RAID 0/1/5/10), 带LED指示灯
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯 (蓝色)
1 x 硬盘灯
Physical Characteristics
Construction 金属
Color
Color 黑色
Dimensions
Dimensions 357 x 230 x 88
Weight
Weight 4.1 kg/7.2 kg
Environment
Operating Temperature -10°C ~ 50°C
Humidity 5% ~ 95%, 无冷凝
Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17 ~ 640Hz 1.5G acceleration peak to peak
Operating Shock 10G acceleration part to part (11ms)
Safety & EMC 符合CE/FCC认证
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

FLEX-BX210-Q470-i9D-R20 2U Modular box PC, Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i7D-R20 2U Modular box PC, Intel® 10th Generation Core™ i7-10700TE 2.0GHz (up to 4.4GHz, 8-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i5C-R20 2U Modular box PC, Intel® 10th Generation Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i3C-R20 2U Modular box PC, Intel® 10th Generation Core™ i3-10320 3.8GHz (up to 4.6GHz, 4-core, TDP 65W), 8GB DDR4 pre-installed memory,TPM 2.0, 350W PSU,R20
FLEX-BX210-Q470/35-R20 Barebone, 2U AI Modular BOX PC, Intel® COMET Lake, Q470 chipset, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, w/o CPU, 350W PSU, R20

Package Contents

Package Content
  • 1 x 壁挂支架

  • 1 x 电源线
