Mini-ITX SBC 支持 Intel® Elkhart Lake Celeron® 板载 SoC,默认板载 8GB LPDDR4x 内存,带 HDMI™、DP 和 iDPM 的三重独显,SATA 6Gb/s,双 2.5GbE 网口,USB 3.2,M.2,12V 直流输入,RoHS

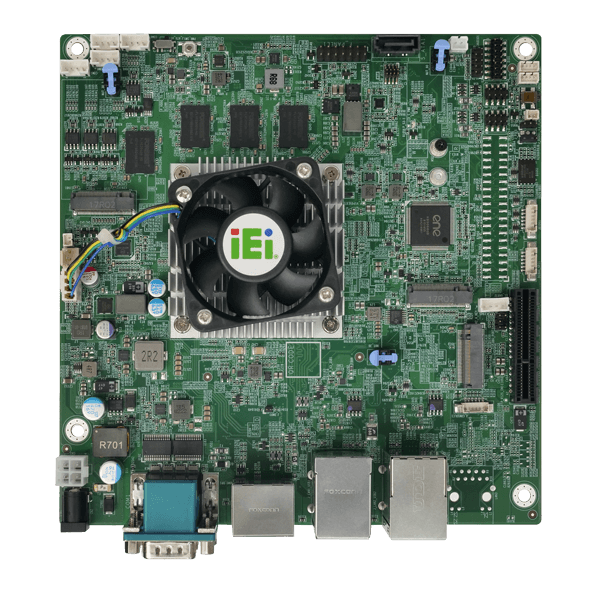

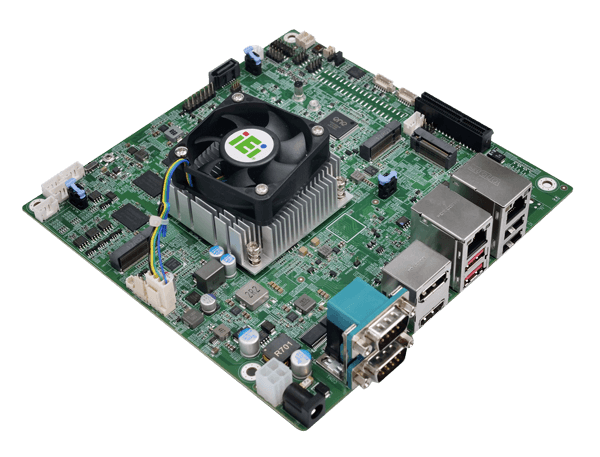

KINO-EHL-J6412 mini-itx motherboard
KINO-EHL-J6412 mini-itx motherboard
  • KINO-EHL-J6412 mini-itx motherboard
  • KINO-EHL-J6412 mini-itx motherboard
1. 工业 Intel® Elkhart Lake Celeron® J6412 Mini-ITX 主板
2. 支持 HDMI™, DP, iDPM 独立三显
3. 支持两个 Intel® i225V 2.5GbE 网络
4. 支持一个 PCIe Gen3 x4, M.2 A key and M.2 B key 扩展
5. 支持两个 USB 3.2 Gen2, 六个 USB 2.0, 两个RS-232, 四个RS-422/485

Low-power Mini-ITX Motherboard for IoT Edge Computing

The KINO-EHL Mini-ITX motherboard features reliable performance, advanced network connectivity and rich I/O capabilities in a compact board that fits small chassis size for space-critical in stallation like kiosk, POS or digital signage. The motherboard supports up to 3 display outputs, 8 USB ports and 6 COM ports for a wide range of peripheral connections. Dual 2.5GbE and 5G & Wi-Fi expandability are available to provide high-bandwidth data transmission. Its flexible customization options and low power advantages make it the ideal choice for IoT edge applications, which require economic solution with high scalability and reliability.

iDPM supports eDP to eDP/LVDS/VGA Module

4 x RS-422/485

SATA 6Gb/s

iAUDIO for
IEI AC-KIT-888S Audio Module

12-bit DIO/GPIO

SMBus & I2C

M.2 B key
with SIM slot

PCIe x4 slot with x1 signal

M.2 A key (2230)


2 x 2.5GbE via Intel I225V

12V DC input

2 x RS-232


2 x USB 3.2 Gen 2 (10Gb/s)

2 x USB 2.0

  • 1
    4 x RS-422/485
  • 2
    iDPM supports eDP to eDP/LVDS/VGA Module
  • 3
    SATA 6Gb/s
  • 4
    iAUDIO for IEI AC-KIT-888S Audio Module
  • 5
    12-bit DIO/GPIO
  • 6
    SMBus & I2C
  • 7
    M.2 B key (3052/3042/2242/2280) with SIM slot
  • 8
    PCIe x4 slot with x1 signal
  • 9
    M.2 A key (2230)
  • 7
    M.2 B key (3052/3042/2242/2280) with SIM slot
  • 10
    12V DC input
  • 11
    2 x RS-232
  • 12
  • 13
  • 14
    2 x 2.5GbE via Intel I225V
  • 15
    2 x USB 3.2 Gen 2 (10Gb/s)
  • 16
    2 x USB 2.0

High Performance with Low Power

Powered by Intel® Celeron® J6412 processor and 8GB on-board LPDDR4X, the KINO-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets a 75% higher score in CPU benchmark. With the feature of low power and excellent throughput, the KINO-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.

CPU Benchmark Source:

Long-term Support

Intel® Celeron® J6412 processor is available and supported for an extended period (based on Intel IOTG Roadmap). This long-term availability can benefit integrators who are looking to maximize their return on investment.

8GB On-board RAM

Stability is a necessity in applications where vibration is present. The 8GB LPDDR4X memory soldered on board enables the Mini-ITX motherboard to deliver much more stable, solid operation compared to the socket-type memory.

2.5GbE High-Bandwidth and Low-Latency Data Transmission

The two RJ45 LAN ports both provide 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of massive IoT devices or sensors to deliver lightning-fast transmission speed between devices.


5G & Wi-Fi Expandability

Wireless solution support is made through the two M.2 slots. The B-key slot comes with a SIM slot to support 5G modules. The A-key slot is designed to support Wi-Fi/Bluetooth network cards.

5G & Wi-Fi Expandability

Wireless solution support is made through the two M.2 slots. The B-key slot comes with a SIM slot to support 5G modules. The A-key slot is designed to support Wi-Fi/Bluetooth network cards.

Drive AIoT, 4K Graphics Applications at the Edge

The KINO-EHL supports triple independent display via DisplayPort 1.4, HDMI™ 1.4 and IEI iDPM interface. The iDPM interface supports diverse display modules, enabling users to add LVDS, eDP or VGA display interface upon requirements. Up to 4K@60 high-resolution support provides great benefits for applications that demand on-image resolution and color realism at the edge.

iDPM Modules





eDP to LVDS converter


eDP to eDP converter


eDP to VGA converter

First slide Second slide Third slide Third slide

M.2 B Key Slot for Cards in Different Sizes

In addition to offering wireless network connection, the M.2 B key socket on the KINO-EHL supports NVMe SSD, AI accelerators and many more M.2 cards for stable storage configurations and scalable AI capability. The B-key slot can take different module sizes to make it more compatible with most M.2 module in the market. This includes module widths of 22 and 30 mm, and lengths of 42, 52 and 80 mm.

Tool-less M.2 Installation

The two M.2 slots both contain a quick-release retainer, allowing tool-less installation and removal of an M.2 module. With just a simple press of the retainer, the module can be securely seated into the slot or be released.

PCIe Gen3 Slot Allows More Functionality & Possibility

The Mini-ITX motherboard is equipped with a PCI Express Gen3 expansion slot providing easy integration of PoE, video capture or I/O cards with a compatible riser card. With twice the bandwidth of PCIe Gen2, the KINO-EHL can take advantage of PCIe cards to expand AIoT application potential.



I/O Cards


4-port Power over Ethernet card


2-port Power over Ethernet card

I/O Cards

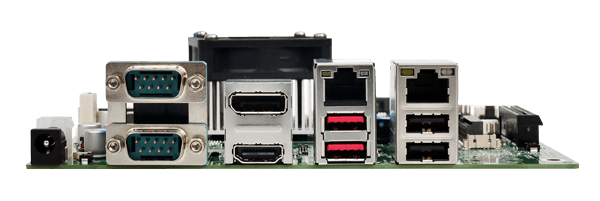

Compact yet Versatile Connectivity

The KINO-EHL provides rich I/O capabilities in a compact and versatile package, making it ideal for industrial applications. It can be used to integrate a wide variety of devices to meet your specific needs.

  • 2 x USB 3.2 Gen 2 (10Gb/s)
  • 6 x USB 2.0
  • 2 x RS-232
  • 4 x RS-422/485
12 -bit
  • GPIO

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.


Hardware Spec.

CPU Intel® Elkhart Lake 处理器
Intel® Celeron® J6412 板载 SoC (高达 2.6GHz, 四核, 1.5M 缓存, TDP=10W)
内存 板载 LPDDR4x-3200MHz 8GB, 支持多达至 16GB
内存上限 支持多达至 16GB
散热方案/系统风扇 1 x CPU 风扇接口 (1x4 pin)
1 x 系统风扇接口 (1x3 pin)
存储 1 x SATA : 6Gb/s 带 5V SATA 电源连接器
I/O 接口
显示输出 1 x HDMI™ : 高达 4096 x 2160@30Hz
1 x Display Port : 高达 4096 x 2160@60Hz
1 x iDPM : 1 x IEI iDPM 3040 槽位 (仅支持 IEI eDP/LVDS/VGA 模块)
网络 2 x LAN -
LAN1: Intel® I225V 2.5GbE 控制器
LAN2: Intel® I225V 2.5GbE 控制器
音频 1 x HD Audio : 1 x iAUDIO, 支持 IEI AC-KIT-888S 音频组件 (2x5 pin)
I/O接口 2 x External RS-232
4 x Internal RS-422/485 : 1x4 pin, P=2.00
2 x 外部 USB 2.0
4 x 内部 USB 2.0 : 2x4 pin, P=2.00
1 x DIO : 12 位数字 I/O (2x7 pin)
2 x 外部 USB 3.2 Gen2x1 : 10Gb/s
扩展 1 x PCIe x4 : PCIe Gen3 x1 signal
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIex1 & USB 2.0)
1 x M.2 B key (3052/3042/2242/2280) w/ SIM holder (基于 PCIe x2 / USB 2.0 信号)
Other Features
TPM Intel® PTT (TPM 2.0)
电源功耗 12V@2.78A (Intel® Celeron® J6412 2.0GHz with 8GB 3200MHz LPDDR4 memory and EUP enabled)
电源供电 12V DC 电源输入
1 x 内部电源接口 (2x2 pin)
1 x 外部 DC 电源接口 (Ø2.5mm)
符合 ErP/EuP
操作温度 0°C ~ 60°C
存储温度 -30°C ~ 70°C
Humidity 5% ~ 95%, 无冷凝
Safety & EMC 符合 CE/FCC

Ordering Information

KINO-EHL-J6412C-R10 Mini-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display, HDMI™, DP, SATA 6Gb/s, Triple GbE, USB 3.2, M.2 and RoHS

Package Contents

Package Content
  • 1 x KINO-EHL 主板

  • 1 x SATA 线材

  • 1 x I/O 挡片

  • 1 x QIG
