IMBA-R680

ATX 主板支持 LGA1700 Intel® 第 12/13 代 Core™ i9/i7/i5/i3, Pentium® 和 Celeron® 处理器, 支持 DDR5 内存, 独立三显, 双 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, 以及符合 RoHS

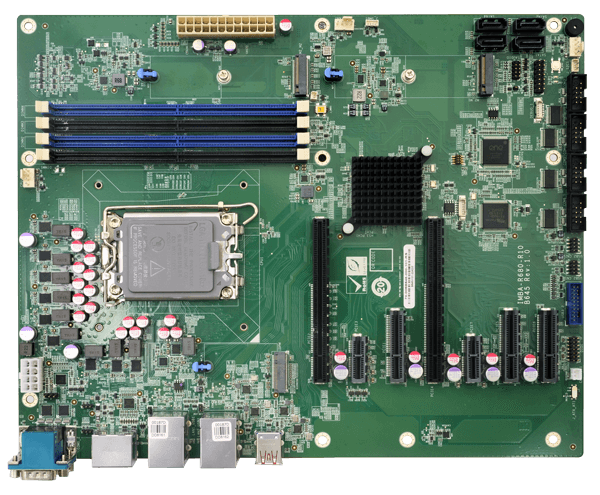

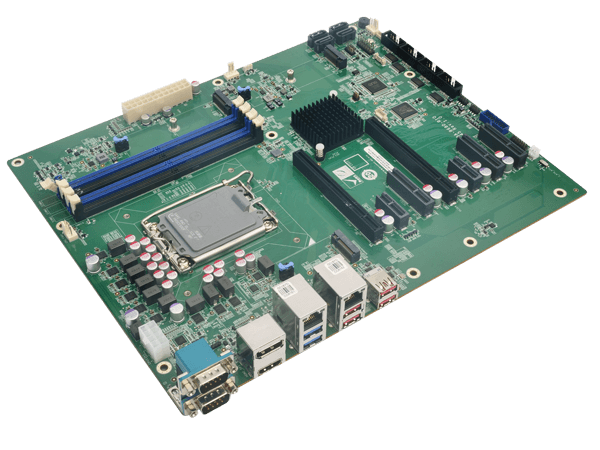

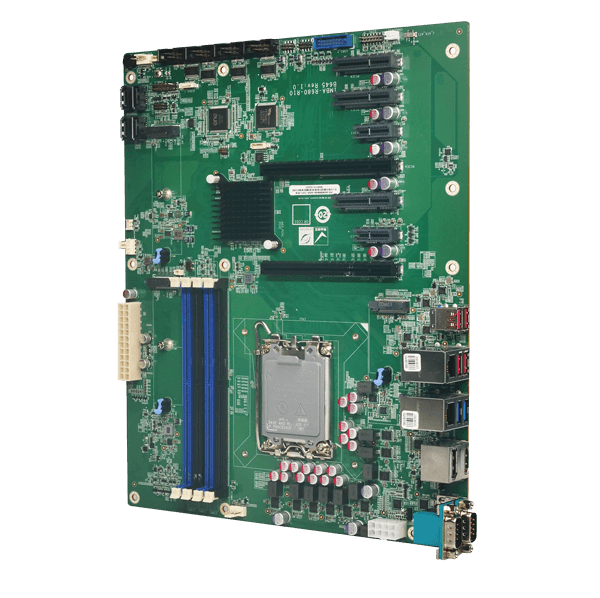

IEI IMBA-R680 ATX motherboard
IEI IMBA-R680 ATX motherboard
IEI IMBA-R680 ATX motherboard
  • IEI IMBA-R680 ATX motherboard
  • IEI IMBA-R680 ATX motherboard
  • IEI IMBA-R680 ATX motherboard
1. LGA1700 插槽Intel® 第12/13代 Core i9/i7/i5/i3, Pentium 和 Celeron 处理器(125W)
2. 支持双通道 DDR5 4400MHz
3. Support DisplayPort 1.4a, HDMI™&iDPM 模块
4. 支持2 x M.2 M key,可做NVMe存储
5. 高性能 ATX 主板 支持 PCIe Gen4&Gen5 扩展插槽

Powerful ATX Motherboard to Accelerate
Compute-intensive Workloads

The IMBA-R680 is released to respond to the growing demands for massive data processing and high-performance computing in the industrial market. Integrated with the robust, innovative 12th Gen Intel® processor, DDR5 memory and PCI Express Gen5 technology, this ATX motherboard can deliver a massive leap forward in performance for applications requiring larger computational power and superior graphics capabilities.

Internal I/O

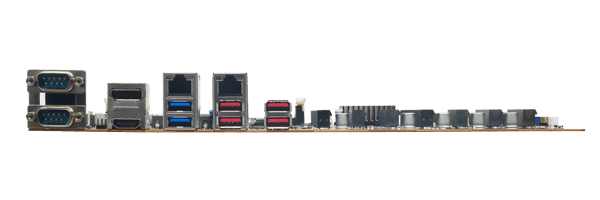

External I/O

Innovative 12th Gen Intel® Core™ Processors (Alder Lake S)

The latest Intel processor technology is adopted in the IMBA-R680. The supported 12th Gen Intel® Core™ processors come with up to 16 cores and 24 threads, and feature a new performance hybrid architecture, which combines performance-cores (P-cores) and efficient-cores (E-cores) on a single processor die. P-cores aims at enhancing IoT workload consolidation while at the same time E-cores can handle background task management and multitasking without affecting overall performance. With such a high computing performance and flexibility for heavier IoT workloads, the IMBA-R680 motherboard can help unleash IoT potential, boost AI capability and accelerate real-time processing.

DDR5 RAM Achieves Next Generation Performance

Bandwidth increase is a noticeable feature of the 5th-generation DDR. When compared to DDR4-3200 (the max. data rate of this predecessor), DDR5-4400 present the approximate performance increase of 1.75x. With four DIMM slots, the IMBA-R680 can be installed with up to 128GB 4400 MT/s DDR5 memory, delivering data transmission of unparalleled quality and reliability for data centers, AI or other high-speed computing applications.

Benefits of DDR5

Higher capacity & Faster transfer

Up to 128GB capacity & up to 4400MT/s transfer speed

Low power

Voltage lowered from 1.2V to 1.1V

Dual sub-channel

Two 32-bit independent channels, doubling the bandwidth

New PCI Express Gen5 Ready for
Higher Bandwidth and Future Upgrade

Adopting the latest generation of PCI Express standard, the IMBA-R680 equips a total of 7 PCIe slots to provide multiple high-bandwidth expansions for peripherals like graphics cards, SSD, capture cards or wireless cards. Three of them are connected directly with the CPU, bypassing the bottleneck between the CPU and chipset, and further reducing latency. PCIe 5.0 at 32 GT/s offers twice that transfer rate of the current PCIe 4.0 offering. It not only provides backwards compatibility but also capability for future upgrade when more advanced technologies are emerging.

Reliable RAID Storage Secures Data Processing

The IMBA-R680 offers four SATA 6Gb/s interfaces to expand storage capacity and enable fast data transfer. The equipped Intel R680E chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure through different RAID levels (RAID 0, 1, 5 and 10) to increase performance and/or provide automatic protection against data loss from drive failure.

Dual M.2 M Key for NVMe SSD

SSD features shock and temperature resistance, long lifetime and high stability. It is widely used in industrial applications to provide reliable data storage. Both of the equipped M.2 2242/80 M-key sockets come with PCI Express® Gen3 x4 bandwidth and support up to 32Gbps data-transfer speeds, making them the perfect choice for installing NVMe SSD to provide fast data access in rugged environment.

Stunning 4K Resolution and Triple Display

The IMBA-R680 is integrated with Intel® UHD Graphics driven by Intel® Xe Architecture to deliver videos and images in stunning 4K resolutions. Triple independent display is supported via DisplayPort 1.4, HDMI™ and IEI iDPM interface. The iDPM interface supports diverse display modules, enabling users to add LVDS, eDP or VGA display interface upon requirements. Up to 4K@60 high-resolution support provides great benefits for applications that demand on-image resolution and color realism at the edge.

2.5GbE High-Bandwidth and Low-Latency Data Transmission

The two RJ45 LAN ports both provide 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of smart surveillance and AI recognition to deliver lightning-fast transmission speed between devices.

Abundant Connectivity Options for Additional Peripherals

12 USB Ports up to 10Gbps for More Possibilities

USB ports have become one of the most popular ports for computers to connect with peripherals in industrial applications. Its features in high transfer speed, power management and backward compatibility make USB an ideal option for a communication port. The IMBA-R680 is designed with 12 USB ports, allowing you to connect various devices with up to 10Gbps data transfer speed. The peripherals requiring high bandwidth such as high-resolution cameras, HIDs (human interface devices) and other edge IoT devices can all be connected through the reliable USB interfaces in providing better data collection and acquisitions.

6 COM Ports Bring Intelligence to Legacy

Over decades, serial ports are still extremely reliable for connecting industrial computers with legacy peripherals. The IMBA-R680 comes with six serial ports to connect to legacy factory machinery and devices, allowing enterprises to bring intelligence to legacy equipment without having to replace them. In addition, the RS-485 ports support Automatic Flow Control (AFC), which can ensure UART buffers are never overrun so data transmission between devices can be complete without the risk of losing data.

Applications

Dimensions


Hardware Spec.

尺寸类型
尺寸类型 ATX母板
系统
CPU LGA1700 插槽支持第12代 Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持多达 125W TDP CPU)
芯片组 Intel®R680E
内存 4 x 288-pin 双通道 DDR5 (up to 4400 MHz) SDRAM 无缓存 DIMMs 支持多达至 128GB (支持ECC&non-ECC )
内存上限 128GB
散热方案/系统风扇 1 x CPU 风扇接口 (1x4 pin)
2 x 系统风扇接口 (1x4 pin)
物理特性
尺寸 (LxWxH) (mm) 244mm x 305mm
净重 700g
存储
存储 4 x SATA : 支持RAID 0/1/5/10
2 x M.2(NGFF)
I/O 接口
显示输出 1 x HDMI™ : 高达 3840*2160 @30Hz
1 x Display Port : 高达 4096 x 2304 @60Hz
1 x iDPM : support iEi eDP/ LVDS/ VGA module
网络 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
LAN2: Intel® I225V 2.5GbE controller
音频 1 x HD Audio : 1 x iAUDIO, 支持 IEI AC-KIT-888S 音频组件 (2 x 5 pin)
I/O接口 2 x 外部RS-232/422/485 : RS-485 支持 AFC
4 x 内部RS-232 : 2x5 pin, P=2.54
2 x 外部 USB 3.2 Gen1x1 : 5Gb/s (Type A)
4 x 内部 USB 2.0 : 2x4 pin, P=2.00
2 x 内部 USB 3.2 Gen1x1 : 5Gb/s (2 X 10pin, P=2.00)
4 x 外部 USB 3.2 Gen2x1 : 10Gb/s(Type A)
扩展 2 x PCIe x16 : Gen5 slot with x8 Signal
3 x PCIe x4 : Gen4 open-end
2 x PCIe x1 : Gen3 x1
2 x M.2(NGFF) : M Key (2242/2280, PCIe x4) 支持 NVMe 存储
电源
电源功耗 3.3V@0.89A, 5V@10.05A, 12V@6.05A, 5VSB@0.64A
(Intel® Core™ i7-12700E CPU with four 16 GB 4800 MHz DDR5 memory, EuP mode enabled)
电源供电 ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
环境
操作温度 0°C ~ 60°C
存储温度 -30°C ~ 70°C
Humidity 5% ~95%, 无冷凝

Ordering Information

IMBA-R680-R10 ATX motherboard supports LGA1700 12th/13th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS

Package Contents

Package Content
  • 1 x IMBA-R680 单板电脑

  • 2 x SATA 线材

  • 1 x I/O 挡片

  • 1 x QIG
