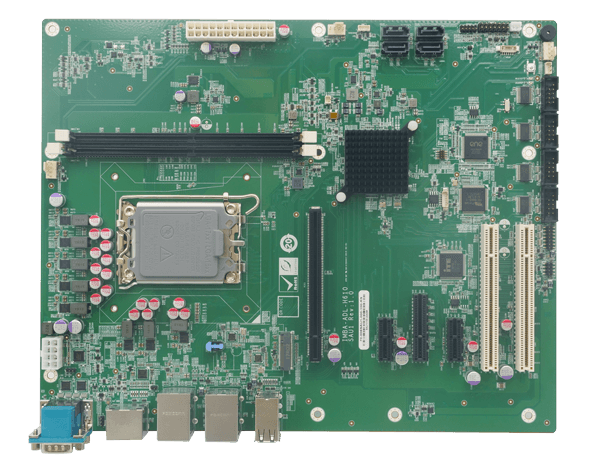

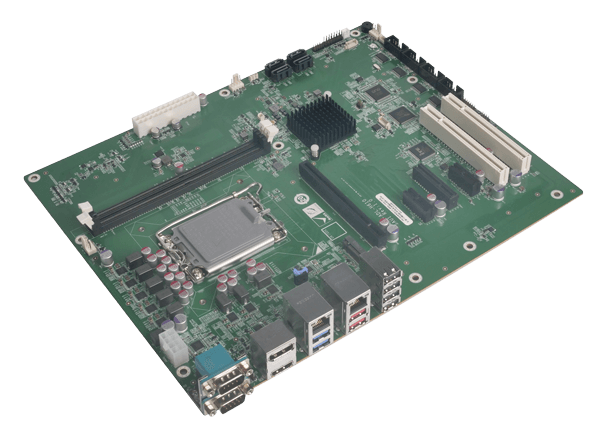

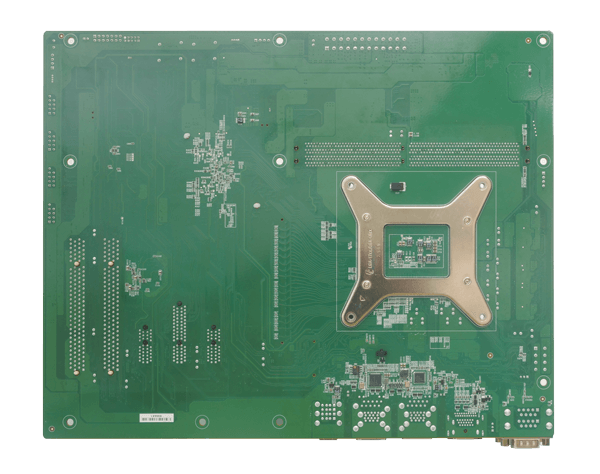

ATX 主板支持 LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3、Pentium® 和 Celeron® 处理器、DDR4、三重独立显示器、2.5GbE LAN、USB 3.2、SATA 6Gb/s 和 RoHS

» 支持Intel® H610/H610E芯片组
» 支持Intel® I225V 2.5GbE 以太网控制器
» 通过HDMI™、DP和iDPM支持三重独立显示
» 支持1个PCIe x16、1个PCIe x4、2个PCIe x1、2个PCI扩展
» 支持两个USB 3.2 Gen 2、两个USB 3.2 Gen 1、六个USB 2.0,传输速度高达10Gb/s
» 支持2个RS-232/422/485、4个RS-232和4个SATA接口

New Advanced Industrial ATX Motherboard

IMBA-ADL-H610 is IEI's cost-effective ATX industrial motherboard. It is able to support both 12th and
13th Gen Intel® Core™ processors and equipped one PCIe Gen4 x16 to deploy and run your AI projects
in retail, transportation and surveillance efficiently. It drives a New Era in AIoT Solution.

PCIe Gen4

DDR4 3200

2.5GbE LAN

SATA 6Gb/s

Internal I/O

Improved Efficiency and Performance with
12th/13th Gen Intel® Processors

IEI's IMBA-ADL-H610 motherboard supports both 12th and 13th Gen Intel® Core™ processors, and the performance boosts up to 1.36x times faster in single-thread performance and up to 1.35x times faster in multi-thread performance than 10th Gen Intel® Core™ Processors. The 12th Gen Intel® Core™ platform supports up to 16 cores and 24 threads, enhanced AI, and Intel® UHD Graphics 770 driven by Intel® Xe Architecture. It also features innovative high-performance chip design, enhanced graphics performance, fast AI with hardware acceleration and real-time capabilities to help expand your IoT potential. With increased I/O capacity and the latest PCIe 4.0 support, these processors deliver the performance required to consolidate industrial multiple workloads.

Because of the above features, the IMBA-ADL-H610 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment, smart factory and much more.

Up to



Up to



Up to


faster single-thread performance

Up to


faster multi-thread performance

Triple Display with Stunning 4K Resolution

The Intel® 12th generation processors is integrated with Intel® UHD Graphics 770, which offers up to 32 EUs to drive a maximum resolution of 4kp60. Equipped with one HDMI™ 1.4 (up to 4096 x 2160@30Hz), one DP 1.4 (up to 4096 x 2160 @60Hz) and the option to use the iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) to support triple independent displays, the ATX motherboard brings more possibilities to upgrade IoT devices at the edge.

Up to


faster multi-thread performance

Free to choose display connections with iDPM modules

More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow theIMBA-ADL-H610 to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.


eDP to 24-bit dual channel
LVDS converter board


eDP to eDP converter board


eDP to VGA converter board

Makes adequate AIoT application in practice

With powerful AI computing performance, graphics-rich performance of multi-display connection, and flexible expansion slots, the IMBA-ADL-H610 ATX motherboard makes adequate AIoT application in practice, such as industrial automation, smart factory, data analysis, video surveillance, computer vision, and medical imaging. All features plus its stability and reliability enable it an ideal platform for AIoT edge development.

Support PCIe Gen4,
Also Has PCI to Work with Legacy Systems

The IMBA-ADL-H610 equips one PCIe Gen4 x16, one PCIe Gen3 x4 (open-end), two PCIe Gen3 x1, and two PCI expansion slots, providing not only high-level PCI Express connectivity, but also PCI to work with legacy systems. This ATX motherboard is AI edge ready, and supports IEI's AI accelerators, Mustang series. IEI Mustang AI accelerators can bring much larger and computationally-intensive neural networks to the edge, and they are ideal for deep learning inference computing to help you get faster, deeper insights for your customers and your business.

High Speed Transmission

Dual USB 3.2 Gen 2 (10Gb/s)

Dual USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission, the device can be connected in any way.

Four SATA 6Gb/s

Twice as fast data processing, it is capable of delivering lightning fast data transfer experience for edge AI data process applications.


Delivers Low-Latency 2.5G LAN Powered by Intel

The on-board Intel® I225V 2.5GbE controller enable the IMBA-ADL-H610 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming applications.


Hardware Spec.

尺寸类型 ATX母板
CPU LGA1700 插槽支持第 12/13 代 Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® 处理器 (支持高达 65W TDP CPU)
芯片组 Intel® H610/H610E
内存 2 x 288-pin 双通道 DDR4 (up to 3200 MHz) SDRAM 无缓存 DIMMs 支持多达至 64GB
内存上限 64GB
散热方案/系统风扇 1 x CPU 风扇接口 (1x4 pin)
2 x 系统风扇接口 (1x4 pin)
尺寸 (LxWxH) (mm) 244mm x 305mm
净重 700g
存储 4 x SATA : 支持RAID 0/1/5/10

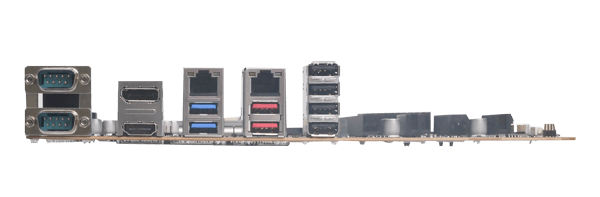

I/O 接口
显示输出 1 x HDMI™ : 高达 4096 x 2304 @30Hz
1 x Display Port : 高达 4096 x 2304 @60Hz
1 x iDPM : 支持iEi eDP/ LVDS/ VGA 模块
网络 2 x LAN -
LAN1: Intel® I219 LM controller
LAN2: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
音频 1 x HD Audio : 1 x iAUDIO, 支持 IEI AC-KIT-888S 音频组件 (2 x 5 pin)
I/O接口 2 x 外部RS-232/422/485 : RS-485 支持 AFC
4 x 内部RS-232 : 2x5 pin, P=2.54
4 x 外部 USB 2.0
2 x 外部 USB 3.2 Gen1x1 : 5Gb/s (Type A)
2 x 内部 USB 2.0 : 2x4 pin, P=2.54
2 x 外部 USB 3.2 Gen2x1 : 10Gb/s (Type A)
扩展 1 x PCIe x16 : Gen4 slot with x16 Signal
(**Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storage devices)
1 x PCIe x4 : Gen3 open-end
2 x PCIe x1 : Gen3
2 x PCI Slot
电源功耗 3.3V@0.36A, 5V@7.04A, 12V@5.62A, 5VSB@0.7A
(Intel® Core™ i7-12700E CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled)
电源供电 ATX/AT电源
符合 ErP/EuP
操作温度 0°C~60°C
存储温度 -30°C~70°C
Humidity 5% ~95%, 无冷凝

Ordering Information

IMBA-ADL-H610-R10 ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS

Package Contents

Package Content
  • 1 x IMBA-ADL-H610 单板电脑

  • 2 x SATA 线材

  • 1 x I/O 挡片

  • 1 x QIG
