» 支持全尺寸PCIe Mini
» 支持M.2 A Key 2230
» 支持M.2 B Key 3042/52/80 带SIM卡槽
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | TANK-XM81系列自定义8 x PCI Express® x1 |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 170.94 x 131.22 |
| I/O 接口 | |
| 扩展 | 1 x PCIe x1 : 全尺寸Mini PCIe (PCIe x1 & USB2.0) 带SIM卡槽 |
|
3 x M.2(NGFF) : 1 x A Key 2230 (PCIe x1 & USB2.0) 1 x B Key (M.2_B1) 3042/52/80 (PCIe x1 & USB3.2*) 带SIM卡槽 1 x B Key (M.2_B2) 3042/52/80 (PCIe x2**) 带SIM卡槽 Note: * The USB 3.2 signal of the M.2_B1 connector is not supported in the TANK-XM810. **The default signal of the M.2_B2 connector is PCIe x1. To configure as PCIe x2, please consult with IEI. |
|
| 环境 | |
| 操作温度 | 0°C ~ 60°C |
| Humidity | 5% ~ 95%, 无冷凝 |
| 认证 | |
| Safety & EMC | 符合CE/FCC认证 |
Ordering Information

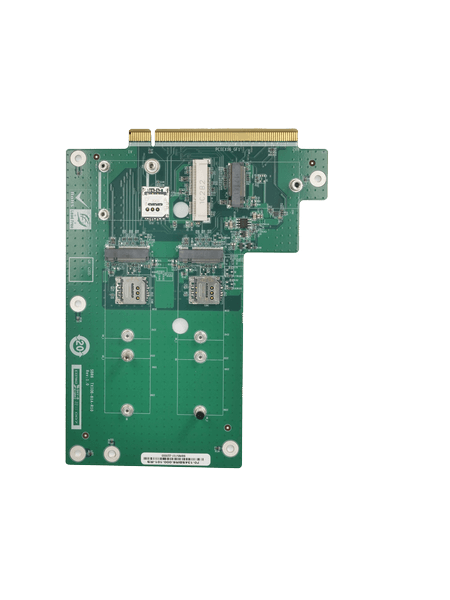

| TXIOB-XM81-A-R10 | Tank 81 Series Expansion IO Board module,2xM.2 B Key,1xM.2 A Key,1xMiniPCIe |
|---|
Package Contents
| Package Content |
|
|---|
