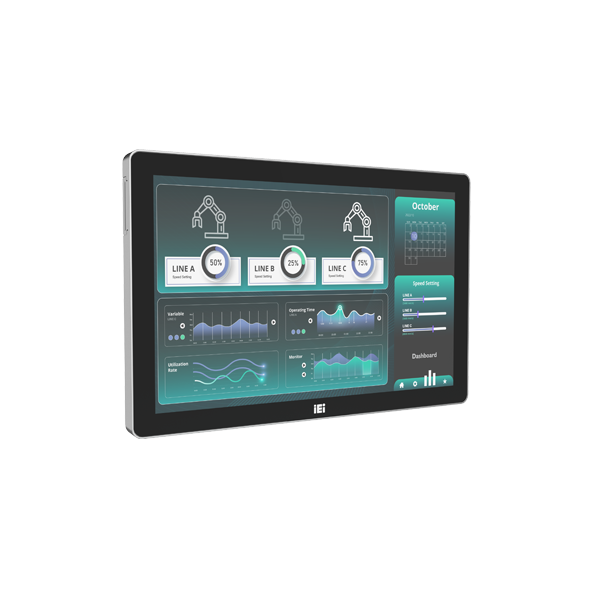

The AFL4-12-EHL is the 4th generation of IEI AFOLUX Panel PC. AFOLUX, standing for affordable luxury, is designed to provide versatile, cost-effective solutions for light industrial markets such as factory automation, retail, medical, digital signage and POS (point of sale). It is fanless with aluminum casing, looks stylish like a tablet, and is powered by Intel® Celeron® J6412 processor and 8GB LPDDR4x soldered memory to deliver excellent performance at ultra-low power. Built with optimized PCAP touchscreen, rich I/O and advanced wireless communication capability by the latest technology – Wi-Fi 6E and Bluetooth 5.2, the AFL4-12-EHL is ideal for IoT applications requiring high-speed connectivity, large embedded RAM, and low power consumption.
Front Panel IP64
-10°C~50°C
Narrow Bezel
Fanless
8GB LPDDR4x & NVMe
10-point AG PCAP touch with anti-UV
2.5 GbE LAN
12" Fanless System Powered by
Intel® Quad-Core Processor & LPDDR4x Memory
Intel® Celeron® J6412 Processor, Burst up to 2.6 GHz

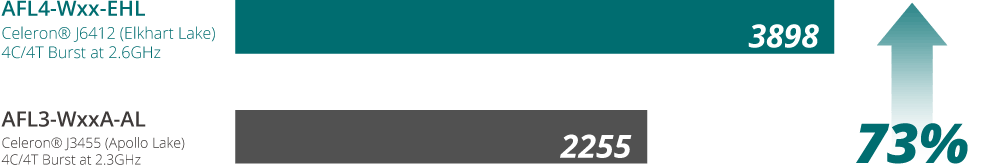

Powered by Intel® Celeron® J6412 processor (burst up to 2.6 GHz) and on-board 8GB LPDDR4x memory, the AFL4-12-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation (AFL3-WxxA-AL) , the AFL4-12-EHL offers 73% boost on CPU performance, making it perfect for multitasking.
Large and Reliable 8GB LPDDR4x Memory

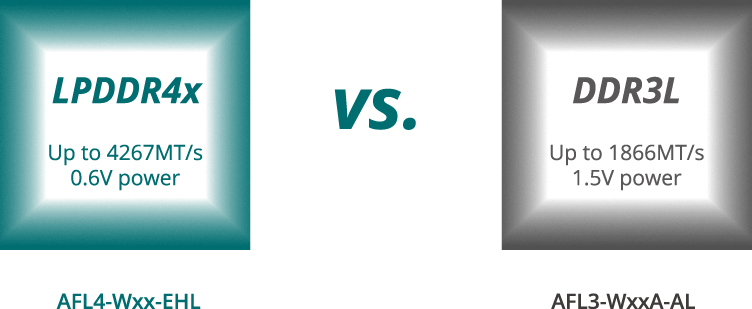

Upgrading the memory from DDR3L to LPDDR4x not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V to 0.6V.
Long-term Availability
The Intel® Celeron® J6412 processor is available and supported for an extended period. This long-term availability can benefit integrators who are looking to maximize their return on investment.
Powered by Intel® Celeron® J6412 processor (burst up to 2.6 GHz) and on-board 8GB LPDDR4x memory, the AFL4-12-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation (AFL3-WxxA-AL) , the AFL4-12-EHL offers 73% boost on CPU performance, making it perfect for multitasking.
Upgrading the memory from DDR3L to LPDDR4x not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V to 0.6V.
The Intel® Celeron® J6412 processor is available and supported for an extended period. This long-term availability can benefit integrators who are looking to maximize their return on investment.
Stylish Looks with Robust Protection
Front IP64 Ingress Protection
Water and dust ingress protection is crucial for some industrial environments where sanitation and cleanliness are required. The AFL4-12-EHL’s front panel is compliant with IP64 to protect it against pressure water and dust.
Dust-tight protection for maximum performance against flying dust, dirt, debris and other particulates
Protected against water splashed from all directions, limited ingress permitted.

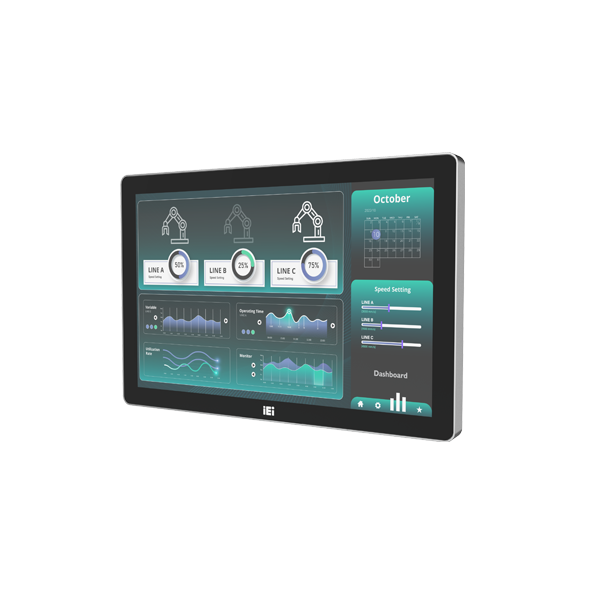

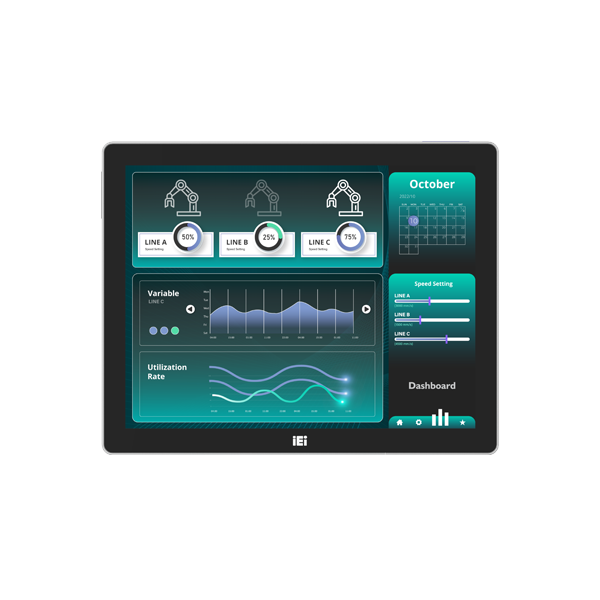

True-flat Screen & Narrow Bezel

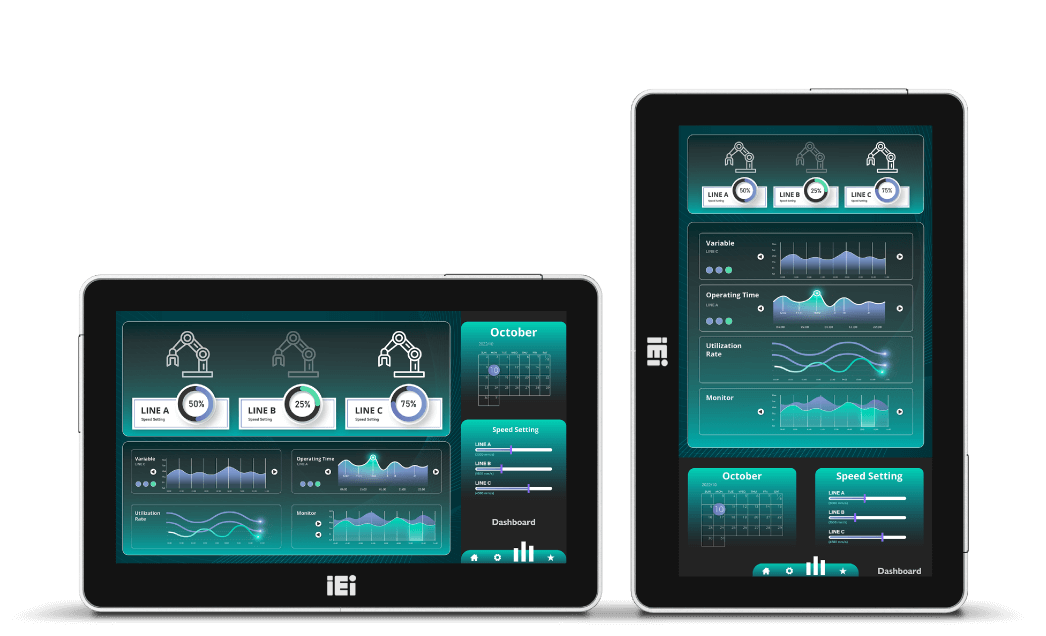

The panel PC features an elegant, slim and true-flat design, which make it a perfect choice to fit in any environment. True-flat screen surrounded with narrow bezel makes it easily to setup in landscape or portrait orientation, and is easy to maintain and clean.
Outstanding PCAP Touch Screen Technology

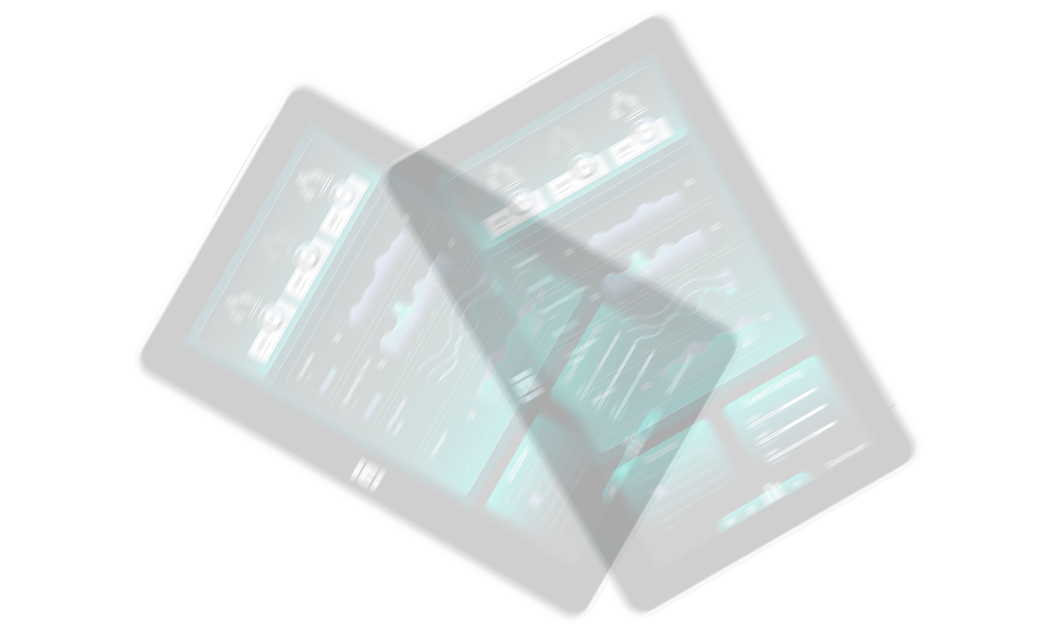

IEI's rugged touchscreen adapts a glass-glass PCAP touch technology with integrated industrial-grade controllers, which is further developed to fulfill industrial capability. IEI AFOLUX panel PCs with PCAP touchscreen allow customers to experience it using gloves in harsh environments such as food processing, chemical and beverage industries.
10-point Multi-touch
The screen equips a 10-point multi-touch screen that has
the ability to recognize and respond to ten simultaneous
points of contact. This feature allows developer to design
applications where complex gesture is needed to operate,
such as zoom, rotate, swipe or other actions that need
two or more people to operate the same monitor at once.
Anti-glare Matte Finish
PCAP touchscreens can display details precisely thanks to
its optical clarity and high contrast ratios. With anti-glare
and anti-UV coating, the touchscreen can display clearly
with no reflection and scratches after a long time use in
outdoors and bright light environment.
Better Readability
With 87% high transmission rate, the image clarity and
light transmission ensure great readability.
7H Scratch-resistant Surface Hardness
Having good resistance to permanent deformation of the screen surface is the key to maintaining a clear display.
The AFL4-12-EHL features 7H hardness glass that resists scratches from tools or other sharp objects.
It can help enhance durability and touch precision for your industrial applications.
Work with Gloves and Water
The optimization of the PCAP touch-sensitivity allows easy
operation with thin rubber gloves or with work gloves.
Moreover, the PCAP touchscreen is easy to clean, and
requires no calibration after a period of operation.
PU Coated Gloves
(Thickness: 0.9 mm)
smallU Coated Gloves
(Thickness: 0.9 mm)
PU Coated Gloves
(Thickness: 0.9 mm)
PU Coated Gloves
(Thickness: 0.9 mm)
Chemically Strengthened Glass Substrate with UV Protection
Outdoor applications mean exposure to direct sunlight
and long-term exposure to ultraviolet (UV) light. It can
easily affect PCAP panel appearance such as cracking and
hazing of top glass hard coat, or varying degrees of
yellowing and bubbling. Thus, IEI offers a UV-resistant
PCAP touch solution to equip outdoor industrial systems
exposed to direct long-term sunlight with the following
anti-UV characteristics.
- ▪ Blocks UV wavelengths less than ≈340nm
- ▪ Meets ASTM G154 performance criteria Cycle 1
PU Coated Gloves
(Thickness: 0.9 mm)
smallU Coated Gloves
(Thickness: 0.9 mm)
PU Coated Gloves
(Thickness: 0.9 mm)
PU Coated Gloves
(Thickness: 0.9 mm)
- ▪ Blocks UV wavelengths less than ≈340nm
- ▪ Meets ASTM G154 performance criteria Cycle 1
4K HDMI™ Expands Screen Real Estate
Featuring the latest Intel® UHD Graphics with 16 EUs, the AFL4 panel PC can connect with a second display via the HDMI™ port to deliver powerful hard decoding capability for you, ensuring no delay on streaming 4K videos. The HDMI™ port is located on the side panel, enabling easy access and connection to the TV/monitor with HDMI™ on the side.
Durable Aluminum Die Casting Housing
The housing of the next-generation panel PC is constructed of aluminum die casting, featuring durable hardness, high corrosion resistance and excellent thermal conductivity. Compared to the previous generation that used PC/ABS plastic enclosure, the heat dissipation is significant increased due to aluminum’s great heat transfer advantages. The new gen is more suited for the industrial application that requires high chassis strength and impact toughness. Moreover, aluminum die casting is fully recyclable and reusable, which makes the panel PC a green product for being environmentally responsible.
Thermal conductivity
Durable
Corrosion resistance
Recyclable & reusable
AFL3-AL vs. AFL4-EHL
AFL4-EHL vs. AFL3-AL
Wireless Network Capability Simplifies IoT Deployment
The panel PC is designed with strong wireless network capability via a pre-installed Intel wireless network module. The latest Wi-Fi 6E and Bluetooth 5.2 technologies are provided to speed up data transmission through the internal 2T2R antennas, which eliminate cable interference while maintaining stable performance for high volume applications.
6 GHz Wi-Fi 6E
- Wi-Fi 6E (802.11ax) provides a transmission speed up to 3.6 Gbps and supports the latest 6 GHz band
Bluetooth 5.2
- Bluetooth 5.2 helps to connect Bluetooth devices seamlessly at a bandwidth of 2 Mbps and up to 300-meter transmission distance
2.5GbE High-Bandwidth Low-Latency Data Transmission
The equipped two RJ45 LAN ports provides 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. The 2.5GbE port supports up to 2.5x faster speed than standard gigabit Ethernet, optimizing deployment of smart surveillance and home automation to deliver lightning-fast transmission speed between devices.
Dual M.2 M Key Supports High-performance NVMe SSDs
The AFL4 panel PC has two M.2 M key slots to support various expansion options, especially for storage requirement. An NVMe-based drive can write to disk up to 2x faster compared to a SATA SSD. By communicating directly with the CPU via the PCIe Gen3 bus, the NVMe drive offering up to 1GB/s (bidirectional) of throughput is a great solution to enable applications that require real-time data processing and storage reliability, such as surveillance and industrial automation.

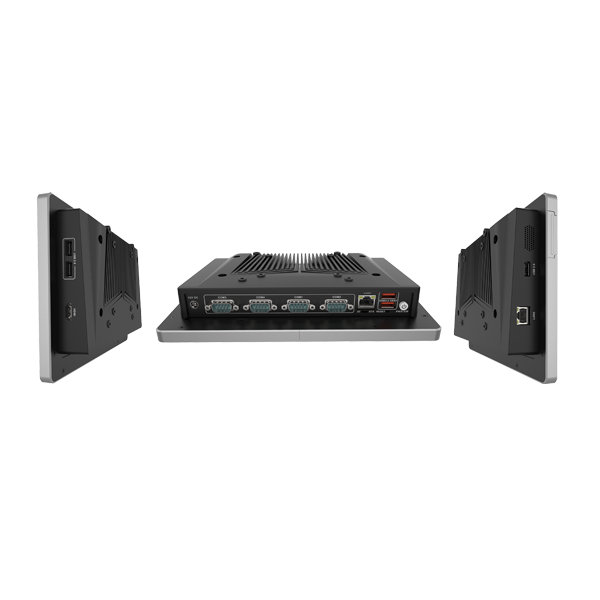

Diversified I/O Connection
The AFL4-12-EHL panel PC has multiple ports for peripheral connections, and even with an internal 1.2W speaker for audio output. It equips five USB ports supporting up to 10 Gbps transfer speed, and four serial ports to connect to legacy factory machinery and devices, allowing enterprises to bring intelligence to legacy equipment without having to replace them.
5 USB
- 2 x USB 10Gb/s
- 3 x USB 2.0
4 COM
- 2 x RS-232/422/485
- 2 x RS-232
1.2W
- 1 x Internal speaker
Touch-enabled BIOS
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.
Shortcut to boot device setup
The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.
Easy-access function keys
The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

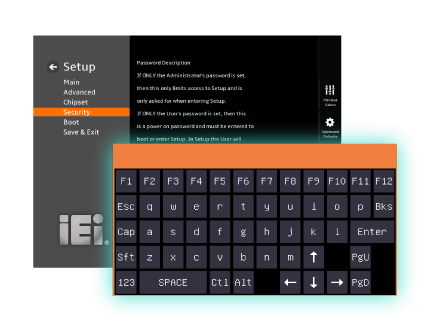

On-screen keyboard
An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.
Various Mounting Methods to Best Fit Your Needs
The AFL4-12-EHL features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.

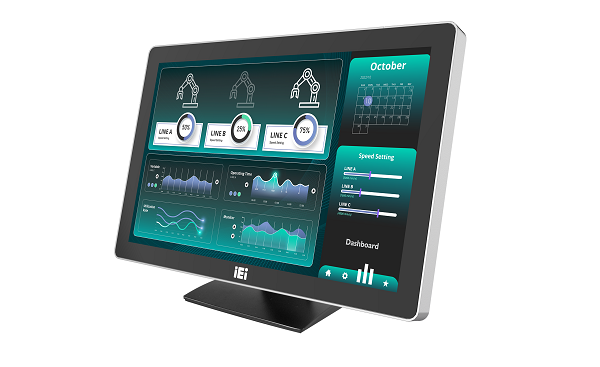

Stand Mount
Arm Mount
Wall Mount
Ideal for Diverse Applications
Kiosk
Fitness/Gym Equipment Console
Retail Advertising
Inventory Management
Bus Ticket Machine
Weiging Terminal

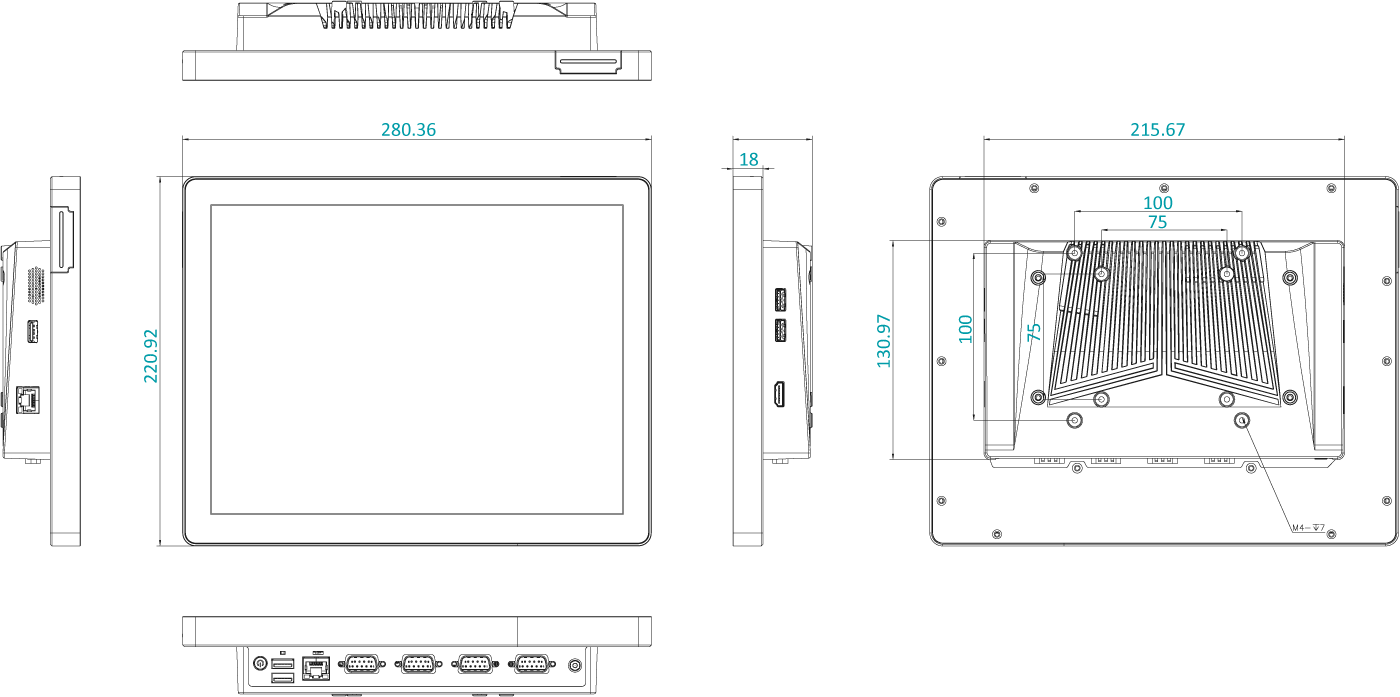

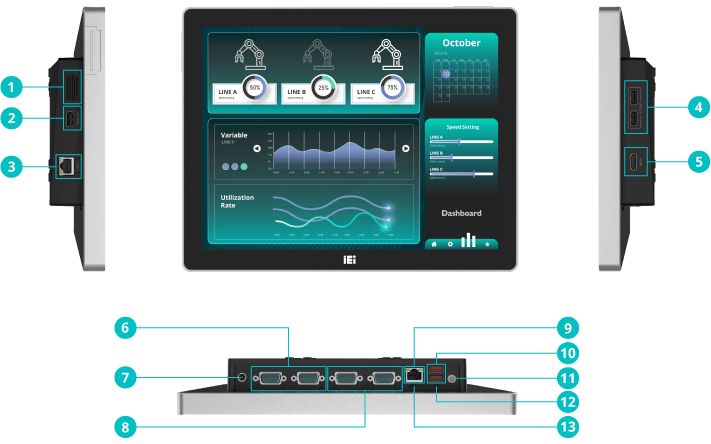

I/O Interfaces & Dimensions
Related Products
Hardware Spec.
| System | |
|---|---|
| CPU | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| 内存 | 板载双通道8GB LPDDR4x |
| 存储 | 1 x M.2 2242 M-key (PCIe Gen3 x1 or SATA) |
| Communication | |
| 无线 |
2T2R Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Support 2.4/5/6GHz ,Bluetooth v5.2 |
| I/O Interface | |
| 网络 | 2 个 2.5GbE LAN，通过Intel® I225V |
| 扩展 | 1 x M.2 M-key 2280 (PCIE Gen3 x2) |
| 音频编解码器 | 瑞昱 ALC 888S |
| Power | |
| 电源输入 | 12V 直流 |
| Environment | |
| 工作温度 | -10ºC ~ 50ºC |
| 安规&电磁 | CE, FCC Class A |
| 相对湿度 | 10% ~ 95%, 无冷凝 |
| 存储温度 | -20ºC ~ 60ºC |
| Physical Characteristics | |
| 机身颜色 | 黑色+银色 |
| 安装方式 | VESA 75, Wall, Stand and Arm |
| 尺寸 (LxWxH) (mm) | 280.36 x 220.92 x 47.5 |
| LCD | |
| LCD 尺寸 | 12” (4:3) |
| 分辨率 | 1024 x 768 |
| 亮度 | 500 nits |
| 对比度 | 700:1 |
| LCD 色彩 | 16.7M |
| 像素间距 (mm) | 0.24 x 0.24 |
| 可视角度 (H-V) | 160°/140° |
| 背光 MTBF | 50,000 小时 |
| Touch | |
| 触摸屏 |
多点电容式触控屏(抗紫外/防眩光,支持手套) 表面硬度：7H |
| 触控IC | EETI 80 系列 |
| Other Features | |
| 音频 | 1 x AMP 1.2W (内置扬声器) |
| I/O Interface | |
| I/O 接口 | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 3 x USB 2.0 | |
| 1 x HDMI™ (高达 3840*2160 @30Hz) | |
| 2 x LAN (英特尔® I225V 2.5GbE 控制IC) | |
| 1 x DC Input Jack | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen2x1 (10Gb/s(Type A)) | |
| OS Support | |
| OS Support |
Windows 10 IoT Linux |
