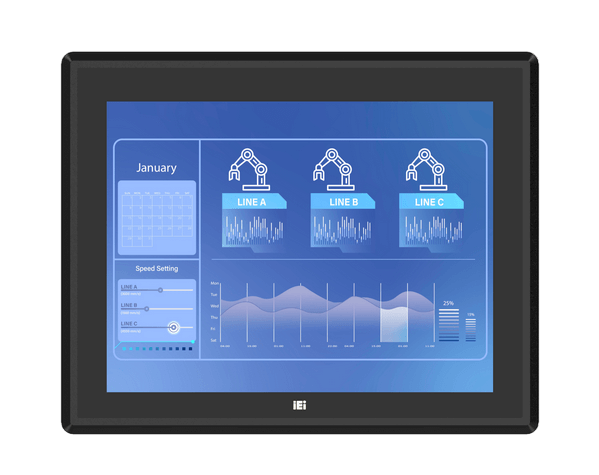

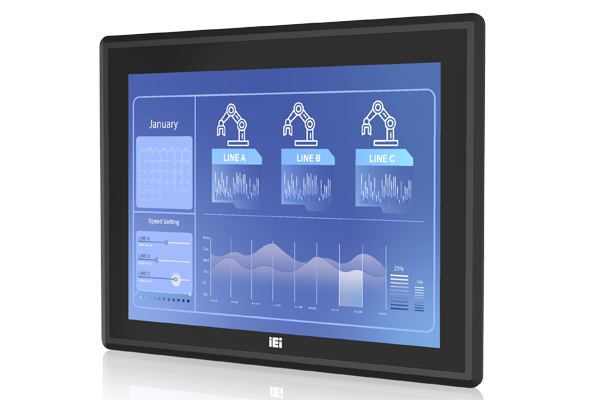

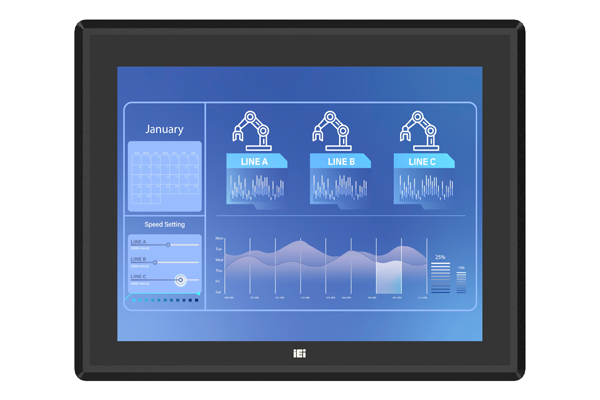

PPC2-C15-ADL

15” 高性能平板电脑,搭载 12 代 Intel® Core™ i9/i7/i5/i3 and Pentium® 处理器

» 第12代英特尔®异构平台
» PCIe Gen4 x16 (x16信号) 扩展插槽
» 防眩光与抗紫外的电容触控屏
» 支持手套和湿手下触摸操作
» 全新手拧面板安装套件
» 全新触控图形化 BIOS

High Performance Edge AI Heavy Industrial Panel PC

The PPC2-Cxxx-ADL panel PC series is designed for heavy industrial uses that need high degree of computing. Integrated with 12th Gen Intel Core processor, the panel PC supports up to 64GB DDR4 memory, Intel® UHD Graphics and a PCIe Gen4 x16 slot for expansion of functionality. Its IP65 projected capacitive touchscreen with anti-glare/UV coating not only ensures readability and durability, but also allows gloved/wet hand operation. Moreover, the built-in power supply with AC input simplifies power delivery to the system and maximizes energy efficiency for diverse applications such as edge AI, industrial automation or machine vision.

PCI Express x16

PCI Express x16

AC-In Power

AC-In Power

Panel Mounting

Panel Mounting

Front Panel IP65

Front Panel IP65

2.5 GbE Dual LAN

2.5 GbE Dual LAN

-10°C~60°C

-10°C~60°C

10-point AG PCAP Touch with Anti-UV

10-point AG PCAP Touch with Anti-UV

12th Gen Intel® Core™ Processor Enhances CPU and Graphics Performance

The {{ store.modelName }} is integrated with 12th Gen Intel® Core™ i7/i5/i3/Pentium® processor (code name: Alder Lake-S) and Intel® H610 chipset. Supporting up to 12 cores and 4.9GHz burst frequency, the PPC2-ADL-S series can provide high performance, real-time edge computing to achieve unparalleled IoT workload consolidation and AI inferencing. The integrated Intel® UHD Graphics 770* driven by Intel® Xe Architecture with up to 32 graphics execution units (EUs) enhances graphics performance, allowing the panel PC to display pixel-accurate visuals and better support imaging applications.

* Graphics specifications may vary depending on the CPU installed. Source: www.cpubenchmark.net

Up to 64GB 3200MHz Dual-Channel DDR4 Memory

The panel PC provides those looking for the large memory capacity for maximum productivity. With two SO-DIMM slots supporting up to 64GB of memory at 3200MT/s, the PPC2-ADL can deliver high data processing speed, having the lowest possible latency and maximized performance of sorting, storing, and retrieving data.

High Ingress Protection, Easy to Maintain

The {{ store.modelName }} has a rugged and true-flat front screen framed with strong waterproof gasket seal on the back to protect against pressure water. It is easy to maintain and keep clean, making it an ideal device to perform in harsh environments where sanitation is required such as food processing factory.

Front IP65 Protection

True Flat Screen

IP65

Narrow Bezel & Slim Depth

Maximize the display;
minimize installation space

Durable True-flat Screen

MTBF: 70000 hrs
Luminuance: 450 nits

Outstanding PCAP Touchscreen Technology

IEI's rugged touchscreen adapts a glass-glass PCAP touch technology with integrated industrial-grade controllers, which is further developed to fulfill industrial capability. IEI PPC2-ADL panel PCs with PCAP touchscreen allow customers to experience it using gloves in harsh environments such as food processing, chemical and beverage industries.

10-point Multi-touch

Anti-glare Matte Finish

Better Readability

7H Scratch-resistant Surface Hardness

Work with Gloves and Water

Chemically Strengthened Glass Substrate with UV Protection

The screen equips a 10-point multi-touch screen that has the ability to recognize and respond to ten simultaneous points of contact. This feature allows developer to design applications where complex gesture is needed to operate, such as zoom, rotate, swipe or other actions that need two or more people to operate the same monitor at once.

PCAP touchscreens can display details precisely thanks to its optical clarity and high contrast ratios. With anti-glare and anti-UV coating, the touchscreen can display clearly with no reflection and scratches after a long time use in outdoors and bright light environment.

With 87% high transmission rate, the image clarity and light transmission ensure great readability.

Having good resistance to permanent deformation of the screen surface is the key to maintaining a clear display. The PPC2-ADL features 7H hardness glass that resists scratches from tools or other sharp objects. It can help enhance durability and touch precision for your industrial applications.

The optimization of the PCAP touch-sensitivity allows easy operation with thin rubber gloves or with work gloves. Moreover, the PCAP touchscreen is easy to clean, and requires no calibration after a period of operation.

*The cloth, leather or thick gloves may need to tune with the touchscreen firmware for it to work well. The only limitations could be the number of touches on the screen at one time. For example, instead of having 10 touches, they may be reduced to 2 touches with gloves at one time.

Outdoor applications mean exposure to direct sunlight and long-term exposure to ultraviolet (UV) light. It can easily affect PCAP panel appearance such as cracking and hazing of top glass hard coat, or varying degrees of yellowing and bubbling. Thus, IEI offers a UV-resistant PCAP touch solution to equip outdoor industrial systems exposed to direct long-term sunlight with the following anti-UV characteristics.

  • Blocks UV wavelengths less than ≈340nm
  • Meets ASTM G154 performance criteria Cycle 1

4K HDMI™ Dual Independent Display

Featuring the latest Intel® UHD Graphics with up to 32 EUs, the panel PC can connect with a second display via the HDMI™ 2.0 port to deliver powerful hard decoding capability and pixel-accurate 4K resolution.

Expand AI Capability with High-bandwidth PCIe Gen4 x16

The PPC2-ADL equips a PCIe Gen4 x16 slot to provide high-bandwidth expansion for peripherals like graphics cards, SSD, capture cards or AI accelerators. It is connected directly with the CPU, bypassing the bottleneck between the CPU and chipset, and further reducing latency. PCIe Gen4 at 16 GT/s offers twice that transfer rate of the PCIe Gen3, providing backwards compatibility and capability for future upgrade.

Mustang-V100-MX8

Accelerator with 8 Movidius Myriad X MA2485 VPU

Mustang-T100-T5

Accelerator with 5 Google Coral Edge TPUs

GPU Cards

Half-height, Half-length (HHHL)

Flexible Storage Options - M.2 NVMe & 2.5" SATA 6Gb/s

The PPC2-ADL series can accommodate both M.2 NVMe SSD and 2.5-inch SSD, providing flexible options for users with different data storage requirements. For applications that require real-time data processing and analysis such as machine learning, surveillance and industrial automation, the NVMe SSD slot interfacing via PCIe Gen3 x4 with 32Gbps bandwidth definitely is a great solution to adopt.

Upgradeable for Wi-Fi Device-to-Device Communication

The M.2 E key slot inside the panel PC supports PCIe Gen3 x1, USB 2.0 and CNVi computer bus interfaces, offering multiple options for you to choose the expansion module that best fit your budget and specification. For wireless expansion, the Intel CNVi connectivity is supported by the integrated processor and chipset of the {{ store.modelName }} to provide 6GHz dual-stream Wi-Fi 6E, Bluetooth 5.2 and UL MU-MIMO connectivity.

Dual 2.5GbE Low Latency LAN Ports Boost for Your Applications

Network Redundancy

With dual LAN port configuration, network redundancy can be achieved through the addition of alternate network paths. When the primary path is unavailable, the alternate path can be instantly deployed to ensure minimal downtime and continuity of network services.

Multiple Device Connections

The two full-speed 2.5 GbE LAN ports provide the industrial panel PC with more bandwidth to handle multiple connections to sensors, high-resolution cameras, the Internet, and other IoT devices with Ethernet connection.

2.5GbE High Bandwidth

2.5GbE is 2.5 times faster than standard Ethernet (1GbE), increasing network performance to boost productivity. Higher bandwidth allows connecting to devices that need intensive bandwidth, like high-resolution cameras and video streaming on playback quality of 4K/8K videos.

Abundant I/O Capabilities

I/O panel of the PPC2-ADL series panel PC with 5 serial ports / COM ports highlighted

5 Serial Ports with AFC Support

The panel PC equips four RS-232 ports and one RS-232/422/485 port to connect to legacy factory machinery and devices. Automatic Flow Control (AFC) is supported via RS-485, which ensures UART buffers are never overrun so data transmission between devices can be complete without the risk of losing data.

6 High-Speed USB Ports up to 10Gb/s

The PPC2-ADL is designed with six USB ports, allowing you to connect various devices with up to 10Gbps data transfer speed. The peripherals requiring high bandwidth such as high-resolution cameras, HIDs (human interface devices) and other edge IoT devices can all be connected through the reliable USB interfaces in providing better data collection and acquisitions.

I/O panel of the PPC2-ADL series panel PC with 6 USB ports highlighted

Industrial-grade Hardened Hardware Design

Ruggedized hardware architecture safeguards the panel PC in harsh, remote and dynamic environments.

  • -10°C to 60°C wide operating temperature
  • Operating: Shock: 5 G shock
  • Vibration: 3 axes, 10-500Hz, 60 mins/axis
  • Intel® Platform Trust Technology (Intel® PTT) to enable password protection, device authentication and cybersecurity

AC-In Power Maximizes Convenience and System Performance

The PPC2-ADL receives power directly from AC sources, forgoing additional power adapter and cable mess. Incorporating a built-in power supply with AC input not only simplify integration into factory facilities, but also deliver straight and high efficiency power for this robust panel PC.

Various Mounting Methods to Best Fit Your Needs

The {{ store.modelName }} features a 100x100 VESA mount design that allows you to mount it on a monitor stand or on a wall, depending on your specific needs. In addition, IEI develops a brand new way for panel mounting. It requires fewer clamps that can be easily fastened by hand.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Shortcut to boot device setup

Shortcut to boot device setupThe main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

touchable BIOS main menu of IEI panel PC
Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

touchable BIOS menu of IEI panel PC, with function keys on the side
On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

touchable BIOS menu of IEI panel PC, with on-screen keyboard

Ideal for Diverse Applications

Ideal for Diverse Applications

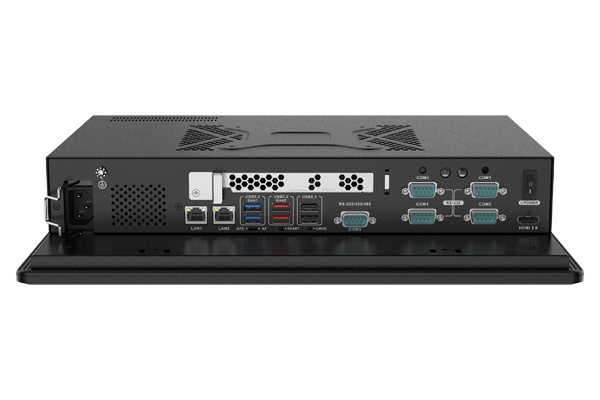

I/O Interfaces & Dimensions

  • 1
    AC input
  • 2
    AT/ATX switch
  • 3
    Reset button
  • 4
    Clear CMOS button
  • 5
    RS-232/422/485
  • 6
    4 x RS-232
  • 7
    HDMI™
  • 8
    2 x 2.5GbE LAN
  • 9
    2 x USB 5Gb/s
  • 10
    2 x USB 10Gb/s
  • 11
    2 x USB 2.0
  • 12
    PCIe Gen4 x16 slot
  • 13
    Power switch

Related Products

PPC2-C15-ADL

PPC2-C15-ADL

15'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor

PPC2-C17-ADL

PPC2-C17-ADL

17'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor

PPC2-C19-ADL

PPC2-C19-ADL

19'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor

PPC2-CW15-ADL

PPC2-CW15-ADL

15.6'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor

PPC2-CW19-ADL

PPC2-CW19-ADL

18.5'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor

PPC2-CW22-ADL

PPC2-CW22-ADL

21.5'' Heavy Industrial Panel PC powered by 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor


Hardware Spec.

System
CPU 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor (LGA1700) TDP 65W
芯片组 Intel H610
Memory Ext. Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX:64GB)
存储 1 x 2.5” SATA 硬盘位 (限高 7.5mm)
I/O Interface
网络 双 2.5GbE 网口,通过 Intel® I225V 驱动
扩展 1 x PCIe Gen4 x 16 扩展插槽, x16 信号
1 x M.2 E-Key 2242 (PCIe Gen3 x1 + CNVI)
1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x4)
Power
Power Supply
  • 交流输出 ATX 电源
  • 250 W 电源
    - 输入: 100V~240V AC, 47Hz-63Hz
    - 输出 (max.): 3.3V@6A, 5V@12A, 12V@17A, -12V@0.5A,+5Vsb@2A
  • 支持 AT/ATX 模式
  • 符合 ErP/EuP
Environment
工作温度 -10ºC ~ 60ºC
安规&电磁 CE, FCC Class A, UKCA
相对湿度 10% ~ 95%@40ºC, 无冷凝
存储温度 -20ºC ~ 60ºC
IP Level 前面板符合 IP 65
Physical Characteristics
机身颜色 黑色
安装方式 VESA 100, Panel, Wall, Rack, Stand and Arm
尺寸 (LxWxH) (mm) 378.5 x 303 x 76.16
Net Weight 5.715kg
Construction 铝质前面板和金属后盖
LCD
LCD 尺寸 15” (4:3)
分辨率 1024 (W) x 768 (H)
亮度 400 cd/m²
对比度 800 : 1
LCD 色彩 16.2M
像素间距 (mm) 0.297 x 0.297
可视角度 (H-V) 160°/150°
背光 MTBF 70,000 小时
Touch
触摸屏
  • 多点电容式触控屏 (抗紫外/防眩光,支持手套)
  • 表面硬度:7H
触控IC EETI 80 系列
Other Features
System Cooling 智能风扇 (2xCPU FAN, 2xSYS FAN)
TPM 英特尔® PTT 技术
I/O Interface
I/O 接口 4 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen1x1 (Type-A, 5Gb/s)
1 x HDMI™ (2.0, up to 3840*2160 @60Hz)
2 x LAN (英特尔® I225V 2.5GbE 控制 IC)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x Clear CMOS Button
2 x USB 3.2 Gen2x1 (Type-A, 10Gb/s)
OS Support
OS Support Windows 10 IoT
Linux

Ordering Information

PPC2-C15-ADL-i7/8G-R10 15" 450 cd/m² 1024x768 Panel PC with 12th Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz),TDP 65W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C15-ADL-i5/8G-R10 15" 450 cd/m² 1024x768 Panel PC with 12th Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz),TDP 65W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C15-ADL-i3/8G-R10 15" 450 cd/m² 1024x768 Panel PC with 12th Intel® Core™ i3-12100 Processor (12M Cache, up to 4.30 GHz),TDP 60W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C15-ADL-P/8G-R10 15" 450 cd/m² 1024x768 Panel PC with 12th Intel® Pentium® Gold G7400 Processor (6M Cache, 3.70 GHz),TDP 46W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10

Package Contents

Package Content
  • 1 x PPC2-C15-ADL

  • 1 x 电源线

  • 1 x 面板安装套件

  • 1 x 螺丝包

  • 1 x QIG
