NANO-ADL-P

EPIC SBC 支持 Intel® Alder Lake-P Core™ i7/i5/i3 和 Celeron® 处理器，默认板载 8GB LPDDR4x 内存，主板带有双 HDMI™、DP、IDPM、M.2 A key、M.2 B key、USB 3.2、SATA 6Gb/s、COM、IAUDIO、以及用于riser card 的 PCIe x4, 符合RoHS

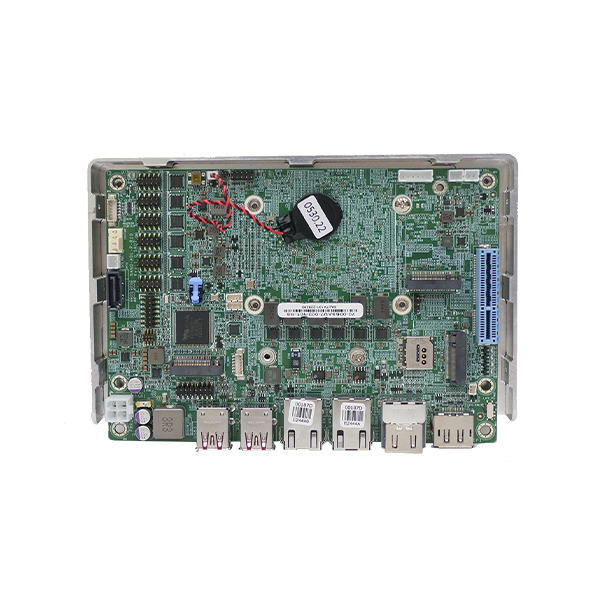

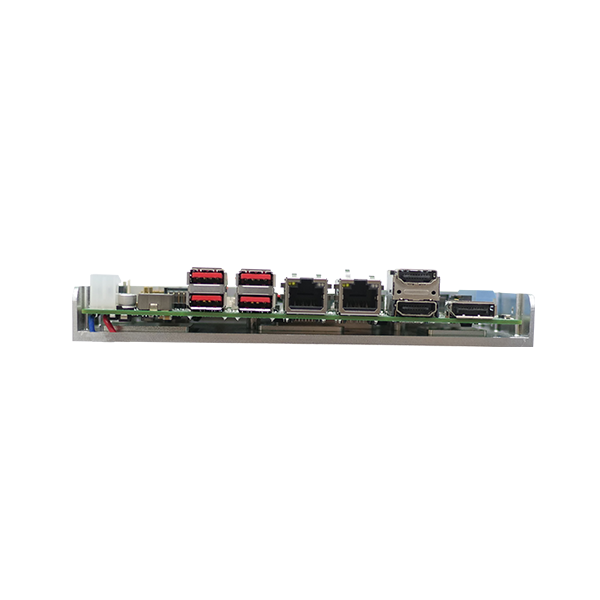

NANO-ADL-P IO

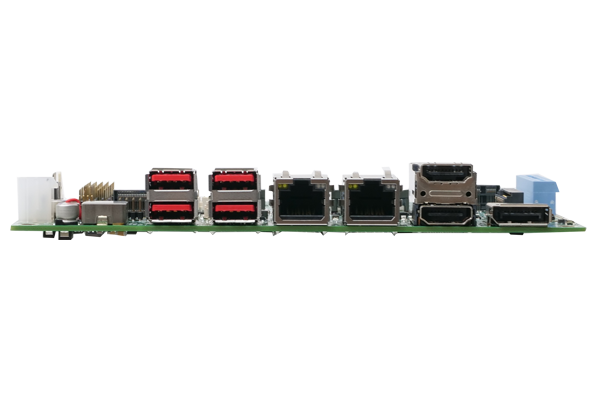

NANO-ADL-P IO

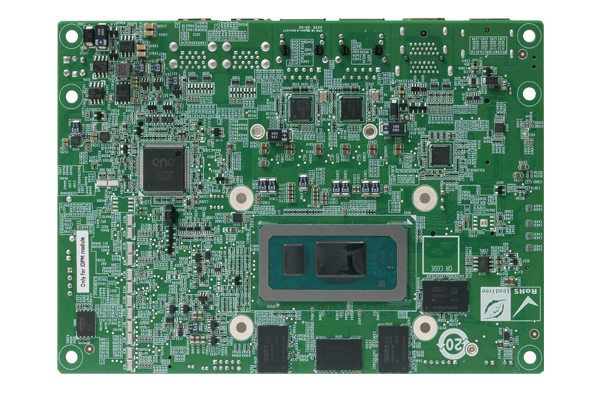

NANO-ADL-P Back

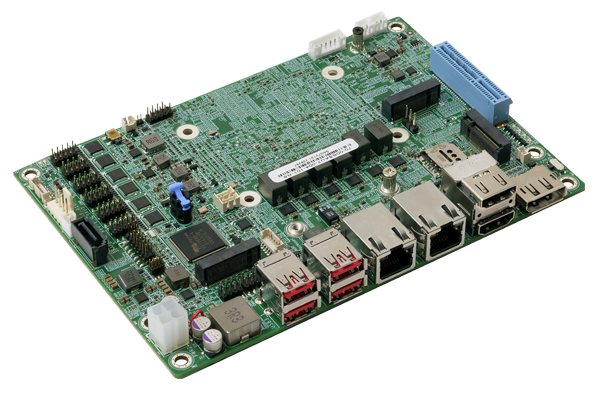

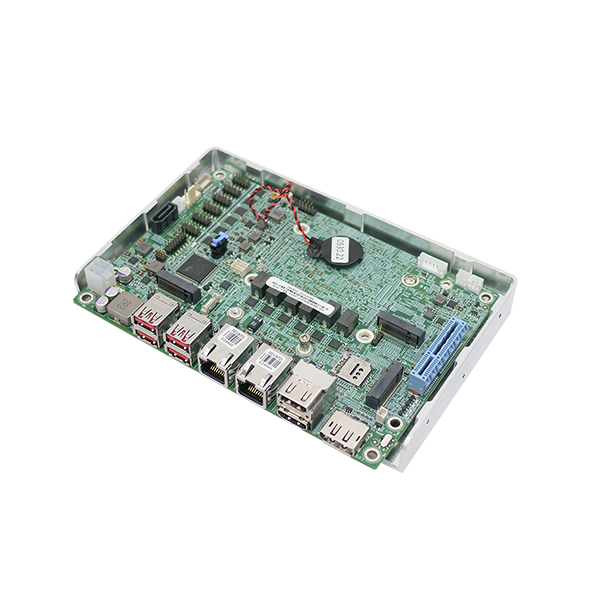

NANO-ADL-P Side
NANO-ADL-P Side
  • NANO-ADL-P IO
  • NANO-ADL-P IO
  • NANO-ADL-P Back
  • NANO-ADL-P Side
  • NANO-ADL-P Side
» 支持12代 Intel® mobile AlderLake-P on board SoC
» 板载LPDDR4x 3200 MHz 8GB内存，内存上限为16GB
» 支持两路HDMI™、一路DP和一个iDPM插槽，四路独立显示
» 支持PCIE X4、M.2 B key和M.2 A key扩展
» 支持两个2.5GbE 网口，使用Intel® i225-V 芯片

Specifications

Hardware Spec.

尺寸类型
尺寸类型 EPIC SBC
系统
CPU 第 12 代Intel® 移动 Alder Lake-P 板载 SoC
内存 板载LPDDR4x-3200Gbps 8GB，内存上限 16GB
内存上限 16GB
物理特性
尺寸 (LxWxH) (mm) 115 mm x 165 mm
净重 400g
存储
存储 1 x SATA (6Gb/s)
I/O 接口
显示输出 2 x HDMI™ : 高达 4096x2160 @ 30Hz
1 x Display Port : 高达 4096 x 2160 @ 60Hz
1 x iDPM : 支持iEi eDP/ LVDS/ VGA 模块
网络 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
音频 1 x HD Audio : 1 x IAUDIO, 支持 IEI AC-KIT-888S 音频模块 (2x5 pin)
I/O接口 4 x 内部RS-232 (2x5 pin, P=2.0)
2 x 内部RS-232/422/485 (2x5 pin, P=2.0)
4 x 内部 USB 2.0 (2x4 pin, P=2.0)
4 x 外部 USB 3.2 Gen2x1 : 10Gb/s(Type A)
扩展 1 x PCIe x4 (PCIe Gen3 x4)
2 x M.2(NGFF) -
1 x M.2 A Key for Wi-Fi & BT 2230 (PCIe Gen3 x 1 & USB 2.0)
1 x M.2 B Key W/ SIM Header (PCIe x2) 3042/2280
电源
电源功耗 12V@4.62A
(第 12 代 Intel® Core™ i7-1265UE CPU，8 GB 3200 MHz LPDDR4x 内存，最大值加载，启用 EuP 模式)
电源供电 ATX/AT电源
支持AT/ATX模式
符合 ErP/EuP
环境
操作温度 0°C~60°C
存储温度 -30°C~70°C
Humidity 5% ~95%, 无冷凝

Ordering Information

NANO-ADL-P-i7C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i7-1255U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-i5C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i5-1235U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-i3C-R10 EPIC SBC supports Intel® Alder Lake-P Core™ i3-1215U processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS
NANO-ADL-P-CC-R10 EPIC SBC supports Intel® Alder Lake-P Celeron® 7305 processor with 8GB LPDDR4x memory on board default, with Dual HDMI™,DP,IDPM,M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, IAUDIO,PCIe x4 for riser card and RoHS

Package Contents

Package Content

  • 1 x NANO-ADL-P 单板电脑

  • 1 x SATA 线材

  • 1 x QIG
