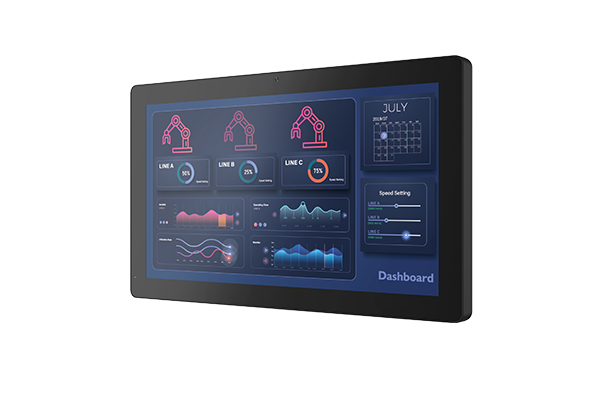

The AFL3-ADLP, a remarkable addition to IEI's AFOLUX series, is a fanless panel PC that boasts an appealing design tailored for the light industrial markets. Equipped with a powerful 12th Gen Intel Core processor, this panel PC ensures seamless performance even in demanding applications. With 8GB DDR4 memory, expandable up to 32GB, it offers ample space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for enhanced user experience and a wide range of I/O ports for connectivity convenience. Its inclusion of Wi-Fi 6E and Bluetooth 5.2 guarantees fast and reliable wireless communication, while the dual 2.5G LAN enables efficient data transfer. Additionally, the AFL3-ADLP series supports IEI IRIS2 modules, providing an IPMI 2.0 solution for efficient remote management that ensures optimal performance and minimizing downtime.
12th Gen. Intel Core Processor
10-point AG PCAP Touch with Anti-UV
Wi-Fi 6E &
Front Panel IP64
IoT Deployment Made Easy with Wireless Network Capability
The Internet of Things (IoT) encompasses various applications that have different connectivity requirements, necessitating both high bandwidth and low power and latency capabilities. The expansion of Wi-Fi into the 6 GHz band is crucial for supporting IoT devices in industrial settings worldwide, providing the necessary additional spectrum for Wi-Fi usage. The AFL3-ADLP industrial panel PC is equipped with an Intel® AX210 wireless module, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing businesses to work smarter, optimize processes, and unlock new possibilities for growth and innovation.
Intel Wi-Fi 6E Technology
Maximized 6GHz 2400Mbps speed, high reliability
160MHz channels, ultra-low latency
Improved speed and coverage
Support IPMI 2.0 for Out-of-band Management
The panel PC offers a range of advanced features, including the ability to provide IPMI 2.0 based remote management through the installation of an IEI IRIS2-2600 module. This allows for efficient out-of-band management, giving administrators easy access to the panel PC via the dedicated IPMI RJ45 port. With this functionality, administrators can perform tasks such as hardware health monitoring, secure remote KVM or virtual media access, and even remotely control power settings.
2.5GbE Connectivity - A Cost-Effective Solution for High-Bandwidth Workloads
With its two RJ45 LAN ports, the industrial panel PC offers 2.5GbE connectivity, allowing for a significant improvement in network performance. This enhanced speed is particularly beneficial for large-scale workloads that require high bandwidth. It allows users to achieve ultra-fast speeds without the need for cable changes, making it a cost-effective and efficient solution. With its backward compatibility and numerous benefits, 2.5G Ethernet is poised to become the go-to choice for businesses seeking to upgrade their network infrastructure and achieve lightning-fast internet speed.
PCAP Touch Screen with High Sensitivity, Visibility and Durability
With glass-glass PCAP touch technology and industrial-grade controllers, IEI's rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.
The 10-point touch enables the screen to detect and respond to multiple and complex touch inputs, even when the user is wearing gloves or has wet hands.
Our PCAP touchscreen has an anti-glare and anti-UV coating that prevents reflection and scratches, making it suitable for outdoor and bright light environments. It also has a high transmission rate of 87%, which ensures clear and bright images and text.
The 7H scratch-resistant and UV-resistance strong glass protect the screen from physical and environmental damage.
- Blocks UV wavelengths less than ≈340nm
- Meets ASTM G154 performance criteria Cycle 1
Reliable Quality, Stable in Harsh Environment
The AFL3-ADLP industrial panel PC is designed to be fanless and IP64-rated, which means it has no moving parts and its front panel is resistant to dust and water splashing. This makes it ideal for harsh and challenging environments, where noise, heat, and moisture can affect the performance and lifespan of conventional devices. The fanless and IP64-rated panel PC offers a silent, reliable, and durable solution for industrial applications.
Quiet operation, free from dust accumulation, and no moving parts that can wear out
IP64 Front Panel
Withstands harsh environment, and prevents damage from dust or water ingress
0~50°C Operating Temp.
High and low temperature resistance
Dual M.2 NVMe and 2.5" SATA 6Gb/s – The Ultimate Storage Combination for Speed and Capacity
The AFL3-ADLP series provides flexible storage solutions to cater to diverse data storage requirements. It offers compatibility with both M.2 NVMe SSD and 2.5-inch SSD, enabling users to select the option that aligns with their specific needs. For real-time data processing and analysis in applications such as machine learning, surveillance, and industrial automation, the NVMe SSD slot emerges as an optimal choice, boasting a PCIe Gen4 x4 interface and impressive 64Gbps bandwidth that delivers exceptional performance capabilities.
Advanced Audiovisual Features for Better Collaboration and Productivity
The AFL3-ADLP series offers a range of impressive audiovisual features that make it a versatile and efficient tool for various industries. The audiovisual features of the AFL3-ADLP series allow for remote monitoring and control of industrial processes, offering real-time insights that improve efficiency and safety. Moreover, its ability to provide interactive and multimedia content makes it suitable for applications in factory automation, retail, digital signage, transportation, and surveillance. With all these features integrated into one compact and rugged system, the industrial panel PC not only saves space but also reduces costs and maintenance.
Customize Your Installation with Various Mounting Options
The AFL3-ADLP series features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

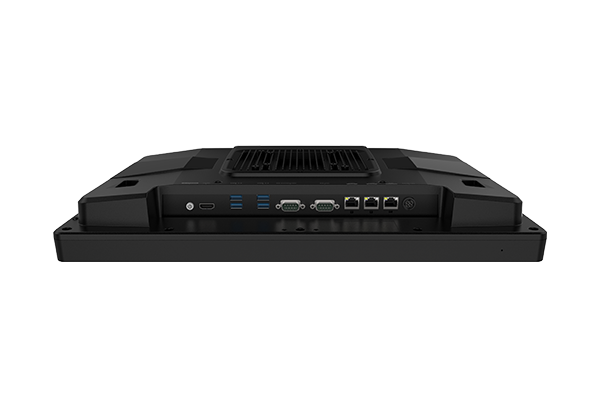

- 1Power Button
- 2RS-232/422/485 (COM1)
- 3RS-232 (COM2)
- 42.5GbE LAN1
- 52.5GbE LAN2
- 84 x USB 3.2 Gen 1
- 9Reset Button
- 10Clear CMOS Button
- 11AT/ATX Switch
- 1212V DC Input
- 13Digital Microphone
|第十二代 Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
两个 260-pin 3200 MHz 双通道DDR4 SO-DIMM
|1 x 2.5” SATA 硬盘位
|IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
网口一: 通过Intel® I225 LM驱动
网口二: 通过Intel® I225V驱动
|AMP 3W + 3W (内部扬声器)
2 x M.2 M Key 2280 (PCIe Gen 3 x4)
1 x M.2 B KEY (PCIe x1 or SATA) for IPMI
1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
|0ºC ~ 40ºC
|CE, FCC (Class A) , UKCA
|10% ~ 90% (无冷凝)
|-20ºC ~ 60ºC
|Panel, Wall, Stand and Arm VESA 75 /100mm
|Construction Front Panel
|PC + ABS 塑料
|1920 x 1080 (16:10)
|800 : 1
|PCAP with USB interface (anti-UV/AR coating)
|1 x RS-232 (by DB9)
|1 x RS-232/422/485 (by DB9)
|4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
|1 x HDMI™ (2.0 (高达 3840*2160 @60Hz))
|2 x LAN (英特尔® I225V 2.5GbE控制IC)
|1 x Reset Button
|1 x AT/ATX switch
|1 x Clear CMOS Button
|4 x USB 3.2 Gen1x1 (Type-A (10Gb/s))
|Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
|Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
|Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
