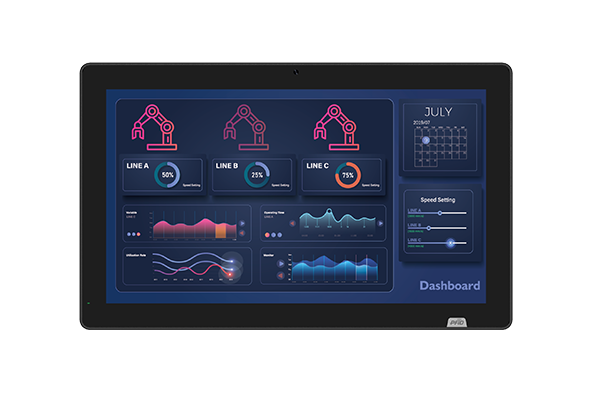

AFL3-W19C-ADLP

18.5寸无风扇平板电脑,搭载英特尔®Alder Lake P处理器

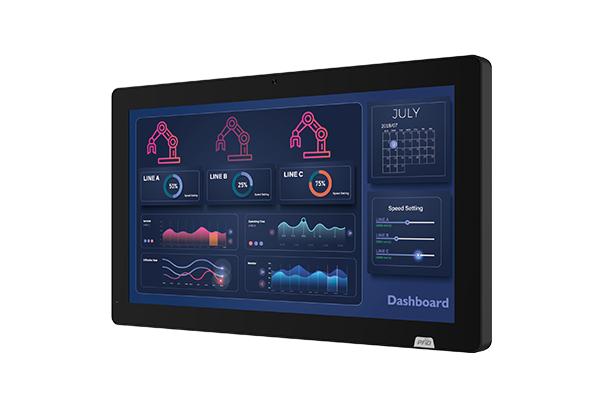

AFL3-W15C-ADLP Right

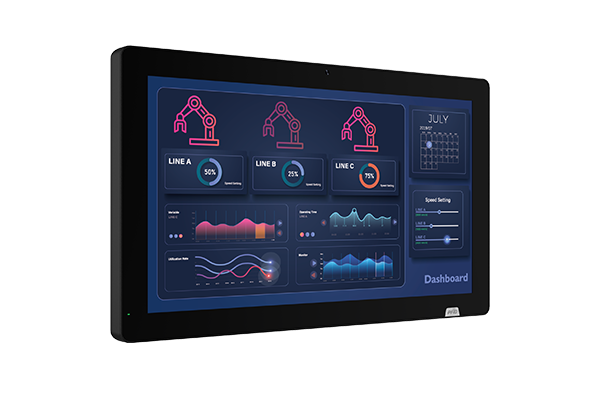

AFL3-W15C-ADLP Left

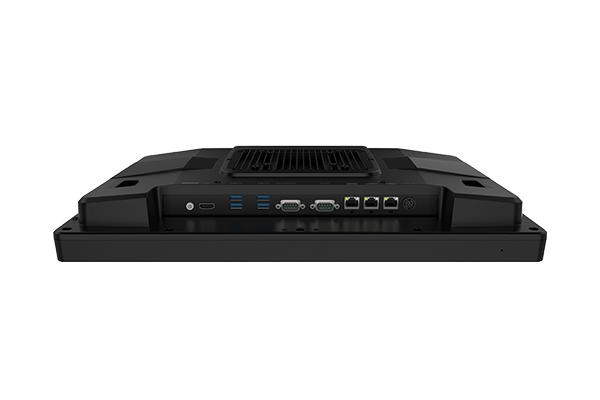

AFL3-W15C-ADLP IO
AFL3-W15C-ADLP Back
  • AFL3-W15C-ADLP Right
  • AFL3-W15C-ADLP Left
  • AFL3-W15C-ADLP IO
  • AFL3-W15C-ADLP Back
» 第十二代英特尔Intel® Core™ Mobile i7/i5/i3处理器
» 全高清电容触控屏
» 具备防眩光和防紫外的电容触控屏
» 支持额外连接器接口的E-Window
» 支持WiFi 6E 和蓝牙 5.2

Hardware Spec.

System
CPU 第十二代 Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P)
Memory Ext. 两个 260-pin 3200 MHz 双通道DDR4 SO-DIMM
(8G预安装,可达32GB)
存储 1 x 2.5” SATA 硬盘位
Communication
无线 IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
I/O Interface
网络 网口一: 通过Intel® I225 LM驱动
网口二: 通过Intel® I225V驱动
Audio AMP 3W + 3W (内部扬声器)
扩展 2 x M.2 M Key 2280 (PCIe Gen 3 x4)
1 x M.2 B KEY (PCIe x1 or SATA) for IPMI
1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
音频编解码器 ALC888S
Power
Power Supply 12V直流
Environment
工作温度 0ºC ~ 40ºC
安规&电磁 CE, FCC (Class A) , UKCA
相对湿度 10% ~ 90% (无冷凝)
存储温度 -20ºC ~ 60ºC
IP Level 前面板符合IP64
Physical Characteristics
机身颜色 黑色
安装方式 Panel, Wall, Stand and Arm VESA 75 /100mm
Construction Front Panel PC + ABS 塑料
LCD
LCD 尺寸 18.5”
分辨率 1920 x 1080 (16:10)
亮度 350 cd/m²
对比度 1200 : 1
可视角度 (H-V) 170°/170°
背光 MTBF 50000小时
Touch
触摸屏 PCAP with USB interface (anti-UV/AR coating)
触控IC EXC3160
I/O Interface
I/O 接口 1 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
1 x HDMI™ (2.0 (高达 3840*2160 @60Hz))
2 x LAN (英特尔® I225V 2.5GbE控制IC)
1 x Reset Button
1 x AT/ATX switch
1 x Clear CMOS Button
4 x USB 3.2 Gen1x1 (Type-A (10Gb/s))

Ordering Information

AFL3-W19C-ADLP-i7/8G-R10 Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
AFL3-W19C-ADLP-i5/8G-R10 Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS
AFL3-W19C-ADLP-i3/8G-R10 Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS

Package Contents

Package Content
  • 1 x AFL3-W19C-ADLP

  • 1 x 电源线

  • 1 x 电源适配器

  • 1 x 使用指南
