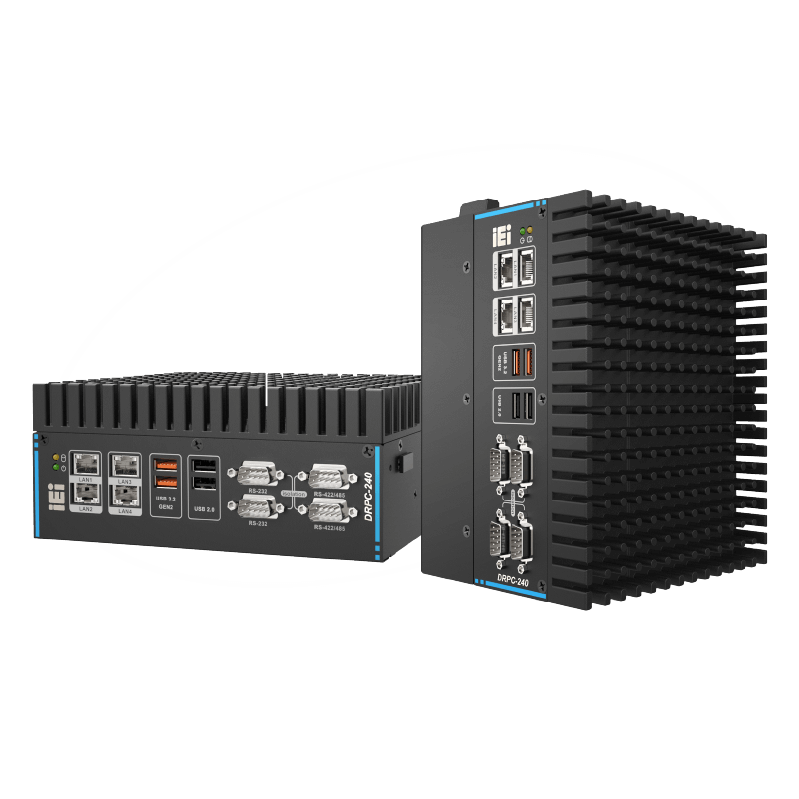

The DRPC AIoT Dev. Kit is equipped with powerful 11th Gen. Intel® Core™ processor (Tiger Lake-UP3) which has up to 23% faster single thread performance, and up to 19% faster multi-thread performance. The dev. kit is very compact in size, and supports four 2.5GbE ports with optional PoE function for high data transmission speed. Moreover, its modular design allows users to easily expand extra I/O interfaces and add an AI PCIe accelerator card, the Mustang-V100, to improve AI computing performance.
Additionally, the DRPC Dev. Kit is integrated with Intel® Iris® Xe graphics, which offers great GPU computing capability with up to 96EUs and 2.95 times faster graphics performance. Powered by Intel® Distribution of OpenVINO™ toolkit and VNNI technology to improve AI performance, you can enjoy next-gen AI amazement in automation, smart retail and computer vision.
Powered by 11th Gen 10nm Intel® Core™ processor (Tiger Lake-UP3)
Slim and compact size for easy deployment
Support four 2.5GbE RJ-45 ports and PoE power module
Support Vector Neural Network Instruction (VNNI), and pre-installed with Intel® Distribution of OpenVINO™ toolkit
Rich I/O expansion interface and a PCIe x4 slot for add-on cards to meet any demand

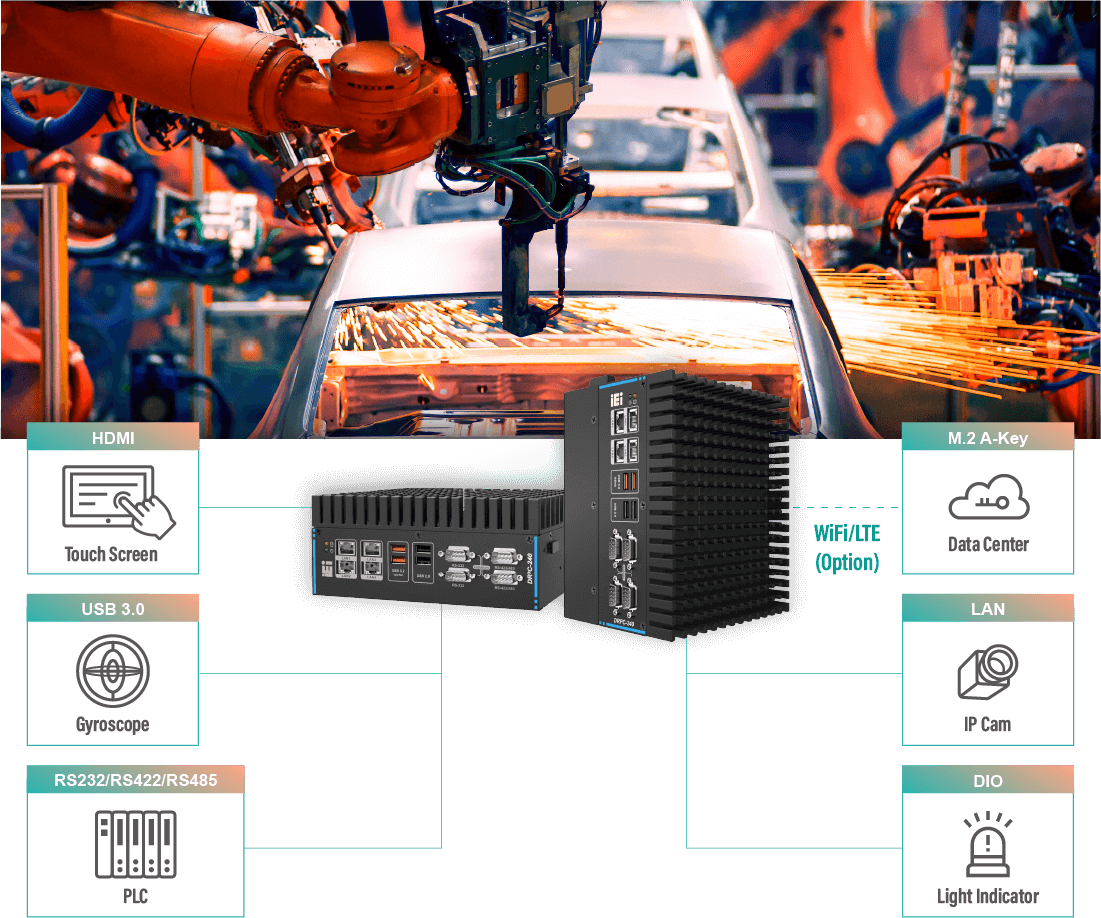

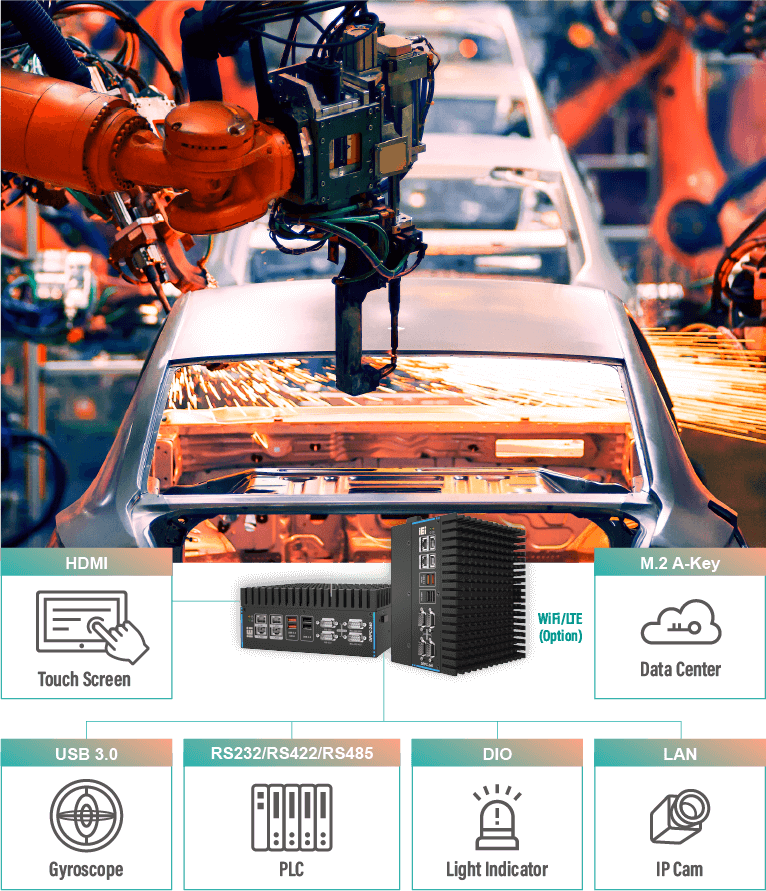

The requirement of robotic arm control includes faster connection speed, larger bandwidth and extremely time-accurate execution. Now, combining rich I/O interfaces of IEI DRPC Dev. Kit, you can connect various devices easily, incorporate multiple network protocols smoothly and enhance the motion accuracy.

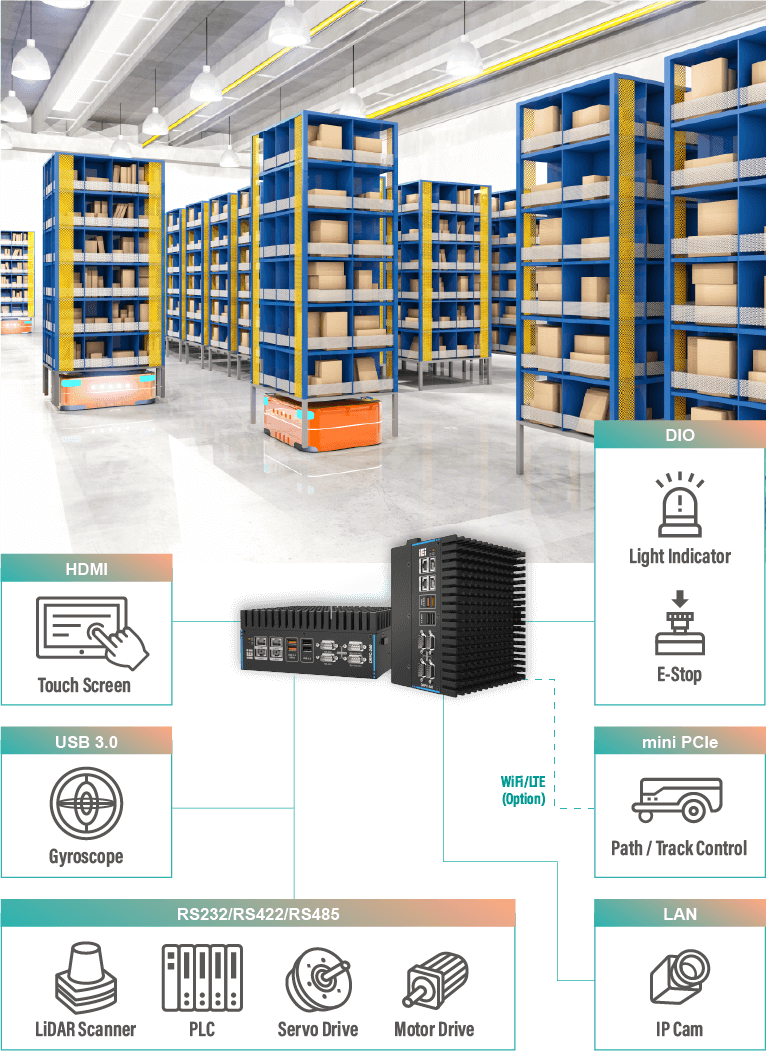

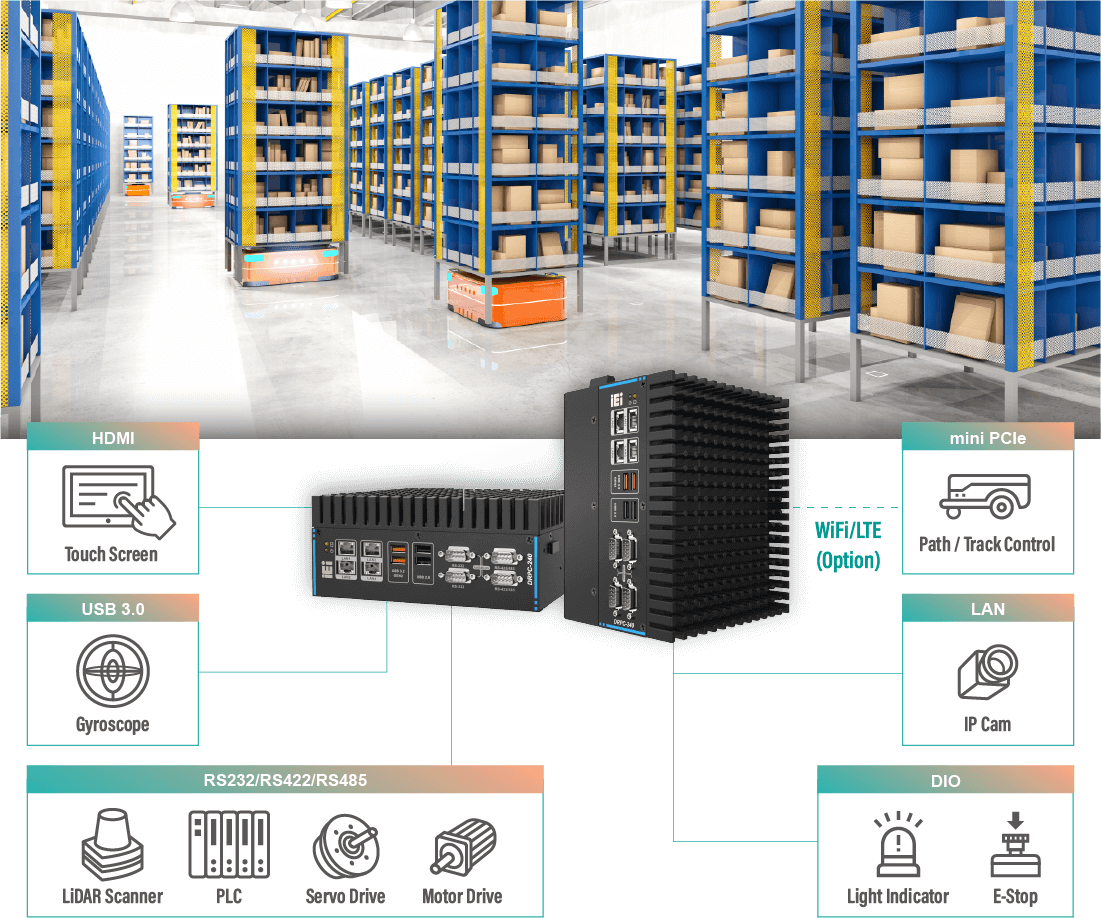

In the AMR (Autonomous Mobile Robot) solution, IEI DPRC Dev. Kit can support mobile robots to reach the perfect timing between conveyor and produced items. It is also integrated with Intel® Distribution of OpenVINO™ toolkit to optimize the vision computing performance. The DPRC Dev. Kit is able to provide high accuracy and workload efficiency in the robotic solution more than ever.
AMR Solution
Robotic Arm Solution

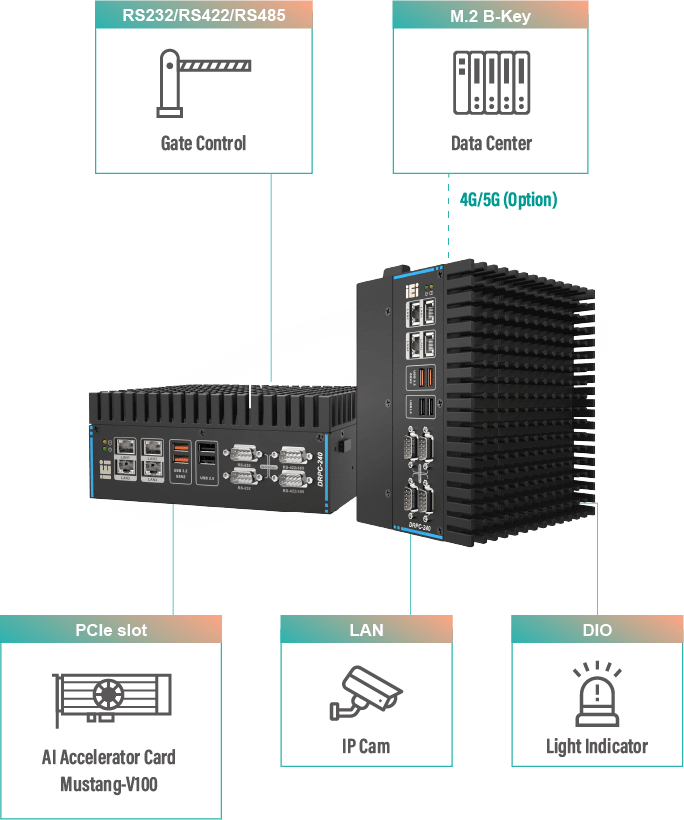

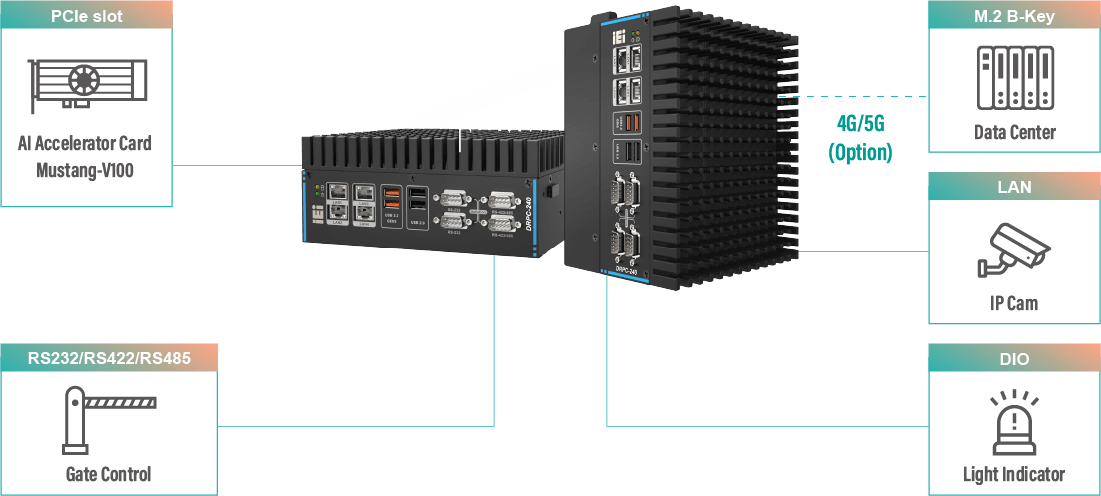

The DRPC Dev. Kit can integrate with four IP cameras and the optional PoE function receiving both power and data through one cord for less cabling and less cost. Its expansion layer provides additional I/O interfaces and supports a PCIe x4 slot for add-ons such as IEI AI accelerator cards (Mustang-V100-MX8).

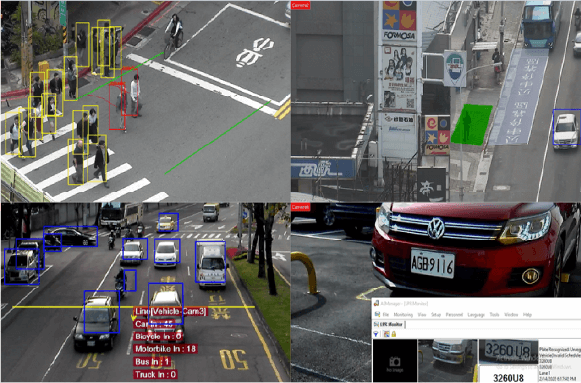

With compact size design, it can be easily deployed in space-limited applications like electronic toll collection or traffic control box. The solution speeds up project detection, image segmentation of license plates, and recognition of vehicle models and colors.
The DRPC Dev. Kit is a compact, lightweight system ideal for retail management
solution. It can integrate with four IP cameras for customer management to check
social distancing, ensure customers comply with mask policy, and monitor the
numbers of people. Yon can also opt for the PoE function to reduce cables and cost.
Moreover, by implementing its modular design, you can install add-on cards and
expand I/O interfaces to meet you requirement, such as the Mustang-V100 that
accelerates the image inference computing capability.

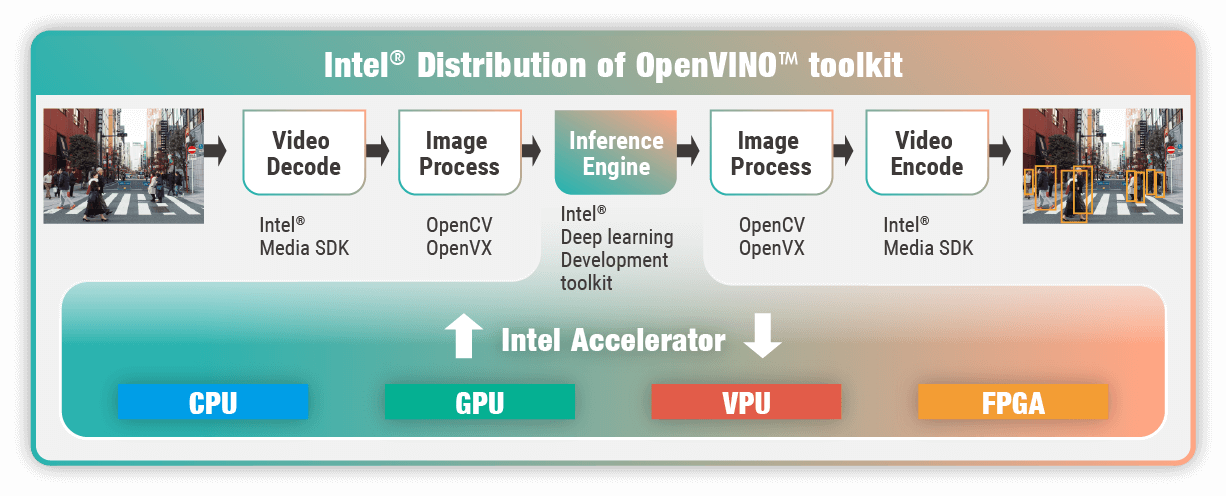

Intel® Distribution of OpenVINO™ toolkit is based on convolutional neural networks (CNN); the toolkit extends workloads across multiple types of Intel® platforms and
maximizes performance.
It can optimize pre-trained deep learning models such as Caffe, MXNET, and Tensorflow. The tool suite includes more than 20 pre-trained models, and supports 100+ public and custom models (including Caffe, MXNet, TensorFlow, ON NX, Kaldi) for easier deployments across Intel® silicon products (CPU, GPU/Intel® Processor Graphics, FPGA, VPU).
Computer vision, deep learning developers
Data scientists
OEMs, ISVs, system integrators
| Model | DRPC AIoT Dev. Kit |
| Form Factor | |
| Dimensions |
190x150x81 mm (DRPC-240AI-i5CS) 190x150x126 mm (DRPC-240AI-i5C) |
| System Fan |
Fanless (DRPC-240AI-i5CS) Fan (DRPC-240AI-i5C) |
| Motherboard | |
| CPU | Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad core, TDP 12 ~ 28W) |
| Chipset | SoC |
| System Memory | 2 x SO-DIMM DDR4 3200MHz (8GB pre-installed) |
| HDD Drive | |
| Hard Drive | 1 x 2.5’’ SATA 6Gb/s HDD/SSD bay (256GB SSD pre-installed) |
| I/O Interfaces | |
| USB | 2 x USB 3.2 Gen 2 2 x USB 2.0 |
| Ethernet | 1 x RJ-45 PCIe 2.5 GbE by Intel® i225LM 3 x RJ-45 PCIe 2.5 GbE by Intel® i225V (colay i225LM) (PoE at power board optional) |
| COM | 2 x RS-232 (DB9 with 2.5KV isolation) 2 x DB9 RS-422/485 with AFC (DB9 with 2.5KV isolation) |
| DIO | 1 x 12-bit digital I/O (6-IN/ 6-OUT)(pin header) |
| Display | 1 x lockable HDMI (up to 3840 x 2160 @ 30Hz) 1 x DP++ (up to 4096 x 2160 @ 60Hz) |
| TPM2.0 | Support Intel PTT |
| Expansion Slots | |
| Expansion Slots | M.2: 1 x 2230 A-key (PCIex1/USB 2.0) 1 x 3042/52/80 B-key (PCIex2/USB 3.2 Gen1/USB 2.0) with sim slot |
| Backplane: 1 x PCIe 3.0 x4 (DRPC-240AI-i5C only) |
|
| Others | |
| Indicator | 2 x LED (HDD, Power) |
| Button | 1 x Power button 1 x Reset button 1 x AT/ATX switch 1 x Remote power connector |
| Power | |
| Power Input | 3-pin terminal block: 12 ~ 28 VDC |
| Remote Power | 2-pin terminal block |
| Reliability | |
| Mounting | DIN-rail |
| Operating Temp | -20°C ~ 70°C with air flow (with SSD) |
| Storage Temp | -40°C ~ 85°C |
| Humidity | 10% ~ 95%, non-condensing |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| Operating Vibration | MIL-STD-810G 514.6C-1 (with SSD) |
| Weight (Net/Gross) | 1.5 kg/ 2.9 kg (DRPC-240AI-i5CS) 1.9 kg/ 3.3 kg (DRPC-240AI-i5C) |
| Safety/EMC | CE/FCC |
| OS | |
| Supported OS | Windows 10, Linux |
| Part No. | Description |
| DRPC-240AI-i5C-R10 | Fanless embedded system, Intel®Tiger Lake-U i5-1145G7E 1.5GHz (quad core), 8GB DDR4 pre-installed, HDMI/ DP, 4x 2.5GbE LAN, 4x COM, DIO, 12~28VDC, 256GB SSD, 120W power adaptor, PCIe x4 extension layer, RoHS |
| DRPC-240AI-i5CS-R10 | Fanless embedded system, Intel®Tiger Lake-U i5-1145G7E 1.5GHz (quad core), 8GB DDR4 pre-installed, HDMI/ DP, 4x 2.5GbE LAN, 4x COM, DIO, 12~28VDC, 256GB SSD, 120W power adaptor, RoHS |
| Part No. | Description |
| Mustang-V100-MX8-R20 | Computing Accelerator Card with 8 x Movidius Myriad X MA2485 VPU, PCIe Gen2 x4 interface, RoHS |
| 1 x Chassis Screw | 1 x DIN-rail Mounting Kit | 1 X QSG | 1 x 120W Adapter | 1 x Power Cord |
