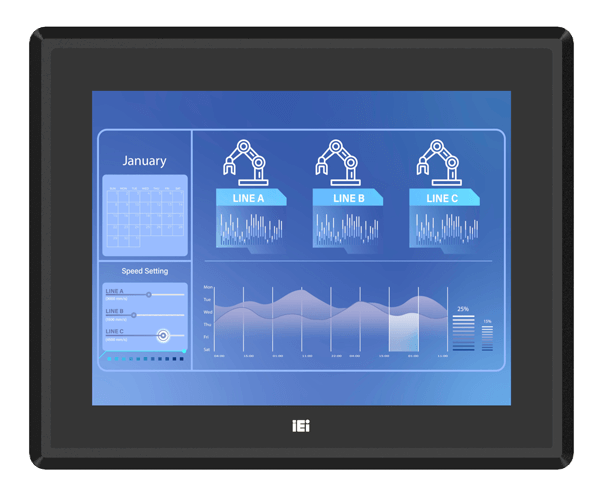

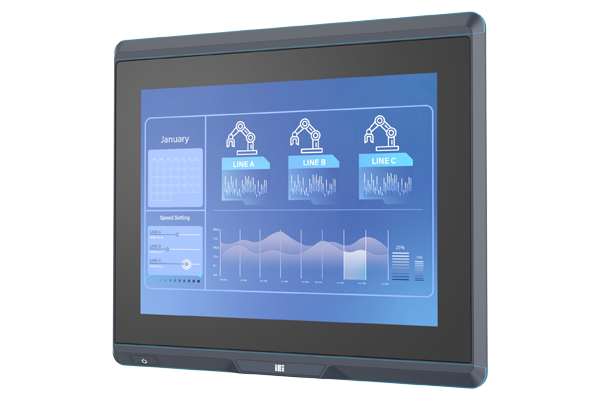

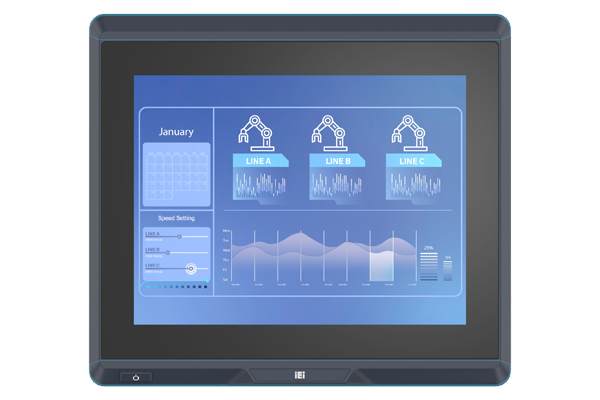

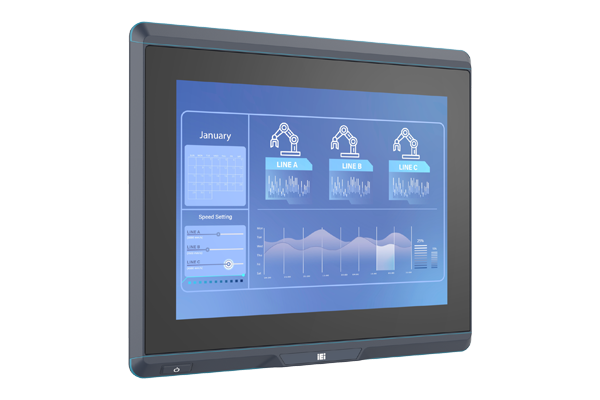

12.1" IP66 Heavy Industry Panel PC
The UPC-F12M1 series is specifically designed for demanding industries such as vehicle computing in mining, agriculture, and logistics. Equipped with a 12.1" TFT-LCD true flat design, powered by the Intel® Core™ i3-1315URE processor, and 8GB LPDDR4x memory, this rugged industrial PC offers comprehensive IP66 dust and waterproof protection with M12 connectors and meets MIL-STD-810H standards. It ensures reliable performance even in harsh environments, including bright sunlight, rain, snow, and rough terrain.
13th Gen Intel® Core™
Full IP66
M12 I/O Connectors
CAN Bus
Fanless
Wi-Fi 6 / BT 5.2 / RFID Ready
-20°C ~ 60°C Wide Temp
10-point AG PCAP Touch with Anti-UV
Uncompromising Performance with 13th Gen.
Intel® Core™ i3 Processor
Powered by the formidable 13th Gen. Intel® Core™ i3-1315URE processor, this panel PC delivers uncompromising performance with a maximum of 6 cores and a burst frequency of 4.5GHz, coupled with Intel® UHD Graphics for smooth multitasking and stunning visuals.
Seamless Vehicle Integration with CAN BUS
The industrial Panel PC is compatible with CAN 2.0 A/B, which permits the system to tap into a vehicle’s CAN Bus network, the central nervous system of vehicles, connecting the various electrical components of the vehicle to one another.
Full IP66 Rated Ingress Protection
The UPC-F12M1 features full IP66-rated enclosure, providing unparalleled protection against dust, water, and even powerful jets of water from any direction. Its all-around IP66 ingress protection make it ideal for factories, workshops, or any harsh environmental conditions.
Three Different I/O Interfaces
Versatile connectivity with standard IO, quick cable entry for easy maintenance, and robust M12 connectors for industrial reliability. Ideal for diverse applications.
Standard IO Connectors
Options including USB, Ethernet, and serial ports. Suitable for general-purpose applications.
Customized M12 I/O selection
The order of interfaces can be customized according to requirements.
M12 IO Connectors
Offer robust and secure connections that are suitable for industrial environments, ensuring reliable data transmission and power supply.
* Standard IO connectors type and quick cable entry type, please contact the sales representative for more information.
Seamless Connectivity: Wi-Fi, Bluetooth, and RFID Ready
Unleash the power of connectivity with Wi-Fi, Bluetooth, and RFID capabilities, integrated with embedded antennas for seamless communication. With 2.5G Ethernet via the Intel I225-LM controller, this panel PC offers lightning-fast network connectivity, ensuring rapid data transfer and real-time communication.
Corrosion-Resistant Full Die-Cast Aluminum Housing for Efficient Heat Dissipation
The aluminum die-cast housing provides durability, corrosion resistance, and thermal conductivity, ideal for industrial use, outperforming plastic. The structure is more standard and the whole is compact.
Responsive Touch Control
The 10-point PCAP touchscreen offers high transmission rates, sensitive response, zero lag, no blind spots, and excellent stability.
10-Point Touch
Gloves Operation
AG Coating
Anti-UV
7H Scratch-Resistant
Extended Operating Temperature and Wide DC Power Input
The UPC-F12M1's wide temperature tolerance, from -20°C to 60°C, and wide-range power input (9V~36V) make it ideal for industrial environments. These capabilities ensure reliable operation across extreme temperatures and accommodate fluctuations in power supply, guaranteeing uninterrupted functionality in challenging conditions.
DC-In Support ACC Mode
Electronic equipment usually cannot withstand short-term start-up and shutdown. At the same time, the voltage at the moment when the engine is started may even soar. Many equipment are damaged in this situation. IEI ACC mode can offer protection mechanism to void equipment damage.
- ACC Enable mode, UPC will delay boot up / shut down automatically
- ACC Disable mode, UPC is standard AT/ATX DC-in
Heavy Duty Vehicle Market
Manufacturing Production Control
Warehouse Management
Mining Production Control
Production Management
Smart Port
Smart Agriculture

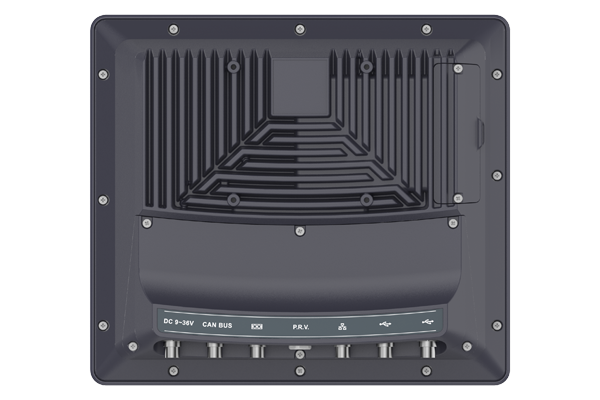

I/O Interface
- 1RS-232/422/485
- 22 x USB 2.0
- 32 x USB 2.0
- 42.5GbE LAN
- 5CAN Bus
- 69V~36V DC-IN
Dimensions
Hardware Spec.
| System | |
|---|---|
| CPU | 第十三代 Intel® Core™ Mobile i7/i5/i3 Processors (Raptor Lake-P) |
| Memory Ext. | 双通道板载 8GB LPDDR4x |
| 存储 | 1 x M.2 M key 2280 (PCIe Gen3 x4) |
| Communication | |
| 无线 | IEEE 802.11 a/b/g/n/ax, Bluetooth V5.2 (选配) |
| Power | |
| Power Supply | 9 ~ 36V DC-in 终端端子支援 ACC 模式 |
| Environment | |
| 工作温度 | -20°C ~ 60°C |
| 安规&电磁 | CE/FCC/UKCA |
| 相对湿度 | 10% ~ 90% (无冷凝) |
| 存储温度 | -20°C ~ 70°C |
| IP Level | 全机身符合 IP66 防护等级 |
| Physical Characteristics | |
| 机身颜色 | 黑色 |
| 安装方式 | VESA 100mm x 100mm |
| 尺寸 (LxWxH) (mm) | 316 x 279 x 67 |
| Net Weight | 5kg |
| Construction | Aluminum die-casting |
| Expansion Slots | |
| Expansion Slots |
1 x M.2 B key 3042/3052/3080 (SATA & PCIe Gen3 x1 & USB 3.0) 1 x M.2 M key 2280 (PCIe Gen3 x4) |
| LCD | |
| LCD 尺寸 | 12.1” |
| 分辨率 | 1024 x 768 (4:3) |
| 亮度 | 600 cd/m² |
| 对比度 | 1000:1 |
| LCD 色彩 | 16.7M |
| 可视角度 (H-V) | 178°/178° |
| 背光 MTBF | 50000小时 |
| Touch | |
| 触摸屏 | PCAP with USB interface (anti-UV/AR coating) |
| 触控IC | ILI2520 |
| I/O Interface | |
| I/O 接口 | 1 x CAN-bus (8pin M12A MALE) |
| 1 x RS-232/422/485 (8pin M12A MALE) | |
| 2 x USB 2.0 (8pin M12A MALE) | |
| 1 x LAN (8pin M12X MALE / 2.5GbE) | |
| 1 x DC Input Jack (5pin M12A MALE) | |
| 1 x AT/ATX switch | |
