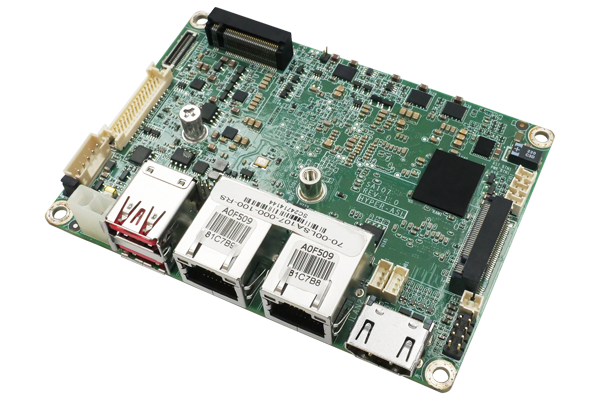

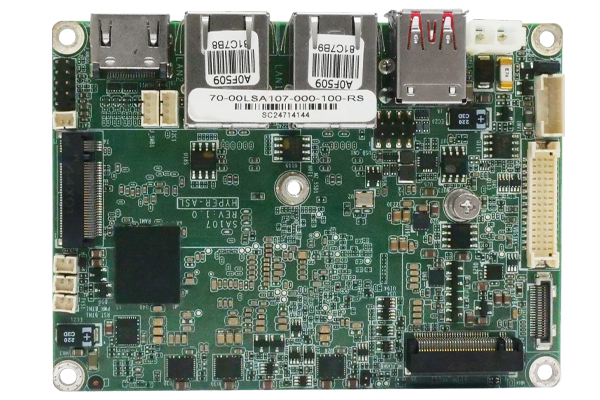

» PICO-ITX SBC 板载 Alder Lake-N/Amston 处理器
» 默认板贴 8GB LPDDR5 内存（system max.16GB）
» 双重独显：1 x HDMI 2.0 和 1 x LVDS
» 支持双路 2.5GbE 网络接口
» 支持 M.2 M key 和 M.2 A key 扩展
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | PICO-ITX |
| 系统 | |
| CPU |
Support Intel® Alder Lake-N/Amston Lake series processor. Intel® Alder Lake-N N97 SoC on-board SoC Intel® Amston Lake x7433RE on-board SoC Intel® Amston Lake x7835RE on-board SoC |
| 内存 | Dual channal on-board LPDDR5 8G pre-installed (system max.16GB) |
| 内存上限 | 16GB |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 100mm x 72mm |
| 净重 | 250g |
| 存储 | |
| 存储 | 1 x SATA : iSATA 6Gb/s |
| 1 x M.2(NGFF) : 1 x M.2 M Key 2242 (PCIe Gen3 x2) | |

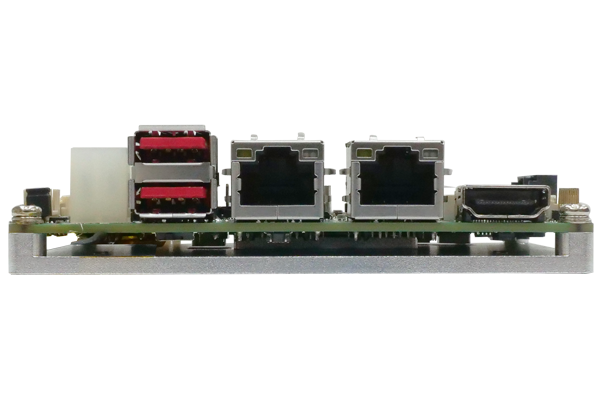

| I/O 接口 | |
| 显示输出 | 1 x HDMI™ : 高达 4K @ 30Hz |
| 1 x LVDS : 24-bit dual-channel, up to 1920 x 1200 | |
| 网络 |
2 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| 音频 | 1 x HD Audio : 1 x IAUDIO, 支持 IEI AC-KIT-888S 音频模块 (2x5 pin) |
| I/O接口 | 1 x 内部RS-232/422/485 : 1*9 pin, P=1.25, 90° |
| 2 x 内部 USB 2.0 (2x4 pin, P=2.0) | |
| 2 x 外部 USB 3.2 Gen2x1 : 10Gb/s (Type A) | |
| 扩展 |
2 x M.2(NGFF) - 1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB2.0) 1 x M.2 M Key 2242 (PCIe Gen3 x2) |
| 电源 | |
| 电源功耗 |
12V@2.724A (Intel® Alder Lake-N N97 with 8 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled) |
| 电源供电 | 12V DC input, Support AT/ATX mode |
| 环境 | |
| 操作温度 | 0°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
Ordering Information
| HYPER-ASL-R4C-R10 | PICO-ITX SBC supports Intel Atom® x7835RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS |
|---|---|
| HYPER-ASL-R3C-R10 | PICO-ITX SBC supports Intel Atom® x7433RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS |
| HYPER-ASL-N2C-R10 | PICO-ITX SBC supports Intel® Alder Lake-N N97 on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA,COM, RoHS |
Package Contents
| Package Content |
|
|---|
