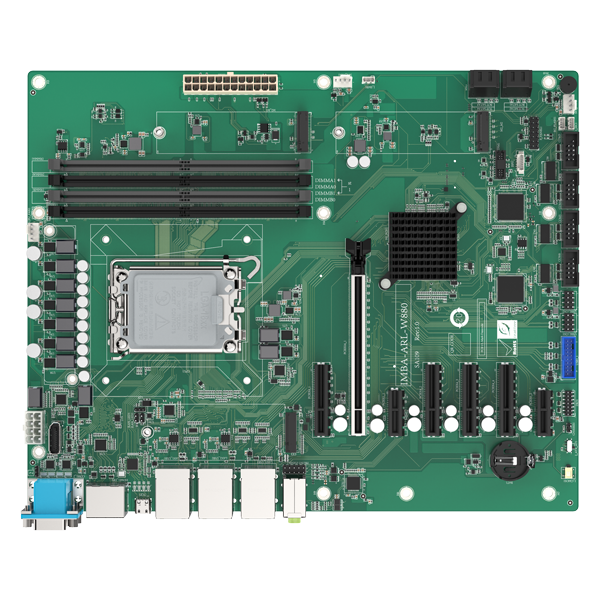

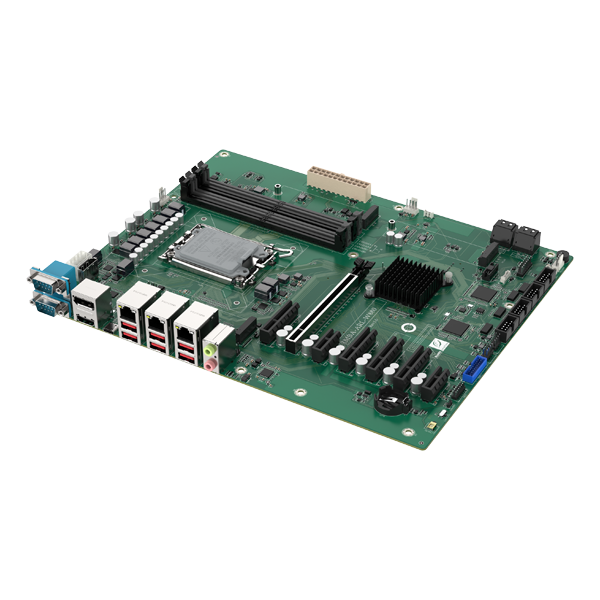

1. 高性能 Intel® Core™ Ultra 处理器 (Series 2)
2. 支持四个 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs 高达192GB (支持 ECC & non-ECC)
3. 四重独立显示 HDMI, DP 和 USB4
4. 支持两个 Intel® I226V/I226LM 2.5GbE 控制器
5. Support PCIe Gen4 x1, PCIe Gen4 x4, PCIe Gen5 x16, M.2 M key and M.2 B key expansion
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | ATX |
| 系统 | |
| CPU | High-Performance Intel® Core™ Ultra Processors (Series 2) (up to 125W TDP CPU) |
| 芯片组 | Intel® W880 |
| 内存 | Four 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 192GB (ECC & non-ECC support) |
| 散热方案/系统风扇 |
1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 244mm x 305mm |
| 净重 | GW: 1200g / NW: 700g |
| 存储 | |
| 存储 | 4 x SATA : 4 x SATA 6Gb/s (RAID 0/1/5/10 supported) |

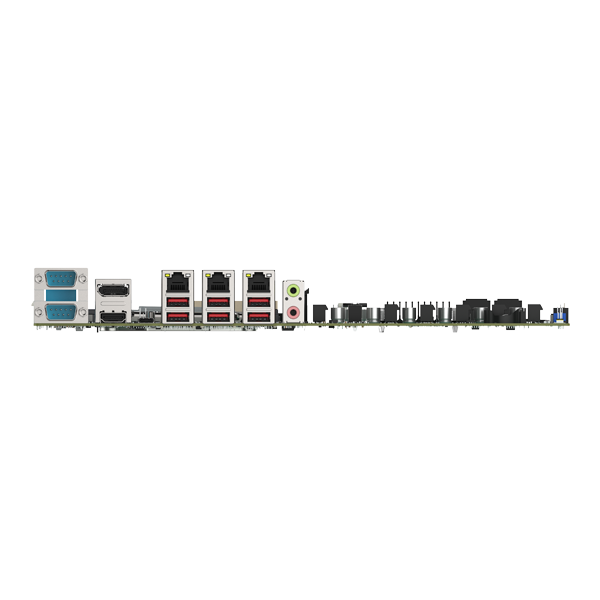

| I/O 接口 | |
| 显示输出 | 1 x HDMI™ : 高达 4K@30Hz |
|
2 x Display Port - 1 x DP1.4 (高达 4K@60Hz) 1 x DP1.4 (高达 4K@60Hz) internal |
|
| 1 x USB4 : up to 4K@60Hz | |
| 网络 |
2 x LAN - LAN1: Intel® I226-LM 2.5GbE 控制器 LAN2: Intel® I226-V 2.5GbE 控制器 |
| 音频 |
HD Audio - Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O接口 | 2 x 外部RS-232/422/485 : RS-485 支持 AFC |
| 4 x 内部RS-232 : 2x5 pin, P=2.54 | |
| 4 x 内部 USB 2.0 : 2x4 pin, P=2.54 | |
| 1 x DIO : 12位数字 I/O (2x7 pin) | |
| 6 x 外部 USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin, P=2.00 | |
| 扩展 | 1 x PCIe x16 : PCIe x16 with Signal Gen5 |
| 4 x PCIe x4 : PCIe x4 open-end Gen4 | |
| 2 x PCIe x1 : PCIe Gen4 x1 | |
|
3 x M.2(NGFF) - 1 x M.2 M Key (2280, PCIe x4) 支持 NVMe 1 x M.2 M Key (2280, PCIe x2) 支持 NVMe 1 x M.2 B key 适用于 IRIS2-2600 |
|
| 电源 | |
| 电源功耗 |
3.3V@4.39A, 5V@12.57A, 12V@7.21A, 5Vsb@0.36A (Intel 15th Q4A9 with DDR5 4800MHz U-DIMM 16GB memory) |
| 电源供电 |
ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| 环境 | |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
Ordering Information
| IMBA-ARL-W880-R10 | LGA1851 socket supports 15th generation Arrow Lake-S Intel® Ultra Processor (up to 125W TDP CPU) |
|---|
Package Contents
| Package Content |
|
|---|
