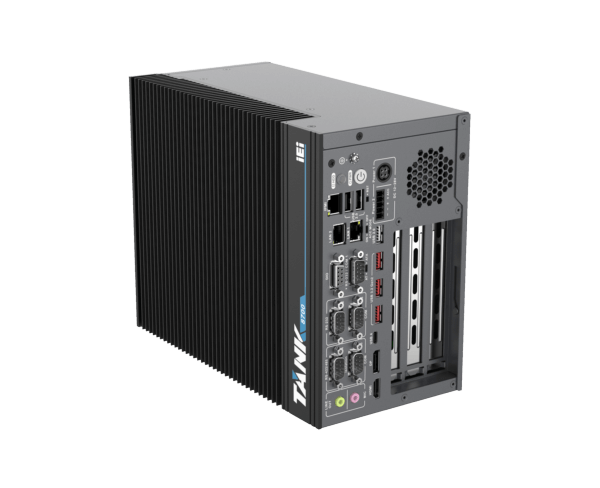

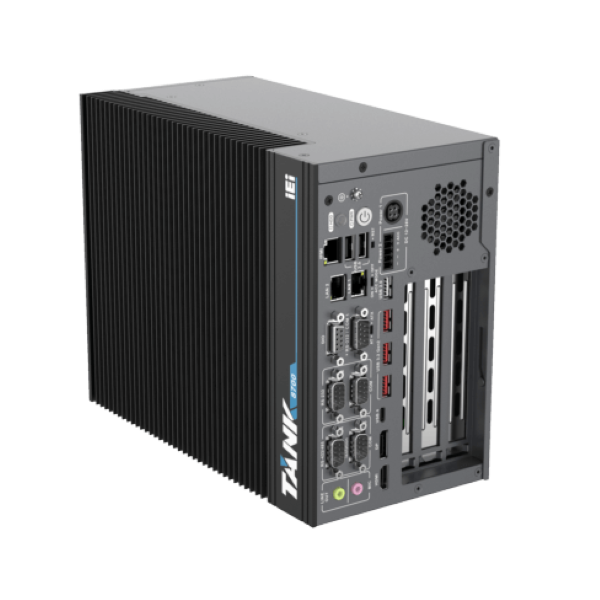

TANK-8700-MPHX

高性能 AMD Ryzen™ 7000/8000 系列移动处理器, 无风扇嵌入式计算机

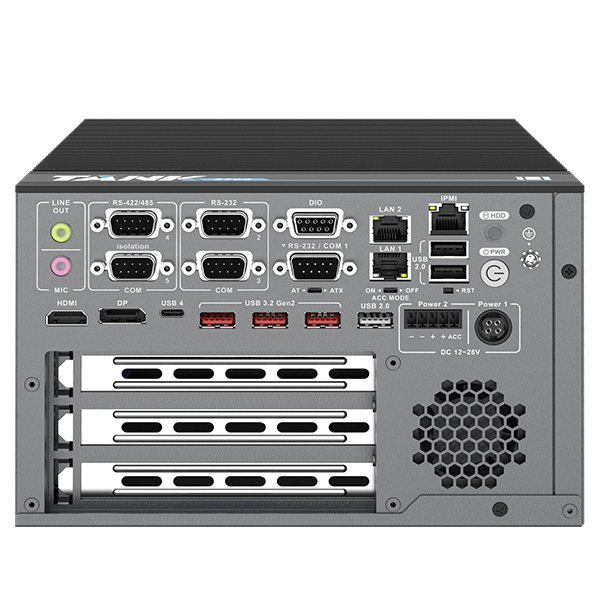

TANK0XM8700 Front IO

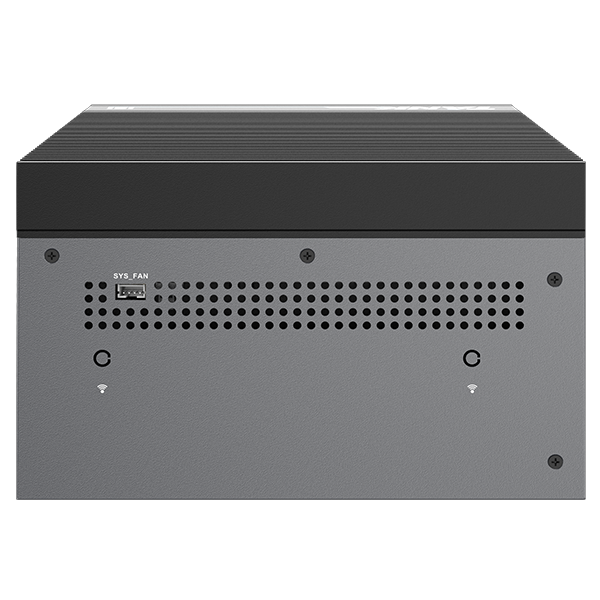

TANK-XM8700 Back IO

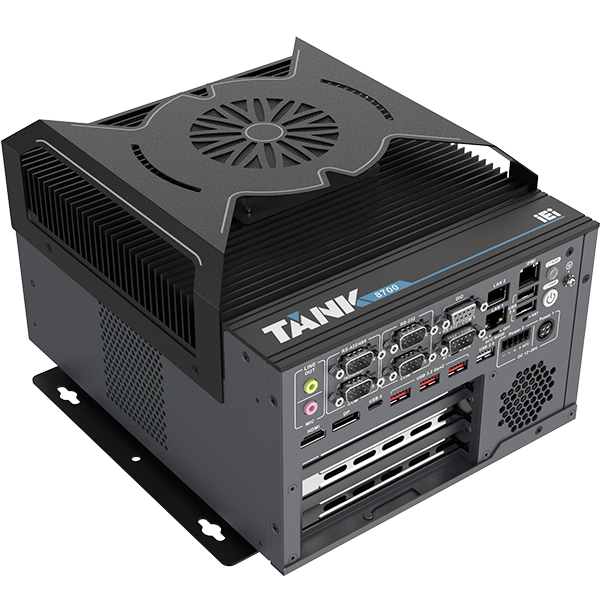

TANK-XM8700 Fan Kit
  • TANK0XM8700 Front IO
  • TANK-XM8700 Back IO
  • TANK-XM8700 Fan Kit
» 支持的CPU:
AMD Ryzen™ 7000/8000 系列移动处理器
AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
» 2 x 2.5GbE ports
» 多个USB和串行接口
» 多个 M.2 扩展和 PCIe 扩展
» 三独立显示
» 支持 IPMI 远程管理符合 CE/FCC 标准

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    AMD Ryzen™ 7000/8000 系列移动处理器
    AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
    AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
    AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
  • 芯片组: SoC
  • 系统内存: 2 x SO-DIMM DDR5 5200 (预装16GB) (最大支持96GB)
  • 电源: 直流插孔: 12 ~ 28V 直流
  • 接线端子: 12 ~ 28V 直流 (支持 ACC 模式)
  • 功耗: 19V@3.79 A (AMD Ryzen™ 9 7940HS 带 8GB 内存)
I/O Interface
I/O Ports
  • USB:
    3 x USB 3.2 Gen2
    3 x USB 2.0
  • 网络:
    2 x 2.5 GbE by Realtek 8125B controller
    1 x RJ45 by M.2 IRIS2 Module
  • 串口:
    2 x RS-422/485 (with 2K isolation) (DB9)
    3 x RS-232 (DB9)
  • 数字 I/O:
    8-bit (4-in/4-out) DB9 (Female)
  • 显示:
    1 x HDMI
    1 x DP++
    1 x USB4 (Display + USB 3.2 Gen2)
  • 音频:
    1 x Mic
    1 x Line-out
  • TPM:
    1 x 20pin TPM 接口 (选配 TPM-IN03 模块)
  • 看门狗定时器:
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 M key (2280, PCIe Gen4 x2)
    1 x M.2 A key (2230, PCIe Gen3 x1 & USB 2.0)
    1 x M.2 B Key (3042/52/80, PCIe Gen3 x1 or support IRIS2 module)
  • 背板:
    1 x PCIe Gen4 x8
    1 x PCIe Gen3 x4
    1 x PCIe Gen3 x1 (3A型号)
    1 x PCI (3B型号)
System
Cooling method / System Fan 无风扇
4 针外部系统风扇连接器
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯 (绿色)
1 x 硬盘灯 (黄色)
Physical Characteristics
Construction 铝合金
Color
Color 黑色+铁灰色
Dimensions
Dimensions 254.4 x 205 x 127.2
Weight
Weight 3.96 kg / 5.5 kg
Environment
工作温度 -20°C ~ 60°C
相对湿度 10% ~ 95% 无冷凝
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (With SSD)
Operating Shock MIL-STD-810G 514.6C-1 (With SSD)
安规&电磁 符合CE/FCC认证
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-8700-MPHX-89AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-89AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1,HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-87AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28VV DC, RoHS
TANK-8700-MPHX-87AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-85AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-85AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS

Package Contents

Package Content

  • 1 x 壁挂支架

  • 1 x 螺丝包

  • 2 x 凤凰端子
