TANK-XM813

高性能 Intel ® Core™ Ultra 处理器 (Series 2) 无风扇嵌入式计算机

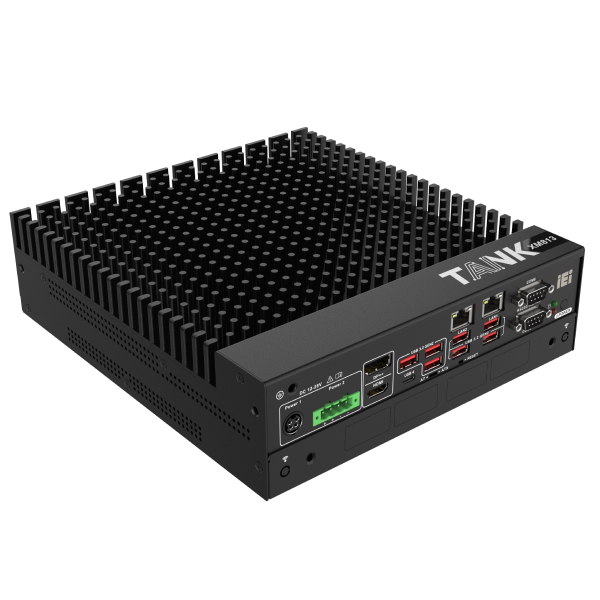

斜角

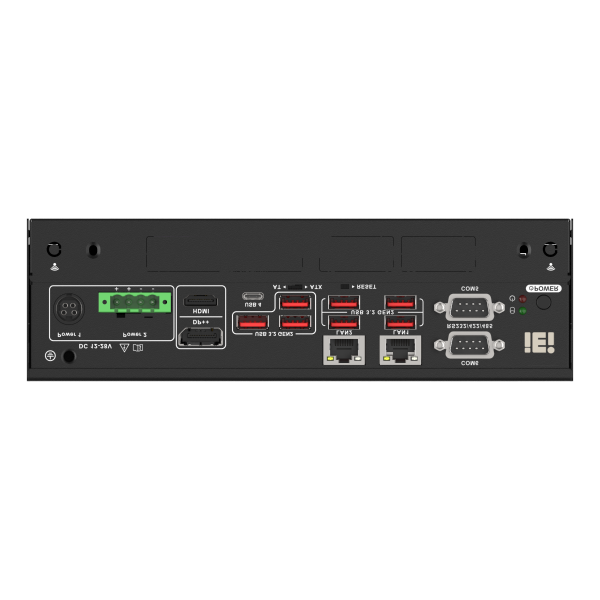

IO正面

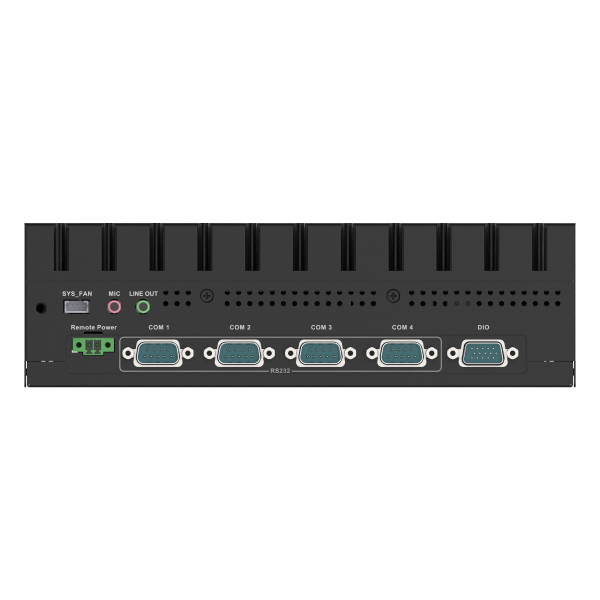

IO背面
  • 斜角
  • IO正面
  • IO背面
» 支持的CPU:
LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2)(Arrow Lake -S)(MAX 65W TDP)
» 2 x 2.5GbE ports
» 多个USB和串行接口

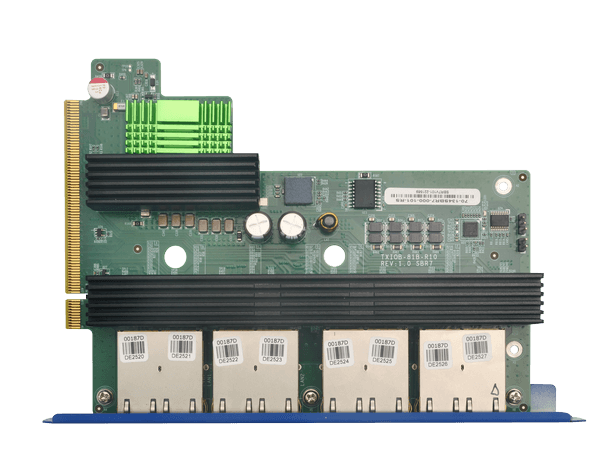

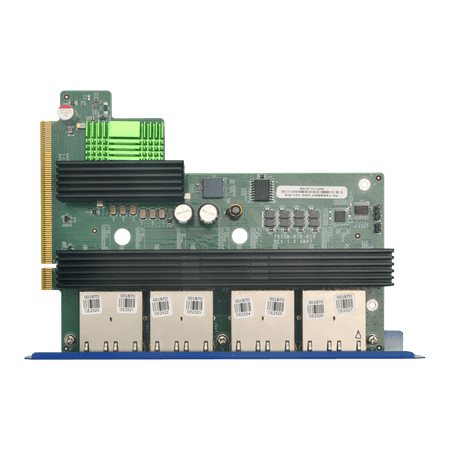

» 多种内部扩展板，灵活选择

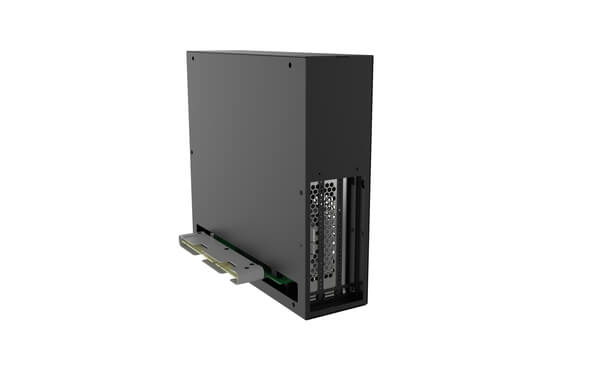

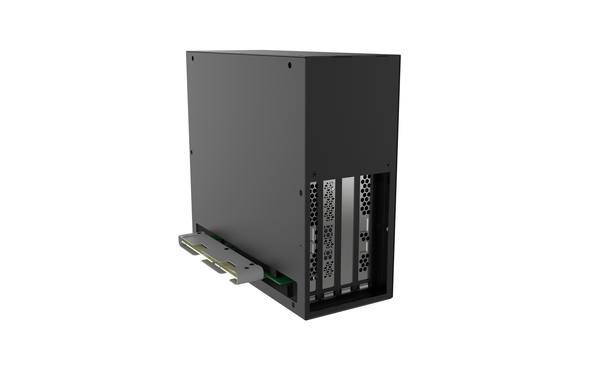

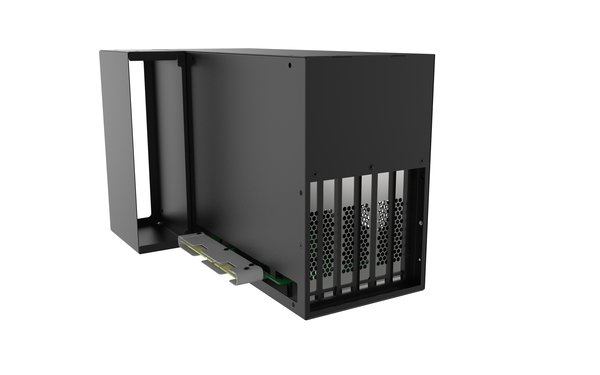

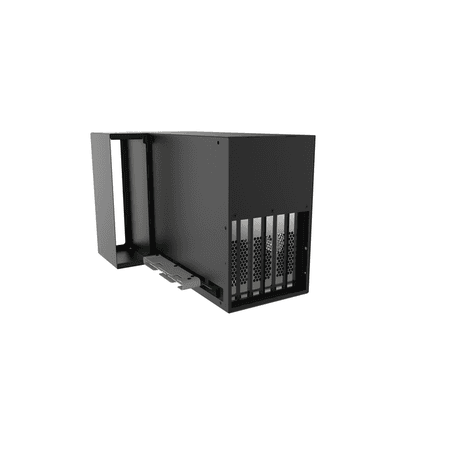

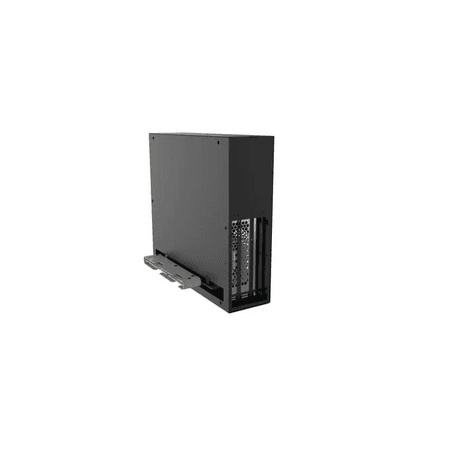

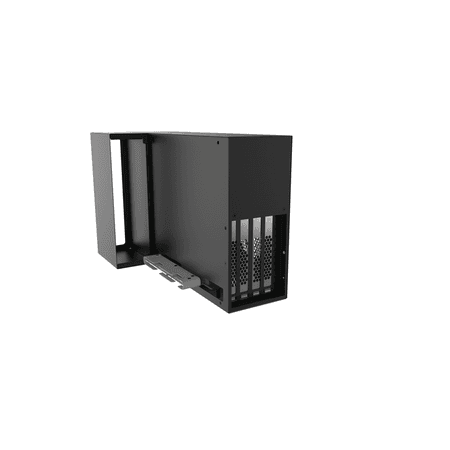

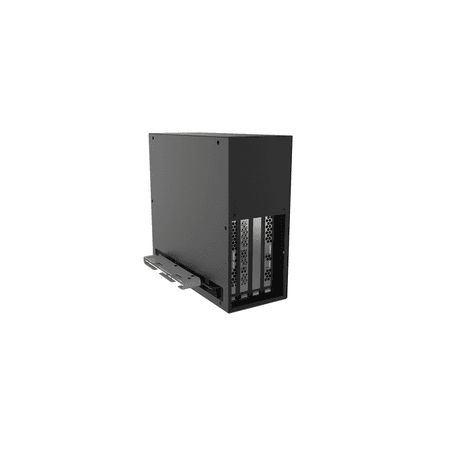

» 多种可选背板和机箱
» 符合 CE/FCC 标凖

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2)(Arrow Lake -S)(MAX 65W TDP)
  • 芯片组:
    W880
  • 系统内存:
    2 x SO-DIMM DDR5 5600 (预装16GB) (最大支持96GB)
  • 电源:
    直流插孔: 12 V~28 V直流
    接线端子: 12 V~28 V直流
I/O Interface
I/O Ports
  • USB:
    7 x USB 3.2 Gen2
  • 网络:
    2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM)
  • 串口:
    2 x RS-232/422/485
    4 x RS-232
  • 数字 I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • 显示:
    1 x HDMI
    1 x DP++
    1 x USB4 (Display+USB 3.2 Gen2）
  • 音频:
    1 x Mic
    1 x Line-out
  • TPM:
    支持 Intel PTT

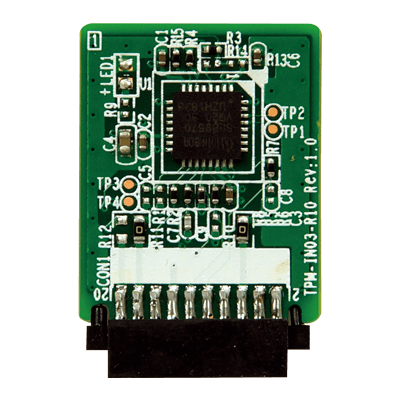

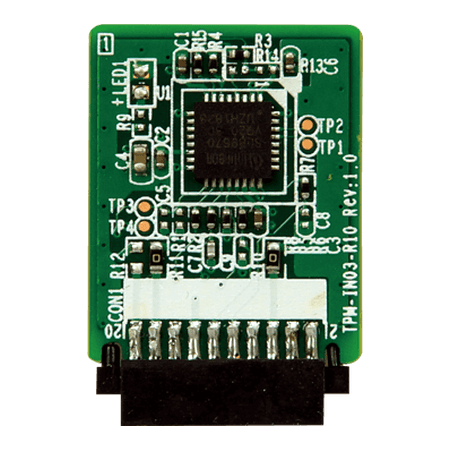

    2x10pin TPM 接口
  • 看门狗定时器：
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2230 A-key (USB+PCIe x1, supports vPRO)

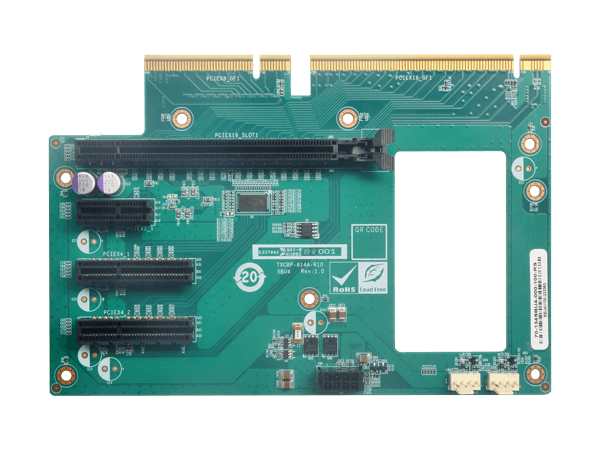

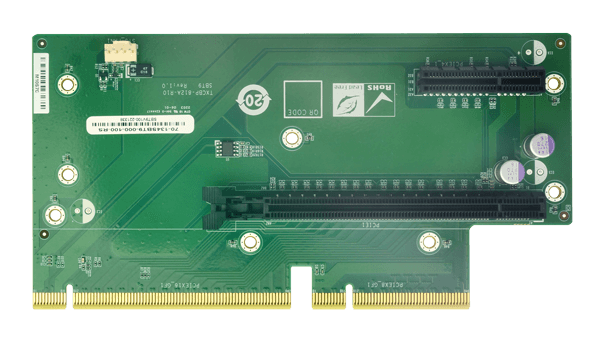

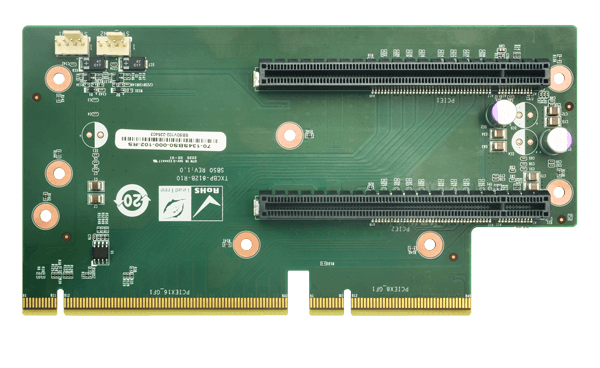

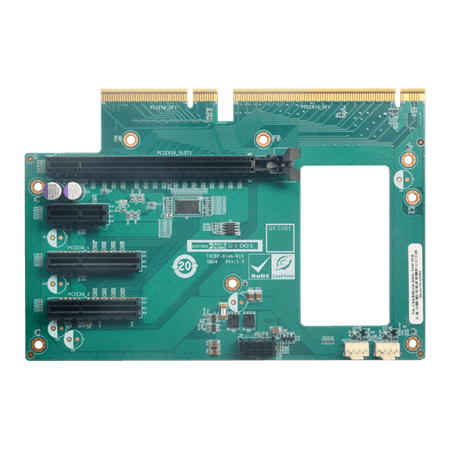

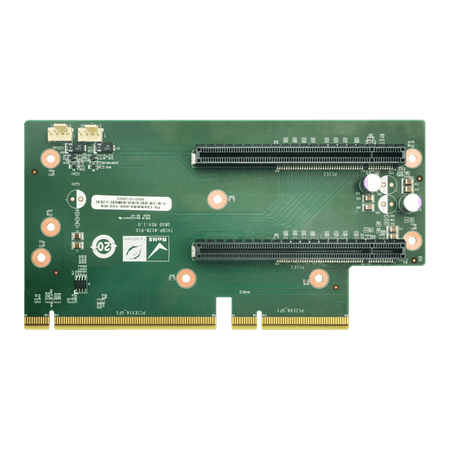

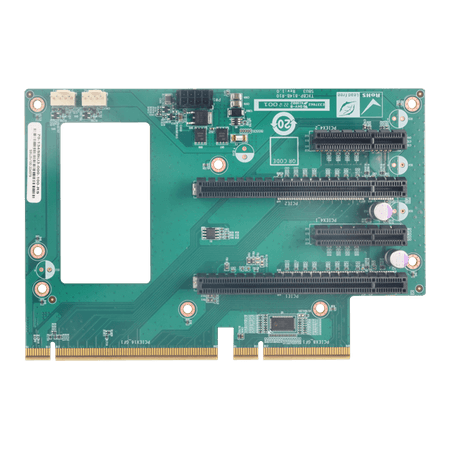

  • 背板:
    选配
System
Cooling method / System Fan 无风扇
4 针外部系统风扇连接器
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported)
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯 (红色)
1 x 硬盘灯 (绿色)
Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 230.6 x 255 x 68.7
Weight
Weight 3.2/3.6 kg
Environment
工作温度 -20°C ~ 60°C (CPU TDP35W & SSD)
-20°C ~ 50°C (CPU TDP65W & SSD)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock MIL-STD-810G 514.6C-1 (SSD)
安规&电磁 符合CE/FCC认证
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-XM813-U9BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 9 285 2.5GHz (up to 5.6 GHz, 24-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U9AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 9 285T 1.4GHz (up to 5.4 GHz, 24-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U7BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 7 265 2.4GHz (up to 5.3 GHz, 20-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U7AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 7 265T 1.5GHz (up to 5.3 GHz, 20-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U5BD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 5 225 3.4GHz (up to 4.9GHz, 10-core, TDP 65W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U5AD-R10 Ruggedized Fanless Embedded System With Intel® Ultra 5 225T 2.5GHz (up to 4.9GHz, 10-core, TDP 35W), 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS

Package Contents

Package Content

  • 1 x 壁挂支架

  • 1 x 螺丝包

  • 2 x 凤凰端子
