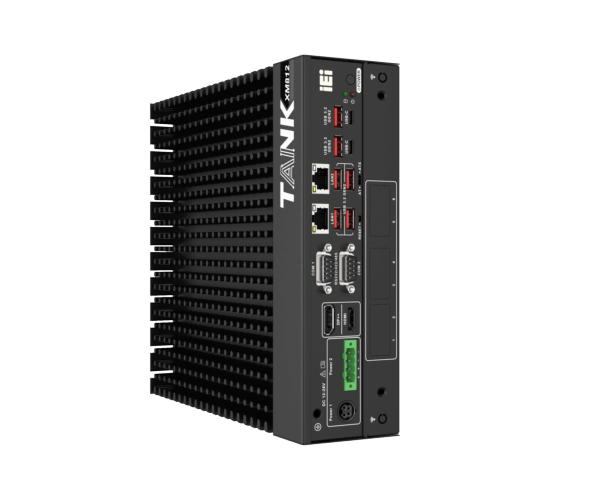

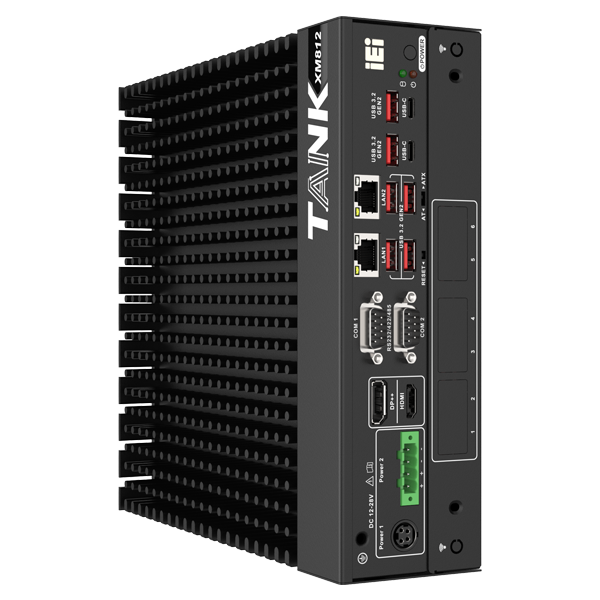

TANK-XM812

高性能 AMD Ryzen™ 7000/8000 系列 AM5 处理器, 无风扇嵌入式计算机

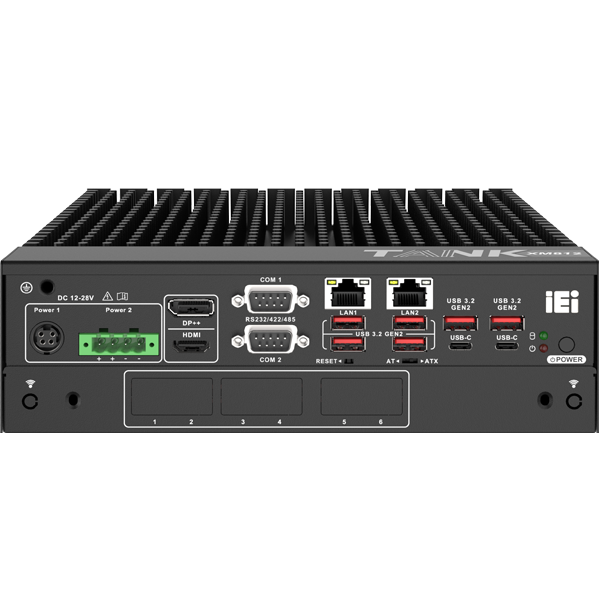

Front IO

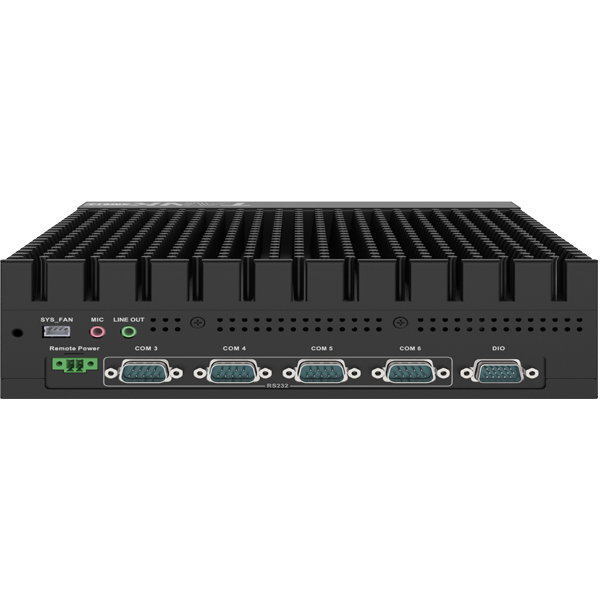

Back IO

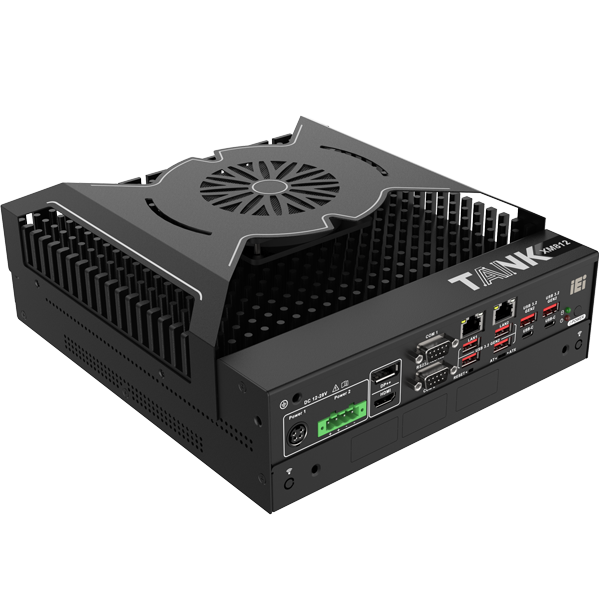

Fan Kit
  • Front IO
  • Back IO
  • Fan Kit
» 支持的CPU:
AMD Ryzen™ 7000/8000 Series AM5 Processor
AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
» 2 x 2.5GbE ports
» 多个USB和串行接口
» 多种内部扩展板，灵活选择
» 多种可选背板和机箱
» 符合 CE/FCC 标准

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    AMD Ryzen™ 7000/8000 Series AM5 Processor
    AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
    AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
  • 芯片组:
    AMD B650
  • 系统内存:
    2 x SO-DIMM DDR5 5200 (预装8GB) (支持高达 96GB)
  • 电源:
    直流插孔: 12 V~28 V直流
    接线端子: 12 V~28 V直流
    功耗: 12V @ 6.95A (AMD Ryzen™ 7 8700G 带 8GB 内存)
I/O Interface
I/O Ports
  • USB:
    6 x USB 3.2 Gen2
  • 网络:
    2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM)
  • 串口:
    2 x RS-232/422/485
    4 x RS-232
  • 数字 I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • 显示:
    1 x HDMI
    1 x DP++
    2 x USB Type-C (Display + USB 3.2 Gen2)
  • 音频:
    1 x Mic
    1 x Line-out
  • TPM:
    1 x 20pin TPM 接口 (选配 TPM-IN03 模块)
  • 看门狗定时器：
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2230 A-key (USB 2.0 + PCIe Gen3 x1)
  • 背板: 选配
System
Cooling method / System Fan 无风扇
4 针外部系统风扇连接器
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported)
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯 (绿色)
1 x 硬盘灯 (黄色)
Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 230.6 x 255 x 68.7
Weight
Weight 3.18/5 kg
Environment
工作温度 -20°C ~ 60°C (CPU TDP50W & SSD)
-20°C ~ 50°C (CPU TDP65W & SSD)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration IEC68-2-27 half-sine, 5G, 11ms, 100 shocks (With SSD)
Operating Shock Random Vibration Mode, MIL-STD-810H 514.8C-I (With SSD)
安规&电磁 符合 CE/FCC 认证
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-XM812-87AC-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8700G, (up to 5.1 GHz, 8 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS
TANK-XM812-85AC-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8600G, (up to 5.0 GHz, 6 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS

Package Contents

Package Content

  • 1 x 壁挂支架

  • 1 x 螺丝包

  • 2 x 凤凰端子

  • 1 x 硬盘线
