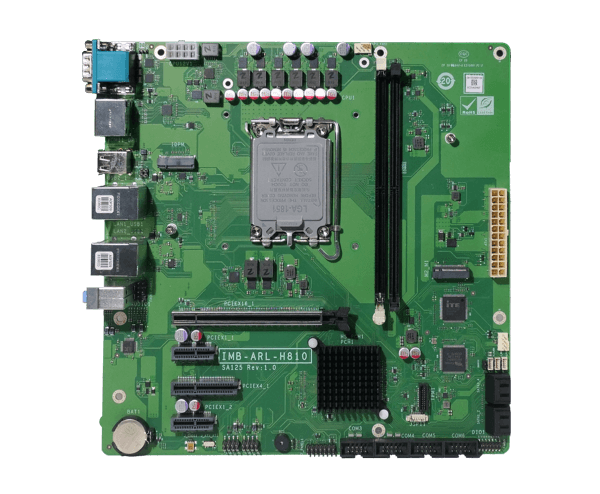

IMB-ARL-H810

micro-ATX 主板支持 high-performance Intel® Core™ Ultra (Series 2) 处理器

IMB-ARL-H810-IO
IMB-ARL-H810-back
IMB-ARL-H810-side
  • IMB-ARL-H810-IO
  • IMB-ARL-H810-back
  • IMB-ARL-H810-side
» high-Performance Intel® Core™ Ultra Processors (Series 2)
» 支持两个 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) 高达 96GB
» 支持两个 Intel® 2.5GbE controller
» 支持 PCIe Gen5 x16, PCIe Gen4 x4, PCIe Gen4 x1 和 M.2 M key 扩展

Specifications

Hardware Spec.

尺寸类型
尺寸类型 micro-ATX
系统
CPU LGA1851 socket supports 15th generation Arrow Lake-S Intel® Ultra Processor (up to 65W TDP CPU)
芯片组 Intel®H810
内存 Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) (CUDIMM support 6400MHz), supported up to 96GB
内存上限 96GB
散热方案/系统风扇 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
物理特性
尺寸 (LxWxH) (mm) 244mm x 244mm
净重 GW: 1200g / NW: 700g
存储
存储 4 x SATA : 6Gb/s
I/O 接口
显示输出 1 x HDMI™ : 2.0 (高达 4K@60Hz)
1 x Display Port : DP1.4 (高达 4K@60Hz)
1 x iDPM : only for IEI module
网络 2 x LAN -
LAN1: Intel® I219-LM controller
LAN2: Intel® I226V 2.5GbE controller
音频 描述: Realtek ALC888S HD codec
2 x Audio Jack (Line-out, Mic-in) on rear IO
1 x Analog audio (2x5 pin)
I/O接口 2 x 外部RS-232/422/485 : RS-485 support AFC
4 x 内部RS-232 : 2x5 pin, P=2.54
2 x 外部 USB 2.0 : Type-A
2 x 外部 USB 3.2 Gen1x1 : Type-A (5Gb/s)
4 x 内部 USB 2.0 : 2xr pin, P=2.54
1 x DIO : 12位数字 I/O (2x7 pin)
2 x Internal USB 3.2 Gen2x1 : Type-A (10Gb/s)
1 x I²C : 1x4 pin
扩展 1 x PCIe x16 : Gen5
1 x PCIe x4 : 开放式 Gen4
2 x PCIe x1 : Gen4
1 x M.2(NGFF) : M Key 2280 (PCIe Gen4 x1)



Other Features
TPM 1 x TPM 2 x10 pin, support Intel PTT
电源
电源功耗 3.3V@0.35A, 5V@6.49A, 12V@6.18A, 5VSB@0.27A
(Intel Core Ultra 9 285 with DDR5 4800MT/s U-DIMM 32GB memory)
电源供电 ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
环境
操作温度 -10°C ~ 65°C
存储温度
Humidity 5% ~95%, 无冷凝
Watchdog Timer
Watchdog Timer 软件可编程支持 1~255 秒系统重置

Ordering Information

IMB-ARL-H810-R10 micro-ATX motherboard supports LGA1851 Intel® 15th Generation Ultra™ processor, DDR5, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

  • 1 x IMB-ARL-H810 单板
  • 1 x I/O 挡片
  • 2 x SATA 线
  • 1 x QIG
