» 符合 RoHS 标准的设计
» 兼容 ATX 和 microATX 规格主板
» 两个 3.5 英寸和三个 2.5 英寸驱动器托架
» 四个冷却风扇（92 x 92 x 38 mm）
» 可锁门以防止未经授权的访问
5U Rackmount Chassis Empowering Edge AI with
NVIDIA RTX 4090 Compatibility

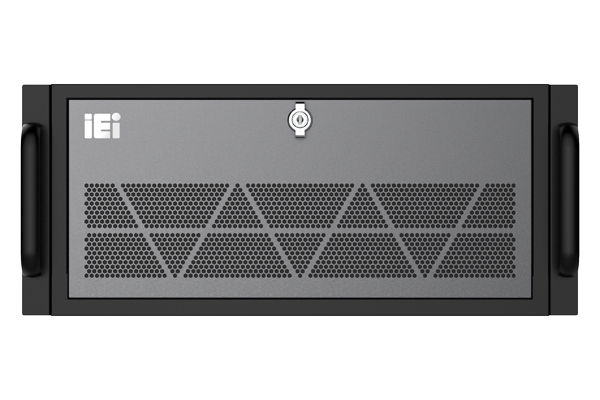

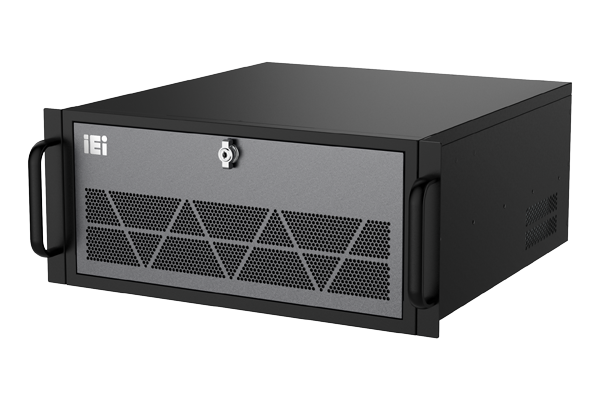

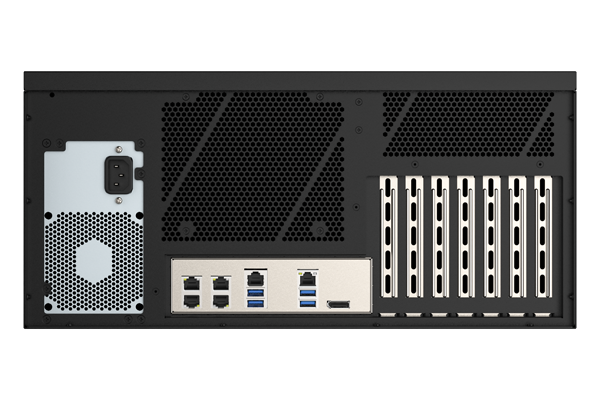

The RACK-5000B is a 5U, 7-slot rackmount chassis designed to support ATX and micro ATX motherboards, as well as ATX power supplies of up to 600W. It is fully compatible with NVIDIA RTX 4090 GPUs, ensuring accelerated deployment of intelligent AIoT technologies.
As edge computing demands greater multitasking and high-performance capabilities, IEI's RACK-5000B seamlessly integrates CPU and GPU functionality for efficient large-scale parallel processing. This industrial-grade solution is tailored for various edge AI applications, including image processing, automated optical inspection (AOI), machine vision, network security, intelligent transportation and video surveillance.
ATX & microATX Motherboards
Up to NVIDIA RTX 4090 GPU
Scalable & Cost Effective
Highly Scalable Architecture with Dual Full-Length GPUs
High-Performance Computing (HPC) systems at the edge require GPGPU processing hardware that maximizes power efficiency, enabling smooth execution of advanced AI and machine learning algorithms for targeted workflows. The RACK-5000B, designed for industrial AI applications with NVIDIA GPU support, can accommodate up to three GPU cards, each measuring up to 380 mm in length and 150 mm in height.
| RTX 3070 | RTX 4090 | |
|---|---|---|
| Architecture | Ampere | Ada Lovelace |
| CUDA Cores | 5,888 | 16,384 |
| Memory | 8GB GDDR6 | 24GB GDDR6X |
| Memory Bandwidth | 448 GB/s | 1,008 GB/s |
| TDP | 220W | 450W |
Selecting the right GPU is crucial in industrial applications. The RTX 3070 offers an optimal balance between cost and performance for tasks such as machine vision and robotics, while the RTX 4090 excels in advanced AI and simulation workloads, albeit at a higher cost. Always ensure that your GPU choice aligns with the specific efficiency requirements of the application.
High-Wattage Power Supply for High-End CPU and GPU Computing
Optional configurations include 600W, 500W, 400W, or 300W ATX power supplies. This solution is optimized for high-performance CPUs and NVIDIA RTX GPUs, delivering superior AI computing efficiency.
Advanced Cooling System with Four High-Performance Fans to Optimize Thermal Efficiency
Engineered for power and performance, this system features four 9 cm dual ball-bearing fans, each delivering 117 CFM. Combined with a streamlined airflow design, it ensures reliable support for CPUs up to 200W and prevents system failure due to overheating.
Compatible with ATX/MicroATX Motherboards for Versatile System Integration
High-Performance Computing (HPC) systems at the edge require GPGPU processing hardware that maximizes power efficiency, enabling smooth execution of advanced AI and machine learning algorithms for targeted workflows. The RACK-5000B, designed for industrial AI applications with NVIDIA GPU support, can accommodate up to three GPU cards, each measuring up to 380 mm in length and 150 mm in height.
|
|
|
|
|---|---|---|---|
| IMB-AM5 | IMBA-R680 | IMBAX-SP6 | |
| Processor | AMD Ryzen 7000/8000G/9000 PHX1 series (up to 170W TDP) | Intel 12th/13th/14th Gen Core i9/i7/i5/i3, Pentium, Celeron (up to 125W TDP) | AMD SP6 Siena 8-64 cores (70W-225W TDP) |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5, up to 196GB | Four 288-pin 4400 MHz Dual-Channel DDR5, up to 192GB | Six 288-pin 4800 MHz DDR5 RDIMM with ECC, up to 576GB |
| Display Output | Triple independent display (1x DP, 2x HDMI) |
Triple independent display (1x DP, 1x HDMI, 1x iDPM) |
Single display (1x DP, 1920x1080) |
| Expansion Slots |
● 1x PCIe Gen4 x16 (x8 Signal) ● 2x PCIe Gen4 x4 ● 1x PCIe Gen4 x1 ● 2x M.2 M Key |
● 2x PCIe Gen5 x16 (x8 Signal) ● 3x PCIe Gen4 x4 ● 2x PCIe Gen3 x1 ● 2x M.2 M Key |
● 1x PCIe Gen5 x16 ● 2x PCIe Gen4 x16 ● 3x PCIe Gen4 x8 ● 4x M.2 M Key |
| Ethernet | Dual Intel I226V 2.5GbE | Dual Intel I226LM/I226V 2.5GbE | Quad I225-LM / I226-LM 2.5GbE |
| Storage | 4x SATA 6Gb/s, 2x M.2 M Key (NVMe support) |
4x SATA 6Gb/s (RAID 0/1/5/10), 2x M.2 M Key (PCIe Gen3 x4) |
8x SATA 6Gb/s, 4x M.2 M Key (PCIe x4 for SSD) |
Dimensions (Unit: mm)
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | ATX Motherboard |
| I/O Interface | |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 7 槽 |
| System | |
| Cooling method / System Fan | 4 |
| Drive Bays |
2 x 3.5” HDD 3 x 2.5” HDD |
| Indicator&Buttons | |
| Buttons | 电源开关, 复位开关 |
| Indicators | 电源, 硬盘 |
| Physical Characteristics | |
| Construction | 金属 |
| Color | |
| Color | 黑色机箱配银色面框 |
| Dimensions | |
| Dimensions | 562.5 x 431 x 200.2 mm |
| Environment | |
| 工作温度 | 0°C ~ 60°C |
| 相对湿度 | 10% ~ 90% |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| 安规&电磁 | 符合 CE/FCC |
Ordering Information
| RACK-5000B-R10 | 5U ATX Rackmount Chassis,2xUSB2.0,Black,ATX Power Switch,W/O PSU, With Grounding stud,HDD shockproof,IE LOGO,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
