Embedded Computer

iM2-DLAN

M.2 B Key & M Key card, 支持双 Intel® 2.5 GbE LAN, RoHs

2 x RJ-45

iUCOM-4R

USB 模块支持四个 RS-232/422/485 接口 (RJ-45)，符合 RoHs 标准

4 x RS-232/422/485 (RJ-45)

iUCOM-4D

USB 模块支持四个 RS-232/422/485 接口 (DB-9)，符合 RoHs 标准

4 x RS-232/422/485 (DB-9)

iUCOM-2D

USB 模块支持两个 RS-232/422/485 接口 (DB-9)，符合 RoHs 标准

2 x RS-232/422/485 (DB-9)

NWR2-R2S

适用于 IEI 3.5”/4” SBC 的 PCIe 扩展转接卡

2 x PCIe x2

NWR2-L2S

适用于 IEI 3.5”/4” SBC 的 PCIe 扩展转接卡

2 x PCIe x2

NWR-R3S

适用于 IEI 4” SBC 的 PCIe 扩展转接卡

3 x PCIe x1

NWR-R2S

适用于 IEI 3.5”/4” SBC 的 PCIe 扩展转接卡

2 x PCIe x1

NWR-L3S

适用于 IEI 4” SBC 的 PCIe 扩展转接卡

3 x PCIe x1

NWR-L2S

适用于 IEI 3.5”/4” SBC 的 PCIe 扩展转接卡

2 x PCIe x1

HPR-R4S

适用于 IEI 2.5” SBC 的 PCIe 扩展转接卡

4 x PCIe x1

HPR-R2S

适用于 IEI 2.5” SBC 的 PCIe 扩展转接卡

2 x PCIe x2

HPR-L4S

适用于 IEI 2.5” SBC 的 PCIe 扩展转接卡

4 x PCIe x1

HPR-L2S

适用于 IEI 2.5” SBC 的 PCIe 扩展转接卡

2 x PCIe x2

LCD 转接板

iDP (IEI Internal Display Port) connector is provided on the IEI products. Through the IEI iDP converter cards, the iDP connector can support different display specification, such as VGA, HDMI™, DVI-D and LVDS.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

iDPM-DP

DisplayPort 扩展板(用于 iDPM 接口)，符合RoHs

1 x DP connect

iDPM-VGA

eDP 转 VGA连接器转换板 (仅支持 IEI iDPM接口)

1 x VGA pin-header

iDPM-eDP

eDP 转 eDP 连接器转换板 (仅支持 IEI iDPM 接口)

1 x eDP connect

iDPM-LVDS

eDP 转 LVDS 连接器转换板 (仅支持 IEI iDPM 接口)

1 x LVDS connect

DP-LVDS

DisplayPort to 24-bit Dual-channel LVDS Converter Board DP-LVDS-R10 (for IEI iDP Connector)

1 x IEI iDP connector

DP-HDMI

DisplayPort to HDMI™ 1.3a Converter Board (for IEI iDP DP-HDMI™-R10 connector)

IEI iDP connector

DP-DVI

DisplayPort to DVI Converter Board (for IEI iDP Connector)

1 x IEI iDP connector

PCI/PCIe 附加卡

IEI provides industrial communication cards for different expasion and application through ISA, PCI or PCI Express.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

IPCIE-CAN-2D

PCIe 卡，支持 2 端口 CAN Bus，具有隔离保护，RoHs

2 x DB9 (CAN 2.0B port with isolation)

IPCIE-UART-2D2P

PCIe 卡, 支持四个 RS-232/422/485, RoHs

2 x RS-232/422/485 ( DB-9 )
2 x RS-232/422/485 pin header (2x5 pin)

GPOE-2P2

PCI Express 以太网供电卡，2个 2.5GbE端口，符合802.3at，薄型，RoHS

2 x LAN (2.5GbE)

GPOE-4P2

PCI Express 以太网供电卡，4个 2.5GbE端口，符合802.3at/af，薄型，RoHS

4 x LAN (2.5GbE)

LAN-100G2SF

Intel® Ethernet Controller E810 based Network Interface Card 2 x 100GbE with 2 x QSFP28, PCIe 4.0 x 16 interface.

GPOE-4P

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS

1. PCI Express® x1 兼容
2. 满载下支持总功率为 90 瓦
3. 支持链路聚合 / 巨型帧 (9 Kbyte)
4. 支持 12V~24V DC 输入电源

无线模块

PCIe Mini card *Solid design with external antenna diversity *Low power consumption and high performance

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

EMB-WIFI-KIT02I3

M.2 A/E Key WI-FI 6E 模块套件

● M.2 2230 AE Key接口
● WI-FI 6E 无线
● 低功耗、高性能
● 蓝牙5.2
● 外置天线设计

EMB-WIFI-KIT

PCIe Mini 卡无线 LAN 模块套件

● 半尺寸 PCIe 迷你卡规格
● 高速无线连接
● 低功耗和高性能
● 完全遵循 Bluetooth 4.0
● 带外部天线分集的稳定设计

Mini-PCIe 模块

PCI Express Mini Card *IO Interface converter *RoHs

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

MPCIE-UART-KIT01

PCI Express Mini Card Supports Quad-port RS-232/422/485, Full Size

PCI Express Mini Card

MPCIE-DLAN

PCI Express 迷你双 Intel® GbE LAN 模块, 全尺寸

PCI Express 迷你 GbE LAN 模块

MPCIE-UART-KIT02

PCI Express Mini Card Supports Dual-port RS-232/422/485, 16-bit GPIO, Full Size

PCI Express Mini Card

MPCIE-LAN

PCI Express Mini GbE LAN Module, Full Size

PCI Express mini card

MPCIE-3G

PCI Express Mini 3G Adapter Card, RoHS

PCI Express Mini card
Antenna 50Ohms. Main GSM/UMTS antenna
USB 2.0 High Speed (480Mbit/s) device
interface, Full Speed (12Mbit/s)

IGCME-1300

PCIe Mini VGA Adapter Card,

PCI Express Mini card

1 x 10-pin (2x5) box header by 2.0mm pitch

TPM Module

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

TPM-IN01

基于硬件的安全解决方案，通过存储密钥、密码和数字证书的 TPM 实现数据保护和可靠身份验证。

1. TPM 管理
2. 文件和文件夹加密/解密
3. 个人安全驱动器
4. 安全电子邮件
5. 密钥转移
6. 安全策略配置

TPM-IN02

基于硬件的安全解决方案，通过存储密钥、密码和数字证书的 TPM 实现数据保护和可靠身份验证。

1. TPM 管理
2. 文件和文件夹加密/解密
3. 个人安全驱动器
4. 安全电子邮件
5. 密钥转移
6. 安全策略配置

TPM-IN03

SPI TPM 2.0 module, software management tool

Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85

SPI TPM 2.0 module, software management tool, firmware v7.85

Audio Kit

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

iUA-CM6533

USB 声卡模块

● C-MEDIA CM6533声卡芯片
● USB2.0 接口
● MIC in 和Line-out两个声卡接口
● 内置2个1.5W喇叭接口

AC-KIT2-888S

Realtek ALC888S 7.1 声道高清音频周边卡，小尺寸，符合 RoHS

Realtek ALC888S HD Audio codec

2 x audio jacks (用于麦克风输入和音频输出)

● 支持 Realtek ALC888S 高清音频编解码芯片
● 两个音频插孔，用于麦克风输入和音频输出
● 驱动程序支持 Windows® 2000/2003/XP/Vista/7/10（32/64 位）和 Linux（Ubuntu 或 Debian）

AC-KIT-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,RoHS

Realtek ALC888S HD Audio codec

1 x Mic-in connector
1 x Line-in connector
1 x Front-out connector
1 x Rear-out connector
1 x Center/Subwoofer connector

1. Realtek ALC888S HD Audio codec IC supported
2. Five audio jacks for microphone, 7.1+2-channel high definition audio input and output
3. High performance 7.1+2-channel high definition audio board provides 7.1-channel sound playback and multiple streaming through the front panel stereo outputs
4. Digital to Analog Converter (DAC) with 97dB Signal to Noise Ratio (SNR)
5. Analog to Digital Converter (ADC) with 90dB Signal to Noise Ratio (SNR)
6. All the Digital to Analog Converter (DAC) supports 44.1k/48k/96k/192kHz sampling rate
7. All the Analog to Digital Converter (ADC) supports 44.1k/48k/88.2k/96k/192kHz sample rate
8. Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
9. CE/FCC compliant

Remote Management Module

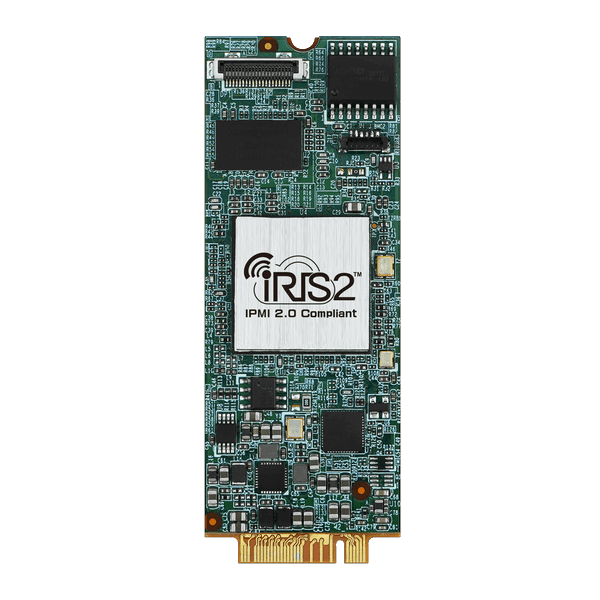

iRIS2-2600

IPMI 2.0 adapter card with 2600 BMC chip for IEI IRIS2 Connector IPMI 2.0 module

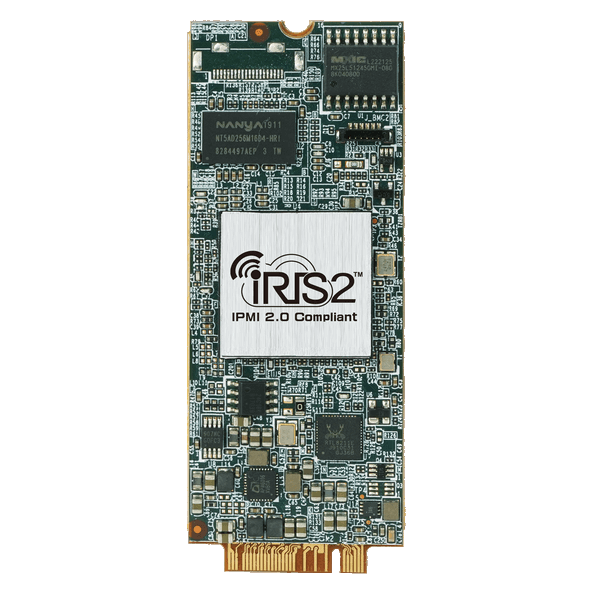

iRIS2-2620

IPMI 2.0 adapter card with 2620 BMC chip for IEI IRIS2 Connector IPMI 2.0 module
