强固型嵌入式电脑
TANK | ECN | ECW Series Embedded System
IEI offers complete rugged box pc products with a wide range of I/O interface and multiple expansions, allowing users to connect to different devices for comprehensive automation solution. IEI industrial rugged box pc provides a reliable platform to fulfill a wide variety of application demand, such as machine automation, surveillance station application and information kiosk.
CPU
Chipset
I/O
Expansion

ECN-360A-ULT3

Fanless Embedded System with Intel® Solution
请参阅SBC 请参阅SBC 4 x USB3.0
2 x LAN
1 x RS-232/422/485
2 x RS-232
1 x 8位 数字 I/O
2 x HDMI
1 x 输出线
2 x 802.11b/g/n (可选)
1 x 全尺寸的PCIe迷你卡插槽(带SIM卡托并支持mSATA)
1 x 半尺寸的PCIe迷你卡插槽

ECN-380-QM87

Fanless Embedded System with Intel® Solution
Intel® 移动 Core™ i5-4400E with 支持 AMT 9.0 (高达 2.7GHz, 双核, 3MB 缓存, TDP=37W)
Intel® 移动 Celeron® 2000E (高达 2.2GHz, 双核, 2MB 缓存, TDP=37W)
Intel® QM87 2 x USB 3.0
4 x USB 2.0
2 x RJ-45
IntelR I217LM PHY with 支持 IntelR AMT 9.0
IntelR I210-AT PCIe 控制器
2 x RS-232
2 x HDMI
1 x VGA
1 x Line-out, 1 x Mic-in
1 x 802.11b/g/n (可选)
PCIe 迷你:
1 x 全尺寸 PCIe 迷你 (只支持 mSATA, SATA 6Gb/s signal)
1 x 半尺寸 PCIe 迷你 (只适用于 iRIS-1010)

ECW-281B

无风扇嵌入式系统采用 Intel® Atom™ Dual-core D525/N270 CPU
IIntel® Atom™ D525 双核 1.8GHz/1MB L2 缓存 Intel® ICH8M 4 x USB 2.0
2 x Realtek 8111E PCIe GbE
6 x RS-232 ports for ECW-281B-D525
(COM2: 默认 RS-232, RS422/485 可选)
6 x RS-232 ports for ECW-281B-N270
(COM2: 默认 RS-232, RS422/485 可选)
1 x VGA
1 x Speaker out
1 x PCIe 迷你卡插槽

ECW-281B-BT

无风扇嵌入式系统采用 Intel® Celeron® J1900 处理器
Intel® Celeron® J1900 处理器
(2 GHz, 四核, 2 MB 缓存, TDP=10W)
Soc
Soc 1 x USB 3.0
3 x USB 2.0
LAN 1: PCIe GbE 采用 IntelR I210 控制器
LAN 2: PCIe GbE 采用 IntelR I211 控制器
3 x RS-232
1 x RS-422/485
8-bit 数字 I/O
1 x VGA
1 x Line out
1 x 802.11b/g/n (可选)
1 x 全尺寸 PCIe 迷你卡插槽 (支持 mSATA)
1 x 半尺寸 PCIe 迷你卡 (仅适用于 iRIS)

ECW-281B-D2550

无风扇嵌入式习题采用 Intel® Atom™ Dual-core D2550 CPU
Intel® Atom™ 双核 D2550 1.86GHz Intel® NM10 4 x USB 2.0
2 x Realtek RTL8111E PCIe GbE 控制器
3 x RS-232
1 x RS-422/485
8-bit 数字 I/O
1 x VGA
1 x Line-out
1 x 802.11b/g/n (可选)
1 x 全尺寸 (支持 mSATA)
1 x 半尺寸

ECW-281B2

无风扇嵌入式系统采用 Intel® Atom™ Dual-core D525/N270 CPU
IIntel® Atom™ D525 双核 1.8GHz/1MB L2 缓存 Intel® ICH8M 4 x USB 2.0
2 x Realtek 8111E PCIe GbE
5 x RS-232 ports for ECW-281B2-D525
5 x RS-232 ports for ECW-281B2-N270
2 x VGA
1 x Speaker out
1 x PCIe 迷你卡插槽

TANK-610-BW

无风扇嵌入式系统
Intel® Celeron® N3160 处理器 (高达 2.24GHz, 四核, 2MB 缓存, TDP=6W)
SoC
SoC 4 x USB 3.0
2 x RJ-45 PCIe GbE 采用 IntelR I210-IT
6 x RS-232, 2 x RS-232/422/485
1 x VGA, 1 x HDMI
1 x Line-out, 1 x Mic-in
1 x 802.11 b/g/n (可选)
PCIe 迷你:1 x 全尺寸 (支持 mSATA, co-lay SATA), 1 x 半尺寸

TANK-620-ULT3

无风扇多串口嵌入式系统
Intel® Celeron® 3855U (1.6GHz, TDP=15W)
SoC
SoC ●4 x USB 3.0
●4 x USB 2.0
●以太网:2 x RJ-45
PCIe GbE by Intel® I211 控制器
●COM 端口:
6 x RS-232 (DB-9)
8 x RS-232/422/485 端口,带自动流量控制 (DB-9)
●1 x 24-bit 数字 I/O (12-bit 输入/12-bit 输出)
●音频:
1 x 麦克风输入, 1 x 扬声器输出, 1 x 线路输出
●显示屏:2 x VGA
M.2:
1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2)
PCIe Mini:
2 x 全尺寸 PCIe 迷你插槽 (PCIe by1, USB2.0)

TANK-801-BT

Intel® Celeron® J1900 2 GHz, 10W
Intel® Celeron® J1900 2 GHz
SoC
SoC 2 x USB 3.0
2 x USB 3.0
2 x RJ-45
1 x PCIe GbE by IntelR I210
1 x PCIe GbE by IntelR I211
2 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9, 隔离)
16-bit 数字 I/O, 8-bit 输入/8-bit 输出
1 x 显示端口, 1 x DVI-I
1 x Line-out, 1 x Mic-in
1 x 全尺寸 PCIe 迷你
PCI/PCIe:
3A: 一个 PCIe x1 + 2 x PCI
3B: 两个 PCIe x1 + 1 x PCI
3C: 3 x PCI

TANK-860-HM86

Intel® HM86 移动解决方案. 无风扇宽温嵌入式系统
CPU:
Intel® Core™ i5-4400E 2.7 GHz
芯片组:Intel® HM86 4 x USB 3.0
2 x USB 2.0
2 x RJ-45
1 x PCIe GbE by IntelR I210
1 x PCIe GbE by IntelR I217LM
4 x RS-232 (DB-9, two with 隔离)
2 x RS-422/485 (RJ-45)
8-bit 数字 I/O, 4-bit 输入/4-bit 输出
1 x VGA, 1 x DVI-I, 1 x 显示接口
1 x Line-out, 1 x Mic-in
1 x 802.11b/g/n (可选)
PCI/PCIe
2 A: 两个 PCIe x8 (物理 PCIe x16 插槽)
4 A: 两个 PCIe x8 (物理 PCIe x16 插槽) +2 x PCI
6 A: 一个 PCIe x8 (物理 PCIe x16 插槽) +两个 PCIe x4 + 三个 PCI
PCIe 迷你
2A: 1 x 全尺寸 (co-lay mSATA)
4A: 1 x 全尺寸 (co-lay mSATA) +1 x 全尺寸 (在底板上)
6A: 1 x 全尺寸 (co-lay mSATA) +1 x 全尺寸 (在底板上)

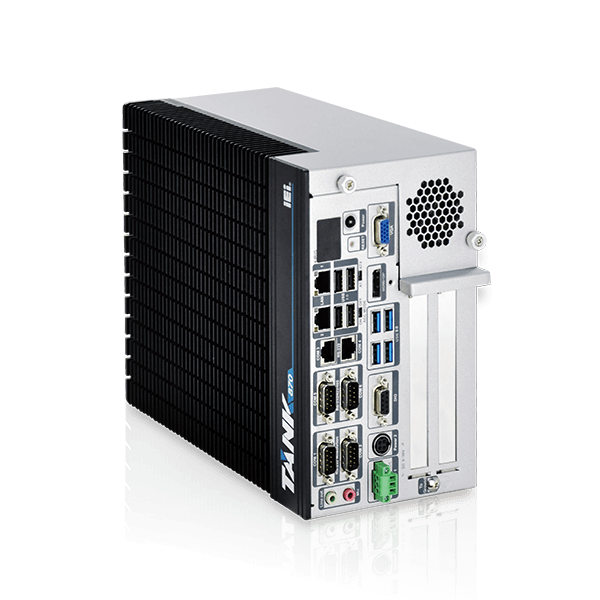

TANK-870-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® Q170 ●USB: 4 x USB 3.0, 4 x USB 2.0
●Ethernet:
2 x RJ-45
LAN1 (iRIS): Intel® I210 PCIe controller
LAN2: Intel® I219LM PCIe controller
●COM Port:
4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
2 x RS-232/422/485 (DB-9)
●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI+DP (Up to 4096x2304@60Hz)
1 x iDP (optional)
●Audio: 1 x Line-out, 1 x Mic-in
●PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
2-slot model: 1 x PCIe x16, 1 x PCI
2-slot model: 2 x PCIe x8
4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni
4-slot model: 1 x PCIe x16, 3 x PCI, 1 x Full-size PCIe Mni

TANK-870e-H110

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® H110 ●USB: 4 x USB 3.0
●Ethernet:
2 x RJ-45 PCIe GbE by RTL8111G controller
●COM Port:
2 x RS-232/422/485 (DB-9, w/ 2.5kV isolation protection)
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI 1.4 (up to 3840x2160@30Hz)
●Audio: 1 x Line-out, 1 x Mic-in
●PCIe Mini:
1 x Full-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
3A: 1 x PCIe x16, 2 x PCI
3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI
3C: 3 x PCI

TANK-871-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® Q170 ●USB: 4 x USB 3.0, 4 x USB 2.0
●Ethernet: 2 x RJ-45
LAN1 (iRIS): Intel® I210 PCIe controller
LAN2: Intel® I219LM PCIe controller
●COM Port:
4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
2 x RS-232/422/485 (DB-9)
●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)
1 x iDP (optional)
●Audio: 1 x Line-out, 1 x Mic-in
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
icon-new

TANK-880-Q370

High-Performance 8th/9th Generation Intel® Core™ Processor
8th Gen Intel® Core™ CPU &
Intel® Core™ i7-9700TE 1.8GHz (up to 3.8GHz, 8-core, TDP 35W)
Intel® Core™ i5-9500TE 2.2GHz (up to 3.6GHz, 6-core, TDP 35W)
Intel® Q370 ●Display:
1 x HDMI 1.4b (up to 4096 x 2304@30Hz)
1 x DP (up to 4096 x 2304@60Hz)
●4 x USB 3.2 Gen1
●Ethernet:
3 x RJ-45
1 x PCIe GbE by I219 controller
2 x PCIe GbE by I210 controller
●COM Port:
3 x RS-232/422/485 with AFC (DB-9 w/2.5 kV isolation protection)
● Digital I/O:
8 bit Digital I/O (4-input / 4-output)
●Audio:
1 x Mic in, 1 x Line out
●TPM:
1 x TPM 2.0 (2 x 10 pin) (optional)
●M.2:
1 x 2230 A key (PCIe x2/ USB2.0)
2 x 2280 M key (PCIe x2)
●PCIe Mini:
1 x Full-size (PCIe/ USB 2.0/ SATA)
●Backplane:
1 x PCIe by 16
1 x PCIe by 1
2 x PCIe by 4
Industrial Data Collection Server
Four 2.5" drive bays industrial data collection server for factory automation and harsh environment.
CPU
Chipset
I/O
Expansion

IBX-660

Ultrahigh storage capacity embedded system for smart factory and harsh environment
Intel® Atom™ E3845 四核 1.91GHz
SoC
SoC 2 x usb 3.0
2 x usb 2.0
2 x千兆位 RJ-45 以太网端口
1 x HDMI 显示端口(分辨率:支持1080P)
1 x Mic-in
1 x音频输出
1 x全尺寸 PCIe Mini插槽
1 x搭载 SIM 卡插槽
Industrial NAS
4-bay Industrial NAS/NVR for Tough or Mobile Environments
CPU
Chipset
I/O
Expansion

IS-453S

4-bay Industrial NAS/NVR for Tough or Mobile Environments
22nm Intel® Atom™ 四核 1.91GHz
2 x 千兆位 RJ-45 以太网端口
2 x USB 3.0
2 x USB 2.0
1 x HDMI
1 x QNAP UX-500P / UX-800P 扩展单元
