TANGO-3010

超紧凑尺寸

IEI  Compact Size Embedded System TANGO-3010 Right side
IEI  Compact Size Embedded System TANGO-3010 Back

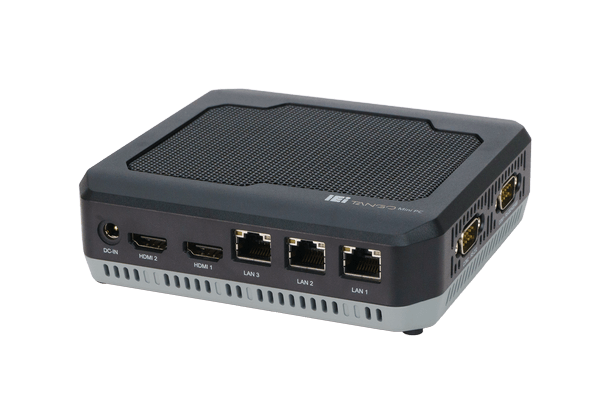

IEI Compact Size Embedded System TANGO-3010 Front
IEI Compact Size Embedded System TANGO-3010 Right

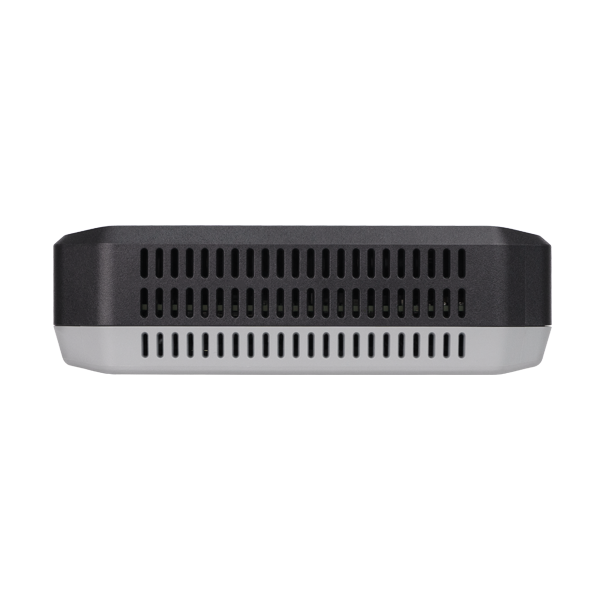

IEI Compact Size Embedded System TANGO-3010 Left
  • IEI  Compact Size Embedded System TANGO-3010 Right side
  • IEI  Compact Size Embedded System TANGO-3010 Back

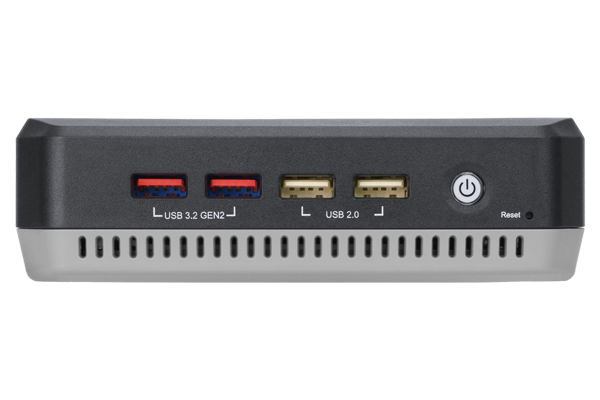

  • IEI Compact Size Embedded System TANGO-3010 Front
  • IEI Compact Size Embedded System TANGO-3010 Right
  • IEI Compact Size Embedded System TANGO-3010 Left
» 超紧凑型工业迷你电脑
» 无风扇系统
» Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, 四核, TDP 10W)
» 3个2.5GbE网络
» 内置Wi-Fi 6E & 蓝牙5.2模块(内置天线)

Next-Generation Industrial Mini PC

Palm-Sized Computer for Business and IIoT Deployments

A hand holding TANGO 3010 palm sized industrial mini PC

The TANGO-3010 is an industrial mini PC with a space-saving chassis. Although it only measures 5.5 x 5.4 x 1.6 inches, the fanless mini PC can accommodate up to one 2.5-inch SSD and one PCIe® Gen3 x4 M.2 NVMe SSD. It is powered by a quad-core Intel® Celeron® J6412 processor with Intel® UHD graphics and on-board 8GB LPDDR4x to handle industrial and commercial tasks with ease. IEI TANGO features three Intel® 2.5 GbE LAN ports along with RS-232/422/485 serial ports to satisfy your industrial communication needs. With light, small but robust chassis ensuring durability and reliability, the mini PC can be set up in an instant and taken almost anywhere, even in harsh environments, making it ideal for enterprise, digital signage, industrial data transmission gateway and self-service applications.

intel logo
Triple 2.5 GbE LAN
Triple 2.5 GbE LAN
RS-232/422/485
RS-232/422/485
4K Dual Display
4K Dual Display
Dual Storage
Dual Storage
2T2R Embedded Antennas
2T2R Embedded Antennas
Compact Design Limited Space Installation
Compact Design Limited Space Installation
Ruggedized Design
Ruggedized Design
VESA-Mountable
VESA-Mountable
intel partner logo

Ready-to-Work, Space-Saving Design for Versatile Deployment

The ultra-compact system can fulfill every business need, from office mini computers that take up less space to industrial edge computing controller at the factory floor. With a TANGO mini PC, you can set up a stand-alone workspace practically anywhere you have power, a display, and Wi-Fi.

TANGO mini PC in video conference
TANGO mini PC used as digital signage player in shopping mall
two persons are using kiosk running by TANGO mini PC
industrial robot arm with TANGO mini PC as a industrial control device
TANGO mini PC placed in industrial control panel as industrial control equipment
TANGO mini PC combined with TV for home entertainment

Get More Power in Less Space

Intel® Quad-Core Processor Burst up to 2.6 GHz

Powered by quad-core Intel® Celeron® J6412 processor with Intel® UHD Graphics, the TANGO-3010 can deliver high levels of CPU and graphics performance at low power. The integrated Intel processor can provide a maximum of up to 2.6 GHz burst frequency and up to 73% improved CPU performance from previous generation. It also takes a huge leap forward in graphics capabilities with Intel® UHD Graphics, having the ability to drive a maximum resolution of 4Kp30 on up to two simultaneous displays.

bar *Source: https://www.passmark.com (2022/10/17)

Intel® Celeron® J6412 (Elkhart Lake) 4C/4T, Burst at 2.6GHz

Intel® Celeron® J3455 (Apollo Lake) 4C/4T, Burst at 2.3GHz

average 73% improved CPU performance

On-board 8GB LPDDR4x Memory

Rugged, Faster Speed, Less Power

8GB dual-channel LPDDR4x soldered memory brings the benefits with faster memory speeds at 4267MT/s, lower voltage and reliable hardware. It reduces the power consumption of the memory system by 18~20% through cutting output driver power by 50%, from 1.2 V to 0.6 V. It takes lesser space on-chip for better system airflow and shorten the trace for better signal transmission. Moreover, the soldered-on-board type enables the mini PC to deliver much more stable, solid operation compared to the socket-type memory for critical usage.

On-board 8GB LPDDR4x Memory

Portable, Space Saving in Compactness

The TANGO-3010 mini industrial PC is very compact in size and light in weight, therefore, it can be placed almost anywhere, and can be VESA-mounted on the back of a display.

a smart phone marked with size 77.8mm by 158mm
TANGO-3010 marked with size 39.8mm by 139mm by 137mm
two blocks with text saying TANGO-3010 is light and slim only 574g and 39.8mm in height

Easily Expandable Storage

TANGO-3010 small form factor PC has several storage options. It has an M.2 2280 SSD that supports up to 1TB. Furthermore, its 2.5-inch SATA drive bay allows for up to 2TB of storage expansion.

Loosen Captive Rear Cover Screws

The four captive fasteners offer a high level of protection against vibrations. The screws will not fall off when loosened and it helps prevent screw missing or misplaced after maintenance.

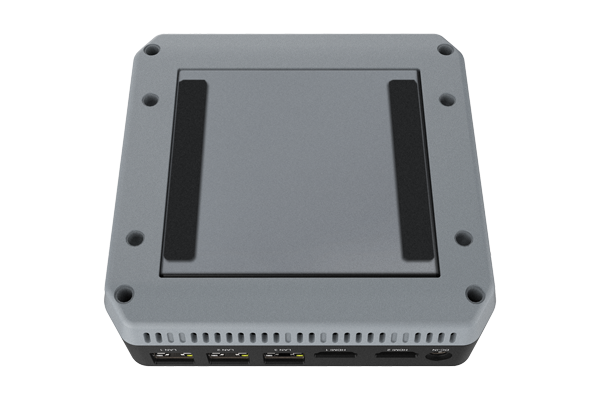

circled four screw holes on the bottom of TANGO-3010 industrial mini pc
PCIe Gen3 NVMe M.2 2280 SSD

An easy-access underside panel allows users to replace and upgrade NVMe SSD. All you need is a screwdriver.

M.2 slot for NVMe SSD on the motherboard inside TANGO-3010 mini pc
Tool-less 2.5'' HDD/SSD Installation

With a simple, intuitive step that requires no tool, the HDD/SSD can be securely installed into the mini PC. The 2.5-inch drive bay supports 5mm to 9.5mm HDD/SSD in height.

installing 2.5-inch SSD into TANGO-3010

Tri-Band Wi-Fi 6E and Bluetooth 5.2
with Embedded Antennas

The mini PC is designed as a Wi-Fi 6E device with strong wireless network capability via a pre-installed Intel wireless network module. The latest Wi-Fi 6E and Bluetooth 5.2 technologies are provided to speed up data transmission through the internal 2T2R antennas, which eliminate cable interference while maintaining stable performance for high volume applications of smart cities.

high-efficiency 2T2R dual-band stamped metal antennas
WiFi 6E 802.11ax supports 2.4G 5G 6G bands
Bluetooth 5.2

Maximize speed, latency, and reliability benefits of WiFi-6E

MU-MIMO

Bluetooth 5.2

With the popularity of IoT device connectivity, the number of devices connected wirelessly by Wi-Fi is increasing dramatically, which will lead to over congestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. The TANGO industrial mini PC adopts the latest Wi-Fi 6E (802.11ax) technology with a new 6GHz channel. Older devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new 6GHz band for network experience improvement.

Maximize speed, latency, and reliability benefits of WiFi-6E

The equipped Intel® AX210 wireless module makes the TANGO carry with advanced OFDMA & MU-MIMO wireless technology to greatly provide connection efficiency and network capacity. MU-MIMO effectively improves signal gain when multiple users are sending and receiving at the same time. It delivers double throughput, from 80 MHz to 160 MHz, ultra-low latency and uninterrupted connectivity.

MU-MIMO connection showing multiple WiFi devices to simultaneously receive data streams
SU-MIMO connection showing only one wifi device can receive data streams at a time

The Bluetooth 5.2 includes Isochronous Channel (ISOC) feature which lays the foundation for the implementation of next generation of Bluetooth Audio – Low Energy Audio. In addition, LE Power Control (LEPC) offered by Bluetooth 5.2 allows the transmitter to adjust its transmission power by itself or can be requested to change its transmission power by a peer device.

One-click device pairing & easier file sharing

One-click device pairing & easier file sharing

Up to 20% less audio power consumption vs. standard Bluetooth

Up to 20% less audio power consumption vs. standard Bluetooth

2x faster speed vs. Bluetooth 4.2

2x faster speed vs. Bluetooth 4.2

Connect multiple devices at a time

Connect multiple devices at a time

3-Side All Inclusive Connectivity

IEI TANGO-3010 is well-equipped for a wide range of functions. This gives TANGO-3010 the versatility to be deployed across a wide range of uses, including digital signage, point-of-sale systems and industrial edge computing systems.

IO panel 1 with two USB 10Gbps two USB 2.0 one power switch

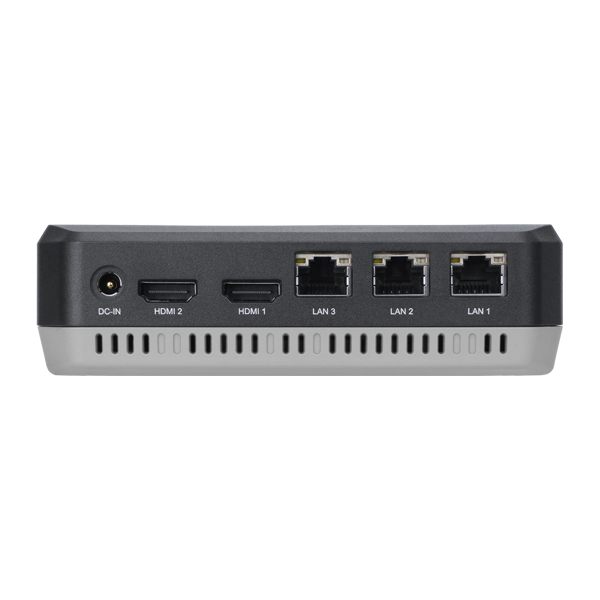

IO panel 2 with 12V DC jack two hdmi three 2.5GbE

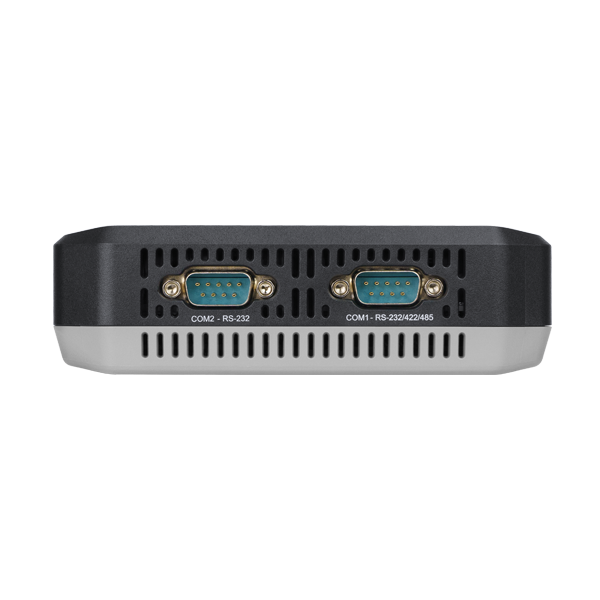

IO panel 3 with two com ports

Triple 2.5GbE Low Latency LAN Ports Boost for Your Applications

The three RJ45 LAN ports all provide 2.5 gigabit Ethernet connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. Benefits of triple 2.5G LAN include

Multi-protocol Fieldbus Communication

With triple LAN port configuration, Industry 4.0 can be realized by using two LAN for operational technology (OT) and one for information technology (IT) to connect more field devices to the digital world of cloud in industrial applications.

Three 2.5G LAN ports on TANGO-3010 mini pc for ethercat canopen protocol communication

Network Redundancy

Network redundancy can be achieved through the addition of alternate network paths, which are implemented through redundant standby routers and switches. When the primary path is unavailable, the alternate path can be instantly deployed to ensure minimal downtime and continuity of network services.

Three 2.5G LAN ports on TANGO-3010 mini pc providing multiple network connections

Multiple Device Connections

More full-speed bandwidth can be provided to handle multiple connections. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of massive IoT devices, high-resolution cameras or sensors to deliver lightning-fast transmission speed between devices.

Three 2.5G LAN ports on mini pc connecting camera sensors production line and network switch
Three 2.5G LAN ports on TANGO-3010 mini pc for ethercat canopen protocol communication
Three 2.5G LAN ports on TANGO-3010 mini pc providing multiple network connections
Three 2.5G LAN ports on mini pc connecting camera sensors production line and network switch

Get Your Office Ready with Compact Software Defined Router

The growing number of connected personal and edge devices has led to an overall increase in network density. The compact TANGO system could be used as a Software Defined Router. We offers a multi-LAN hardware platform allowing to install with firewall/router computer software such as OpenWrt and pfsense OS. It is ideally suited for a wide range of applications, such as SOHO and SMB networking infrastructure.

Three 2.5G LAN ports on mini pc supports AES-NI security, pf sense and openwrt OS

High Definition 4K Dual Screens with Built-in CEC

High Definition 4K Dual Screens with Built-in CEC

Remotely switch on/off mini PC by using HDMI™ monitor's remote control

Remotely switch on/off mini PC by using HDMI™ monitor's remote control

Users can control the TANGO-3010 connected to an HDMI™ display/TV by using the TV remote control. When the user switch on the display/TV, it will be turned on along with the display/TV. With this function, it is easy to control the mini PC that is blocked from receiving IR commands due to its location.

*Only work with the HDMI™-CEC display/TV

Independent dual 4K video playback

Independent dual 4K video playback

Featuring the latest Intel® UHD Graphics with 16 EUs, IEI mini PC provides outstanding 4K dual display via two HDMI™ 1.4b ports for immersive simultaneous visual experiences. It delivers powerful hard decoding capability for you, ensuring no delay on streaming 4K videos.

Ready for Any Scenario

Full-function PC in a small form factor that can mount alongside display or behind a display fits the varying needs of different projects in the field.

TANGO-3010 mini PC mounting on the rear of a monitor by a VESA mount kit
TANGO-3010 mini PC mounting on the wall connecting with TV
TANGO-3010 mini PC putting on the desk of a industrial worker using computer

Fanless Thermal Conductivity and Heat Dissipation at 40°C

The TANGO-3010 has unique cooling features, a new heat sink design for better heat dissipation and more efficient conductivity. This enhances two-dimensional heat conduction and reduces flow impedance for better heat dissipation in this fan-less system.

IEI thermal optimization technology provides valuable feasibility studies prior to the building of prototypes, assisting with the placement of optimized components and the design of heatsink pattern, thermal interface materials, as well as air flow and ventilation locations.

heatsink of TANGO-3010 using IEI thermal optimization technology

Proven Ruggedness

Warranty and Longevity Built

Unlike consumer grade, we provide a two-year warranty and at least three-year guaranteed life cycle that reduces equipment building costs accrued by maintenance and upgrade. Moreover, extended warranty is available for purchase.

24/7 Operation

Built for 24/7 operation, TANGO is durable and high-performance for commercial and industrial use cases.

High Vibration/Shock Tolerance

MIL-STD-810G compliance for shock and vibration tolerance, TANGO can withstand hours of extreme vibration to deliver stable operation during transport and ideal for in-vehicle application.

Proven Ruggedness
TANGO-3010 testing for shock and vibration tolerance
TANGO-3010 with package on drop test equipment
TANGO-3010 in chamber taking temperature humidity cycle test
TANGO-3010 with two monitors
TANGO-3010 on a desk with multiple ports connected

Dimensions

Dimensions

Related Products

DRPC-240
DRPC-240

Fanless DIN-Rail Embedded System with 11th Gen Intel® Core™ Processor (Tiger Lake, up to 4 cores)

DRPC-W-EHL
DRPC-W-EHL

Fanless DIN-Rail Embedded System with Intel® Celeron® Processor (Elkhart Lake, up to 4 cores)

DRPC-W-JL
DRPC-W-JL

Fanless DIN-Rail Embedded System with Intel® Celeron® Processor (Jasper Lake, up to 4 cores)


Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Celeron J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W)
  • 芯片组:
    SOC
  • 系统内存:
    板载LPDDR4X 8GB (最大支持到16G)
  • 电源:
    直流插孔: 12V 直流
    功耗: +12V@2.95A (Intel® Celeron J6412 带8GB内存)
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen2
    2 x USB 2.0
  • 网络:
    3 x RJ-45 2.5 GbE by I225V controller
  • 显示:
    2 x HDMI™
  • 串口:
    1 x RS-232 (DB9)
    1 x RS-232/422/485 (DB9)
  • TPM:
    支持Intel PTT
  • 无线/蓝牙:
    INTEL AX210 WiFi 6E &蓝牙5.2模块带 2T2R天线
  • 看门狗定时器:
    可编程1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe x1/USB2.0)(预装无线模块)
    1 x 2280 M-key (PCIe x4)
System
Cooling method / System Fan 无风扇
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
(最大支持到9毫米厚度硬盘)
Indicator&Buttons
Buttons 1 x 电源开关(带灯)
1 x 复位开关
Indicators 1 x 电源灯
1 x 硬盘灯
Physical Characteristics
Construction ABS 塑胶+ 铝合金
Color
Color 黑&灰(Pantone 430C)
Dimensions
Dimensions 139 x 137 x 39.8 (mm)
Weight
Weight 0.57/1.35 kg
Environment
工作温度 0°C ~ 40°C 带0.7M/S 风流 (SSD)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
安规&电磁 符合CE/RED/FCC/UKCA 认证
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

TANGO-3010-JWC-R10 Fanless System with Intel® Celeron® J6412 2.6 GHz (up to 2.6 GHz, quad core, TDP 10W), 8GB onboard memory, 3 x 2.5GbE LAN, 2 x HDMI™, 4 x USB, 12V DC, Wifi-6E, RoHS

Package Contents

Package Content
  • 1 x 安装螺丝

  • 1 x VESA 安装套件

  • 1 x 适配器

  • 1 x 电源线
