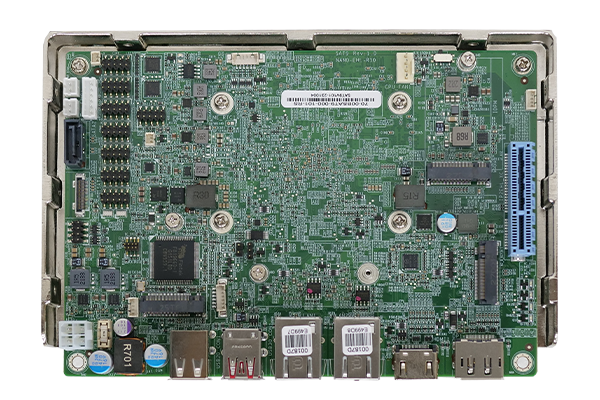

EPIC SBC支持Intel® Celeron®板载SoC,板载8GB LPDDR4x内存,具有DP、HDMI™、iDPM、M.2 A key、M.2 Bkey、USB 3.1、SATA 6Gb/s、COM、iAUDIO、PCIe x4( x2 信号)用于riser card,RoHS。

NANO-EHL Left Side
NANO-EHL Right Side

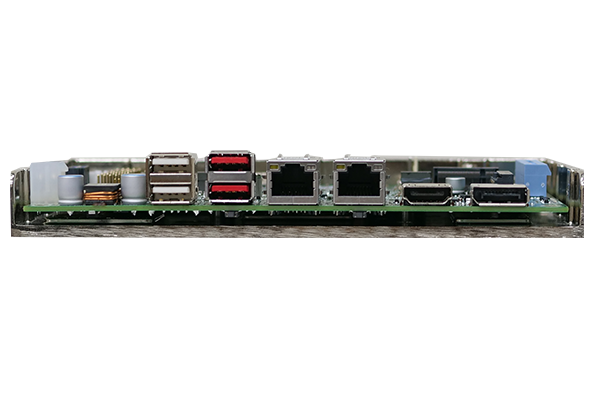

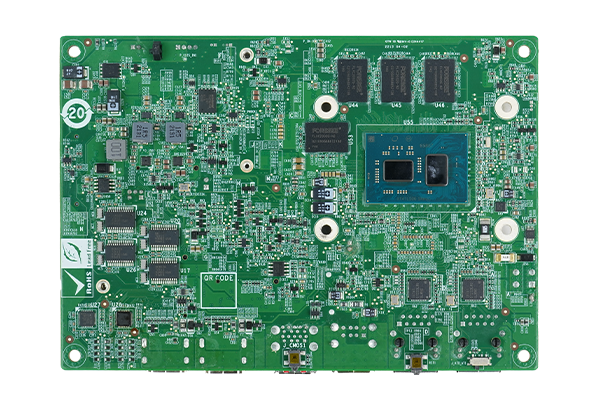

  • NANO-EHL Back

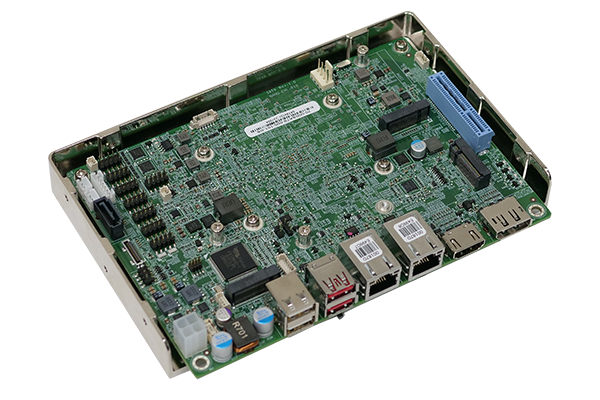

  • NANO-EHL Left Side

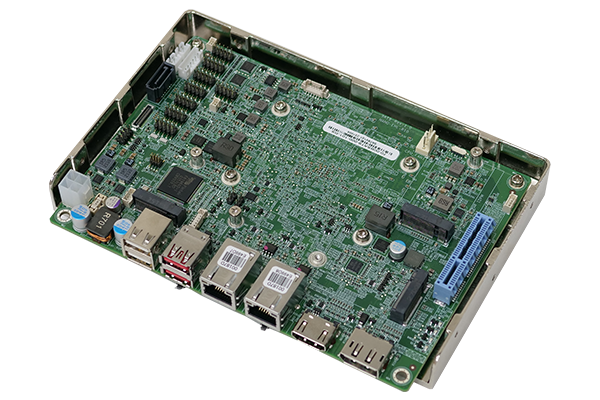

  • NANO-EHL Right Side
» 支持 Intel® Atom™ x6000 series / Pentium® / Celeron® 处理器 (Elkhart Lake平台)
» 支持双 Intel® I225V 2.5GbE 以太网控制器
» 通过DP﹑HDMI™和iDPM支持独立三显
» 支持1个PCIe Gen3 x4﹑1个M.2 A Key和1个M.2 B key扩展.
» 支持两个USB 3.2 Gen 2﹑四个USB 2.0﹑4个 RS-232﹑两个 RS-232/422/485




Quad-Core Intel® Celeron® Processor J6412

Experience an Astonishing 3.5x Performance Boost Compared to the Previous Generation - NANO-AL! Double the Cores and Threads for Unmatched Power! IEI NANO-EHL is a motherboard powered by Intel® Celeron® J6412 on-board SoC, supporting up to 2.6GHz, quad-core, 1.5M cache and TDP 10W. The processor of IEI NANO-EHL builds on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

8GB LPDDR4X On-Board Memory

The NANO-EHL is equipped with robust 8GB LPDDR4x on-board memory, widely utilized for applications in high-vibration and shock-prone environments. With onboard memory, it offers flexible space utilization, enhanced reliability, and mitigates issues related to memory poor contact, making it particularly well-suited for industrial applications.

PCIe x4 Expansion Allows
Extensive I/O and Function Expansion

Experience the power of the NANO-EHL, a compact 4" single board computer with a high-speed PCIe x4 (x2 signal) slot. Easily integrate PoE, video capture, or I/O cards with a compatible riser card and unlock a world of expanded functionality. The NANO-EHL delivers exceptional performance and reliability for a wide range of applications.

Enhanced Stability and Easy Installation

Moreover, both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.

Triple Independent Displays with Up to 4K Resolution

Featuring Intel® UHD Graphics with a maximum of 16 execution units (EUs), this SBC offers superior graphics capabilities, enabling smooth and immersive visual experiences. Whether you are running graphics-intensive applications or demanding multimedia content, this SBC delivers outstanding performance. Furthermore, the NANO-EHL is capable of supporting a maximum resolution of 4kp60 across three simultaneous displays through HDMI 1.4 (up to 4096 x 2160@30Hz), DP 1.4 (up to 4096 x 2160@60Hz), and the optional iDPM module.

Well-Design Thermal Solution

IEI has developed a highly efficient thermal solution for the 4" SBC - the IEI Heat Conduction Casing (IHCC). The IHCC effectively enhances heat transfer performance by targeting the primary heat source, thus eliminating the need for designing a separate heat spreader.
The IHCC consists of a casing and a heat conduction block that securely fits over the key components where the major heat is generated, ensuring optimal heat transfer.

Diverse Mounting Options

With its well-design thermal casing, NANO-EHL provides complete 9 holes on three sides. It can be installed on a control cabinet's rear panel, door, or onto a DIN rail. And it is easy to install additional thermal module for operating under high ambient temperatures.

Embedded System

Electrical Cabinet

Embedded System
Electrical Cabinet

Dual Low-Latency 2.5G LAN Powered by Intel

2.5 GbE supports various connection speeds between 100 Mbps and 2.5 Gbps on Cat6 and Cat 5e cables, which means user can experience the full capability of high-performance network solutions without significant costs for upgrading cables.



M.2 Expansion for WiFi and NVMe Storage

M.2 2230 A Key for Wi-Fi/Bluetooth

The M.2 2230 A key slot carrying with PCIe GEN3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

M.2 2230 A Key

M.2 2242/2280 B Key Slot for NVMe Storage

With the M.2 2242/2280 B Key slot, you can easily install NVMe storage devices, allowing for fast data access, improved performance, and efficient data management.

M.2 2242/2280 B Key

M.2 2230 A Key

M.2 2242/2280 B Key

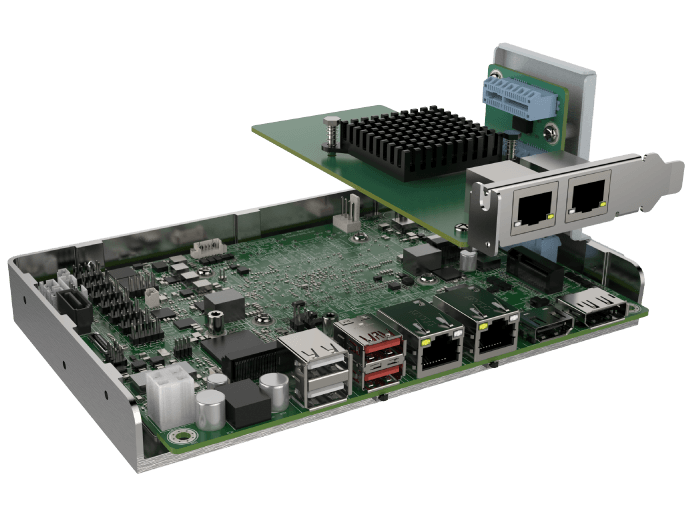

SBC with Outwards-facing
Riser Card (NWR-R2S-N)

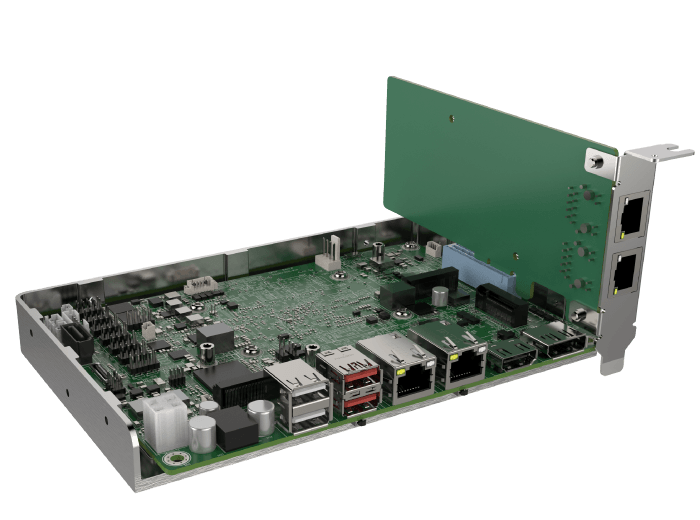

SBC with Inwards-facing
nan Riser Card (NWR-L2S-N)

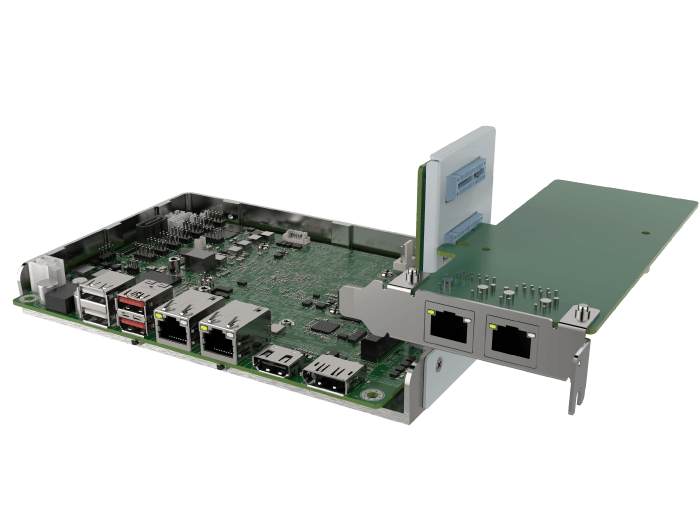

SBC with Outwards-facing Riser Card (R2S)
SBC with Outwards-facing Riser Card (R4S)

Hardware Spec.

尺寸类型 EPIC
CPU 板载 Intel® Atom™ x6000 系列 Celeron® 处理器 (Elkhart Lake 平台)
Intel® Celeron® J6412 板载 SoC (支持高达 2.6GH,四核,1.5M 缓存,TDP=10W)
内存 LPDDR4x-3200Gbps 8GB,内存上限 16GB
内存上限 16GB
尺寸 (LxWxH) (mm) 165mm x 115mm
净重 350g
存储 2 x SATA -
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
I/O 接口
显示输出 1 x HDMI™ : 高达 4096 x 2160 @30Hz
1 x DP++ : 高达 4096 x 2160 @60Hz
1 x iDPM : 支持iEi eDP/ LVDS/ VGA 模块
网络 2 x LAN -
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
音频 1 x HD Audio : 1 x iAUDIO(2 x 5 pin, 支持 IEI AC-KIT-888HD 音频模块)
I/O接口 4 x 内部RS-232 : 2x5 pin, P=2.0
2 x 内部RS-232/422/485 : 2x5 pin, P=2.0
2 x 外部 USB 2.0 : Type A
2 x 内部 USB 2.0 : 2x4 pin, P=2.0
2 x 外部 USB 3.2 Gen2x1 : 10Gb/s(Type A)
扩展 1 x PCIe x4 : PCIe Gen3 x4 (x2 signal)
2 x M.2(NGFF) -
1 x M.2 B Key (2242/2280) PCIe Gen3 x2&USB2.0
1 x M.2 A Key (2230) PCIe Gen3 x1/USB2.0
电源功耗 12V@2.75A
(Intel® Celeron® J6412 CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode disabled)
电源供电 1 x 内部电源接口 (2x2 pin)
符合 ErP/EuP
操作温度 0°C~60°C
存储温度 -20°C~70°C
Humidity 5% ~95%, 无冷凝

Ordering Information

NANO-EHL-J6412C-R10 EPIC SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI™,iDPM,M.2 A key,M.2 M key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, Iaudio,PCIe x2 for riser card and RoHS

Package Contents

Package Content
  • 1 x NANO-EHL 单板电脑

  • 1 x SATA 线

  • 1 x iSATA 线

  • 1 x Power 线

  • 1 x QIG
