Consolidate Your Wireless Network Connectivity

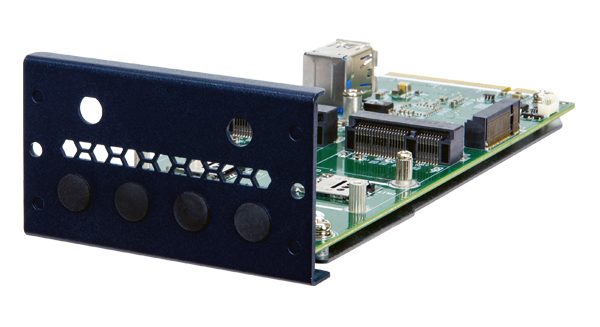

IEI PulM-2P1M is designed with two PCIe Mini slots and one M.2 B-key for supporting extra Wi-Fi or LTE modules. It can enhance wireless network connectivity and provide multi-telecom signal via one single network appliance.
-
Supports two PCIe Mini slots and one M.2 2230/2242 B–key slot
-
On-board SIM card slots for PCIe Mini/M.2 network modules
-
2 PCIe 3.0 x4

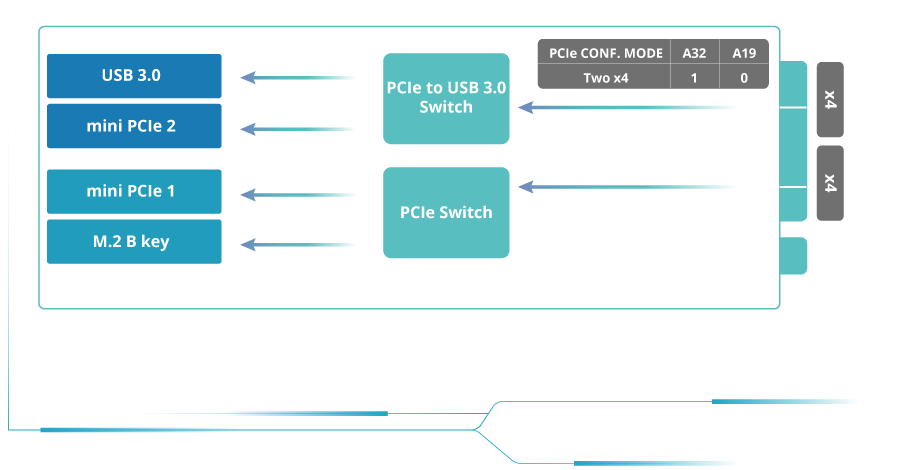

Block Diagram
Hardware Installation
The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-2P1M can be installed into the slot A & slot B.
-
Supported devices: PUZZLE-IN001 , PUZZLE-IN001A , PUZZLE-IN004 , PUZZLE-A001 , PUZZLE-A001A , PUZZLE-IN005
Hardware Spec.
Physical Characteristics | |
---|---|
Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
Storage | |
Storage | M.2(NGFF) : 1 x M.2(NGFF) 3042/2260 M.2 B key (PCIe/USB2.0(for LTE)/USB3.0) |
I/O Interface | |
Expansion | PCI Slot : 2 x mPCIe (PCIe/USB2.0) |
Wireless | |
SIM Slot | 4 x SIM card slot |
Environment | |
Operating Temperature | 0 ~ 40 °C |
Humidity | 5% ~ 90% RH, Non-condensing |
Card Slot Interface | |
PCIe | 2 PCIe 3.0 x4 |
Card Features | |
Controller Chip |
ASM1812 (PCIe Gen2x4 ) FL1100EX (PCI-E To USB 3.0 (4 Port)) |
Ordering Information
PulM-2P1M-R10 | Two Mini-PCIe and One M.2 Expansion Card Support the Wi-Fi or LTE Module. |
---|
Package Contents
Package Content |
|
---|
